RLC-511

Reliable 5MP PoE Camera Protects You Inside & Out

4X Optical Zoom
Power over Ethernet
100ft Night Vision*
IP66 Waterproof

5 Megapixels Super HD: Clearer Images & More Details

The higher the camera resolution is, the more image details you’ll obtain. RLC-511 PoE security IP camera prides in the high resolution of 2560x1920, which is about 2.4X the resolution of 1080p, and even 1.3X the resolution of 1440p Super HD. It ensures true-color images with vivid details.

The video shared by Météo P., a Reolink customer.

4X Optical Zoom for More Visibility

This bullet PoE security camera features a motorized varifocal lens that makes for the viewing angle of 31°~90°*. Thanks to the 4X optical zoom, you can zoom in on a small area in astonishing details or zoom out for maximum coverage, without reducing the image resolution or quality.

31°-90°

Viewing angle*

2.7 mm - 12 mm

Motorized lens

31°-90°

Viewing angle*

2.7 mm - 12 mm

Motorized lens

Smart Motion Detection & Intelligent Alerts

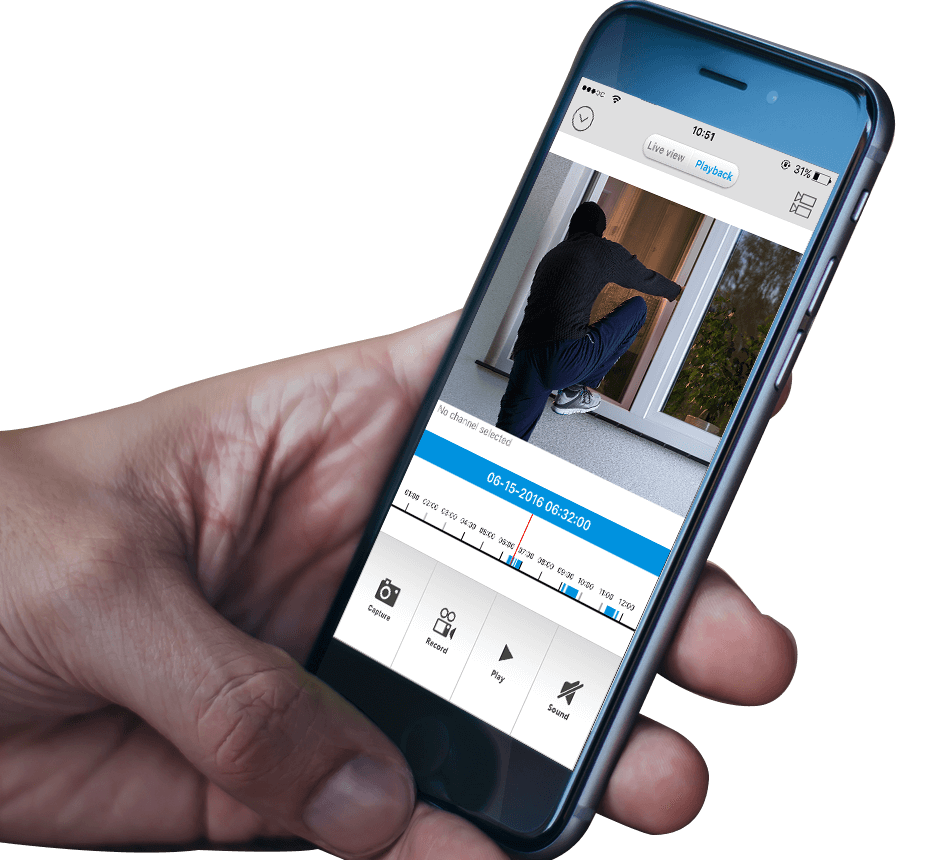

Reolink RLC-511 PoE IP camera stands guard keenly day and night. Whenever motion is detected, it will send you instant push notifications, email photos and video clips, enabling you to see in real-time what’s happening and take responsive action.

You can also customize specific motion zones or detection sensitivity to receive the wanted alerts and avoid the unwanted.

kit-email kit-app kit-ftp kit-sdKard

Email

Email photos
or 30-second video clips

App

Push notifications to your
mobile device

FTP

Save and upload captured images
& videos to an FTP server

SD Card (Optional)

Record motion events to the SD card you inserted (up to 128GB)

PoE – Faster, Simplified & Lower-Cost Installation

Save your time and cost with a simple setup process! With Power over Ethernet (PoE), this outdoor bullet security camera can transmit videos and get power via only one network cable. As a result, the camera installation can be accomplished quickly and painlessly at lower cost.

Remote Access Lets You Be There, Even You're Not

Distance should never be a problem, especially for your security. Remote access makes it a reality for you to watch live viewing videos and monitor your property without actually being there. You can view this surveillance camera remotely via free Reolink App, free Reolink Client, and web browsers (Google Chrome, Microsoft Edge, Safari, Firefox, etc.).

reolink forios reolink forandroid Download for macOS Download for Windows reolink forsupport-articles

3 Easy Steps for Successful Remote Viewing on Phones

  • 1

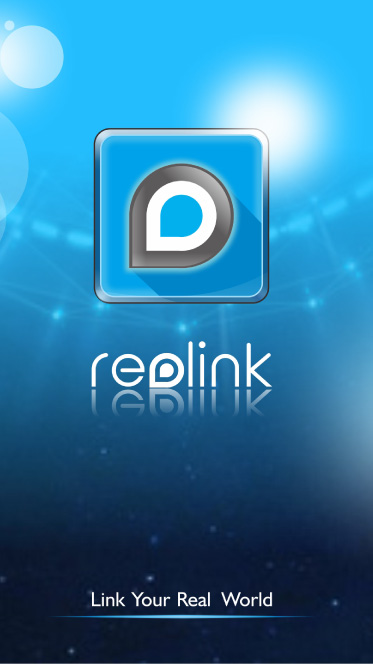

    Install App

    Install the free App on your smartphone

  • 2

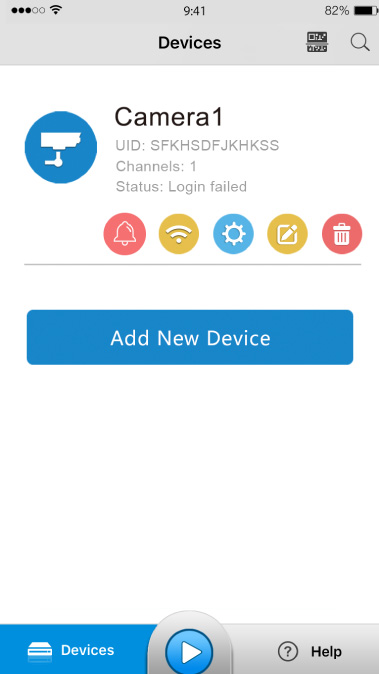

    Scan

    Scan to automatically add the Reolink IP camera

  • 3

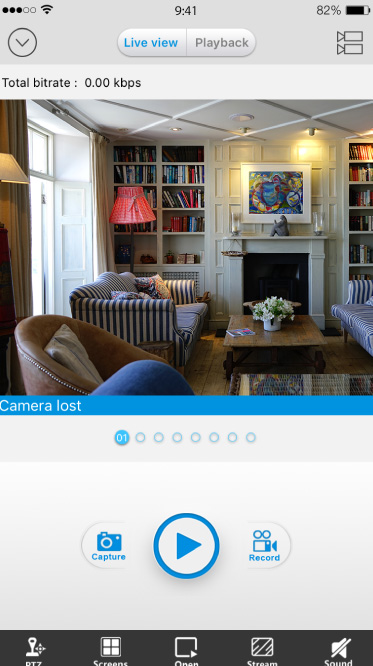

    View Camera

    Click the network camera to get the live view

Clear and Long-Distance Night View

Relying on the 24pcs infrared LEDs and advanced IR technology, this 5MP outdoor PoE IP camera features a night vision range of up to 100 feet. Clearer night vision also offers you the best chance to pinpoint small details, even in total darkness.

24 pcs

Infrared LEDs

100 feet

Night vision*

31°-90°

Viewing angle*

Waterproof Enough for Anywhere Outside

Feel free to put RLC-511 PoE video surveillance camera anywhere, outdoors and indoors! With IP66 waterproof rating, this outdoor security camera will never shrink back in front of the elements, like freezing rain, heavy snow, extreme cold and heat.

Feel free to put RLC-511 PoE video surveillance camera anywhere, outdoors and indoors! With IP66 waterproof rating, this outdoor security camera will never shrink back in front of the elements, like freezing rain, heavy snow, extreme cold and heat.

IP66 Certified Weatherproof

24/7 or Motion Recording, You Decide

This IP camera supports both motion-activated recording and continuous recording. 24/7 recording is ideal in high-traffic areas like store entrances, while in lower activity regions like warehouses or at night, motion recording can help you save storage space.

Motion Clips in microSD Card

Supports up to 128GB microSD card (not included).

12.1
hours

32GB

24.2
hours

64GB

48.5
hours

128GB

Figure based on the default bit rate of the cam (6144 kbps). Actual recording time depends on the settings. Results may vary. Learn more

Continuous Recording

This 5MP PoE security camera can record continuously when you connect the cam to a Reolink NVR or video surveillance system, or set up FTP server to save videos without missing a beat.

• FTP server

• Reolink NVR

* When you plan to buy an NVR, recommended to use Reolink NVR for best compatibility.

Free Firmware Update — Easy, Quick and Flexible

Reolink firmware update for IP security cameras is very easy – download firmware on the firmware page and update the firmware on the client software. All is free! Learn more

Comparison

*Data based on internal lab testing.
Comparison

Comparison

What's in the Box What’s in the Box & Setup Guide (with Video) What's in the Box

*The data on the pages above are obtained under specific test conditions. Actual use may vary.

Specifications

Camera

Image Sensor

1/2.7" CMOS Sensor

Effective Pixels

2560 x 1920 (5.0 Megapixels)

Lens

f=2.7-12mm Auto-focus, F=1.6

Optical Zoom

4X

Angle of View

Horizontal: 90° ~ 31°, Vertical: 67° ~ 24°

Day/Night Mode

Auto-switching with IR-cut filter

Min. Illumination

0 Lux (With IR Illuminator)

IR Distance

30 Meters (100ft) (LED: 24pcs/14mil/850nm)

Backlight Compensation

Support

Noise Reduction

3D DNR

Video

Compression

H.264

Resolution

Main Stream: 2560x1920, 2560x1440, 2048x1536, 2304x1296; Sub Stream: 640 x 480

Bitrate

Main Stream: 1024Kbps ~ 8192Kbps, Sub Stream: 64Kbps ~ 512Kbps

Frame Rate

Main Stream@30fps, Sub Stream@7fps

Audio

Interface

Built-in Microphone

Network

Interface

One 10M/100Mbps RJ45

Network Protocol

HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Browser Supported

Edge, Chrome, Firefox, Safari

OS Supported

PC: Windows, Mac OS; Smartphone: iOS, Android

Max. User Access

20 Users (1 admin account & 19 user accounts); Support up to
12 simultaneous video streams (10 substreams & 2 mainstreams)

Storage

microSD card slot (Max. 128GB)

General

Power Supply

DC12V & PoE (IEEE 802.3af)

Power Consumption

<12W

Working Environment

-10℃~+55℃ (14°F~131°F), 10%~90%

Ingress Protection

IP66

Dimensions

80 x 72 x 238mm

Weight

750g

Warranty

Limited Warranty

2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/

The above data are provided by internal laboratories, and are obtained under specific test conditions. Actual use may vary due to settings, use conditions and environmental factors.
