reolink-argus

RLC-422 5MP/4MP PoE Security IP Camera

5MP/4MP Super HD, Easy PoE
4X Optical Zoom

IK10 Vandal Proof

Power over Ethernet

IP66 Waterproof

Motion Detection

Super HD: 5 Megapixels and 4 Megapixels

There are 2 versions for you to choose:
5MP RLC-422 with a pixel resolution of 3072x1728, that is, 4.5X the resolution of 1080p Full HD, and even 1.4X the resolution of 1440p Super HD. You will definitely have the best chance to see every image detail as you wish.
4MP RLC-422 with 2560x1440 high resolution to bring you clearer live video streaming and sharper video clips than 720p and 1080p cameras. No details will be missed!

Impressive 4X Optical Zoom

RLC-422 dome IP camera outdoor features auto focus lens, along with the viewing angle varying from 33°~98°. With 4X optical zoom, you can zoom in to see more details of far-away objects without getting closer, or zoom out to get a wider and larger view. The 4X optical zoom security camera never compromises in image and video quality (5MP/4MP).

33°~98°

Viewing angle

2.7mm-12mm

Motorized lens

33°~98°

Viewing angle

2.7mm-12mm

Motorized lens

Good Night Vision, for Peace of Mind at Night

24pcs infrared LEDs and advanced IR technology make Reolink RLC-422 an excellent night vision security camera, letting you see any event clearly even in the dark. With a long night vision distance up to 100 feet, you can accurately identify people present in the event through videos captured by RLC-422 video surveillance camera.

24 pcs

Infrared LEDs

100 feet

Night vision

33°-98°

Viewing angle

Motion Detection Lets You Never Miss a Thing

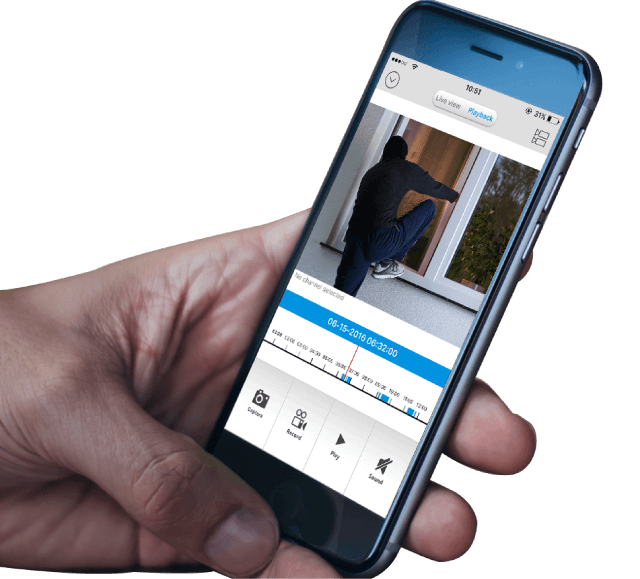

Reolink RLC-422 surveillance camera can trigger alerts when something emergency is detected. Whenever an invasion happens, the camera will:

Send alert emails and push notifications.

Upload videos and images to an FTP Server. Protect your home and business from burglars and intruders without effort!

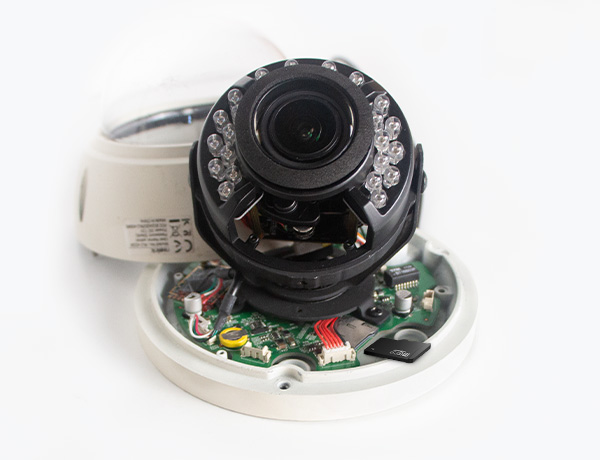

Record and save motion-detected videos to your inserted Micro SD card (can be up to 64GB), or your Reolink NVR.

kit-email kit-app kit-ftp

Email

Email photos or
30-second video clips

App

Push notifications to
your mobile device

FTP

Save and upload captured images & videos to an FTP server

kit-email kit-app kit-ftp

On the Motion Detect Setup interface, you can feel free to:

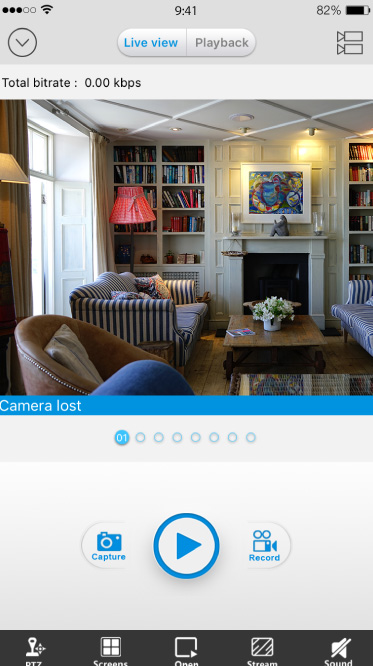

Remote Access Lets You Stay Informed Wherever

Wherever you are, you can remotely access RLC-422 network IP camera to get live streaming, and stay aware of your home and business in three ways:

Free Reolink App

Free Reolink Client

Browsers

Installation Made Easy with PoE Available

Traditional security cameras without PoE supported will need an electrical cable and a network cable, while Reolink RLC-422 PoE IP security camera only needs one network cable used for both video and power transmission. RLC-422 HD home surveillance camera is a complete DIY style, which has simpler setup and installation with zero configurations.

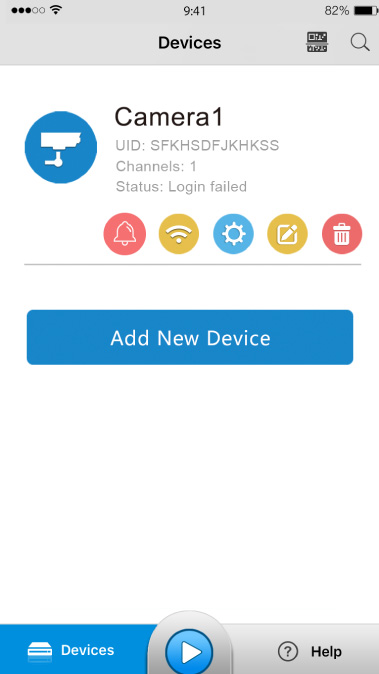

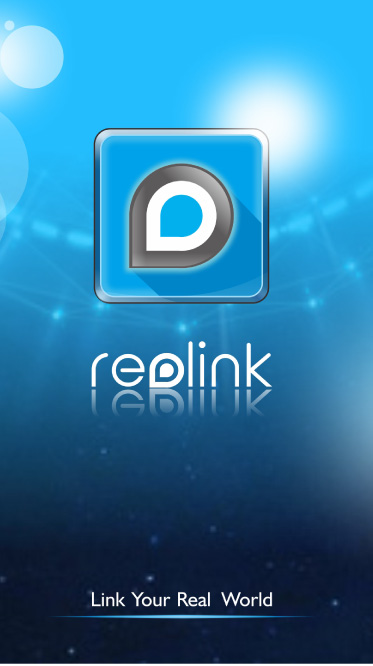

Remote Viewing Can Be Realized in 3 Simple Steps

  • 1

    Install App

    Install the free App on your smartphone

  • 2

    Scan

    Scan to automatically add Reolink IP camera

  • 3

    View Camera

    Click the network camera to get the live view

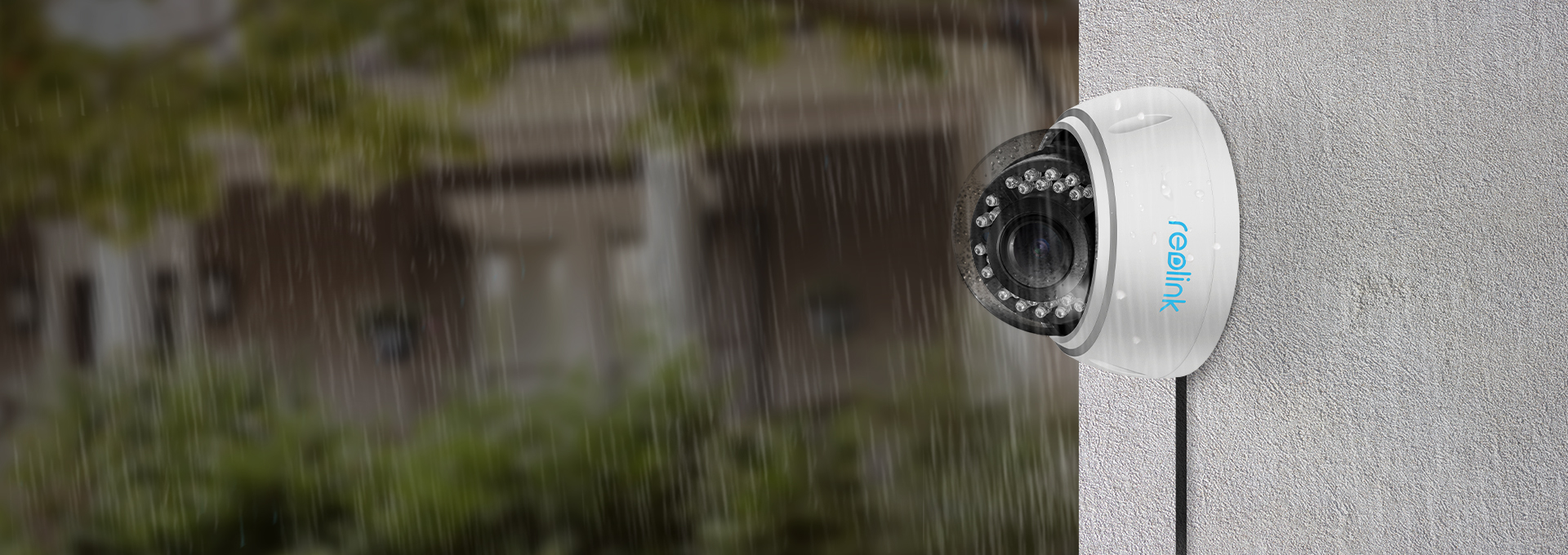

Waterproof & Vandal-Proof
for Outdoor Use

One of the best outdoor security cameras ever, with IP66 waterproof IP rating and IK10 vandal resistant rating! RLC-422 can withstand external mechanical impact, and work perfectly even in bad weather.

Work with NVR for 24/7 Reliable Recording

If you have multiple IP cameras or if you want 24/7 recording, a Reolink NVR is your best choice. The NVR works perfectly and efficiently with the cameras for round-the-clock monitoring and recording for your home & business security and surveillance.

Free Firmware Update — Easy, Quick and Flexible

Reolink firmware update for IP security cameras is very easy – download firmware on the firmware page and update the firmware on the client software. All is free! Learn More >

What's in the Box

x1

RLC-422 IP Camera

x1

Waterproof Lid

x1

1M Network Cable

x1

Screws

x1

CD (Manual/Software)

x1

Quick Start Guide

x1

Surveillance Card

x1

Mounting Hole Template

Specification

Download Specifications Download as PDF

Camera Specifications

Camera

Model

RLC-422 (5MP Version)

Image Sensor 1/2.9" CMOS Sensor
Effective Pixels 3072 x 1728 (5.0 Megapixel)
Lens f=2.7-12mm Auto-focus, F=1.6
Angle of View Horizontal: 98° ~ 33°, Vertical: 54° ~ 22°
Day/Night Mode Auto Switchover
Min. Illumination 0 Lux (With IR Illuminator)
IR Distance 30 Meters
Backlight Compensation Support
Noise Reduction 3D DNR
Video Specifications

Video

Compression H.264
Resolution Main Stream: 3072 x 1728, 2592 x 1944, 2560 x 1440, 2048 x 1536, 2304 x 1296; Sub Stream: 640 x 360
Bitrate Main Stream: 1024Kbps ~ 8192Kbps, Sub Stream: 64Kbps ~ 512Kbps
Frame Rate PAL: Main Stream@20fps, Sub Stream@12fps; NTSC: Main Stream@20fps, Sub Stream@15fps
Network Specifications

Network

Interface One 10M/100Mbps RJ45
Network Protocol HTTPS, SSL, TCP/IP, UDP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, FTP, ONVIF, P2P
Browser Supported IE, Edge, Chrome, Firefox, Safari
OS Supported PC: Windows, Mac OS; Smart Phone: iOS, Android
Max. User Access 20 Users
General Specifications

General

Power Supply DC 12V & PoE 48V (IEEE 802.3af)
Power Consumption <10W
Working Environment -10℃~+55℃ (14°F~131°F), 10%~90%
Ingress Protection IP66
Dimensions Φ133 x 100mm
Weight 720g

Download Specifications Download as PDF

Camera Specifications

Camera

Model

RLC-422 (4MP Version)

Image Sensor 1/3" CMOS Sensor
Effective Pixels 2560 x 1440 (4.0 Megapixel)
Lens f=2.8-12mm Auto-focus, F=1.4
Angle of View Horizontal: 35° ~ 95°, Vertical: 20° ~ 50°
Day/Night Mode Auto Switchover
Min. Illumination 0 Lux (With IR Illuminator)
IR Distance 30 Meters
Backlight Compensation Support
Noise Reduction 3D DNR
Video Specifications

Video

Compression H.264
Resolution Main Stream: 2560 x 1440, 2048 x 1536, 2304 x 1296, 1080P, 720P; Sub Stream: 640 x 360
Bitrate Main Stream: 1024Kbps ~ 8192Kbps, Sub Stream: 64Kbps ~ 512Kbps
Frame Rate PAL: Main Stream@25fps, Sub Stream@12fps; NTSC: Main Stream@30fps, Sub Stream@15fps
Network Specifications

Network

Interface One 10M/100Mbps RJ45
Network Protocol HTTPS, SSL, TCP/IP, UDP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, FTP, ONVIF, P2P
Browser Supported IE, Edge, Chrome, Firefox, Safari
OS Supported PC: Windows, Mac OS; Smart Phone: iOS, Android
Max. User Access 20 Users
General Specifications

General

Power Supply 12V DC or 48V POE(802.3af).
Power Consumption <10W
Working Environment -10℃~+55℃ (14°F~131°F), 10%~90%
Ingress Protection IP66
Dimensions Φ133 x 100mm
Weight 720g

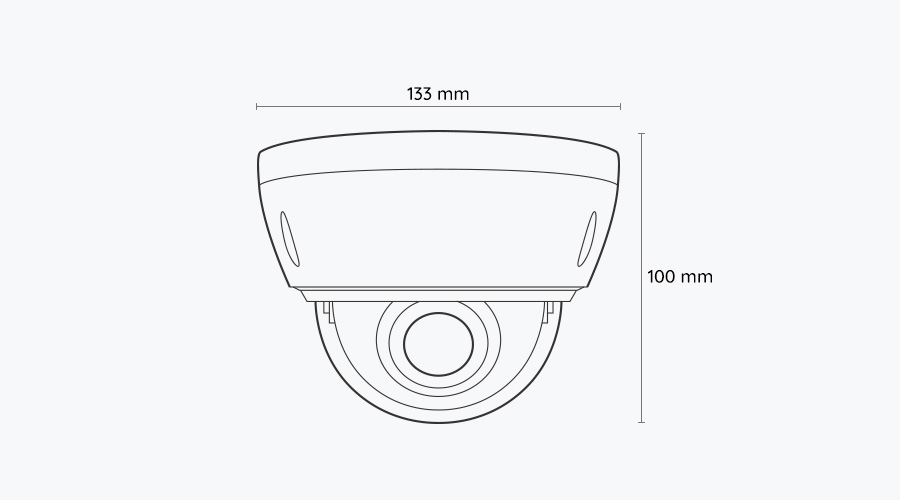

Diagram
