RLC-410W

4MP Dual-Band WiFi Security Camera

2.4/5 GHz WiFi
Audio Recording
IP66 Waterproof
Person/Vehicle Detection

Smart Guard for Smart Protection

Thanks to the intelligent detection algorithm, RLC-410W can not only promptly detect movements, but also distinguish people and vehicles from other objects and sent you relevant alerts. No subscription is needed.

Thanks to the intelligent detection algorithm, RLC-410W can not only promptly detect movements, but also distinguish people and vehicles from other objects and sent you relevant alerts. No subscription is needed.

Person/Vehicle Detection Accurate Alerts Without Subscription

4 Megapixels Super HD

RLC-410W with 2560x1440 high resolution captures more beautiful and smoother 4-megapixel live video streaming and clips than 720p and 1080p cameras. It sees your home security more clearly. No details will be missed!

The video shared by Darryl M., a Reolink customer.

Dual-Band WiFi Stronger Network Signals

Reolink wireless cameras are the first dual-band WiFi security cameras in the world, with 2.4 GHz band and 5 GHz band available, and 2T2R MIMO antennas. You will never worry about network off-line.

2.4 GHz

5 GHz

Dual-band WiFi

2T2R

MIMO antennas

Wireless

Can be easily installed indoor and outdoor your house. No messy cabling.

2.4 GHz band and 5 GHz band

More options available, and guarantee that you never suffer from signal loss and interference.

2T2R MIMO antennas

Stronger network signals, even in up to 164 feet long distance (in open areas).

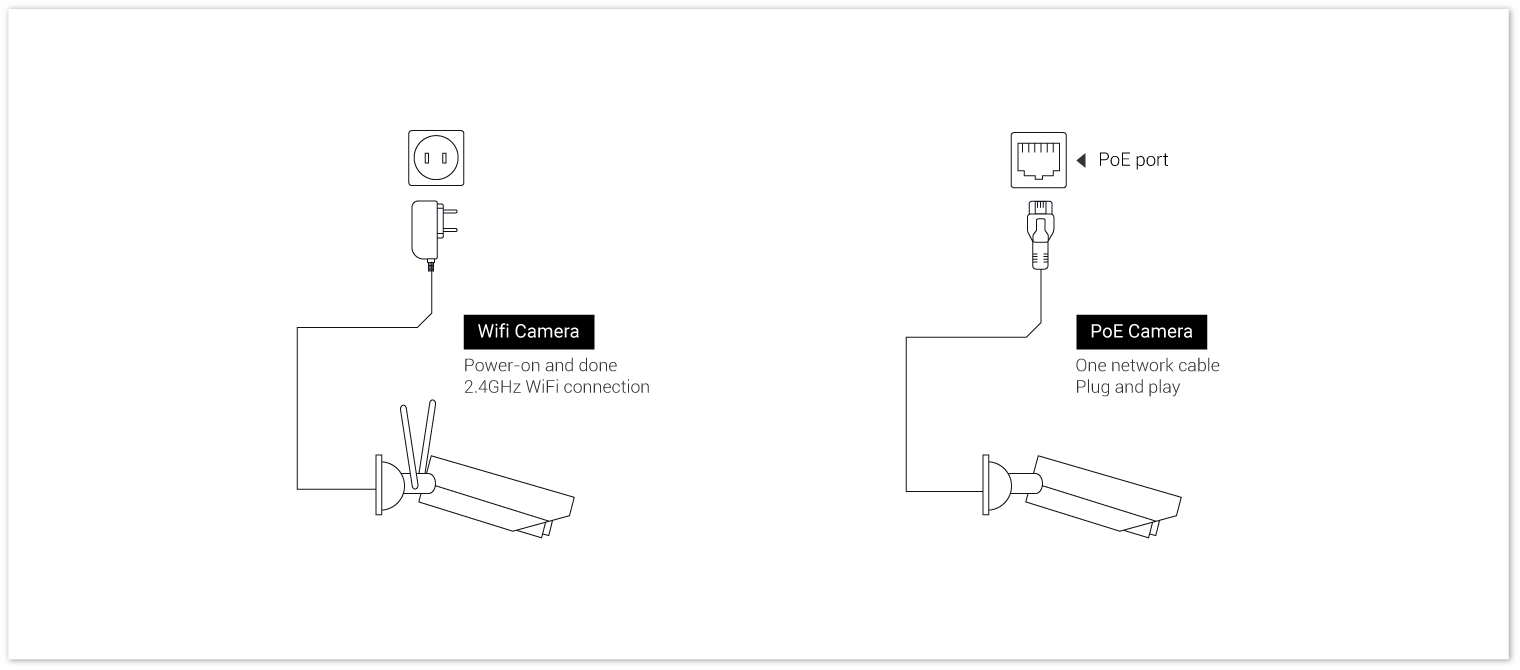

Compare with the PoE Camera

Smart Motion Alerts Let You Never Miss What Matters

Detect any potential danger, by sending real-time email alerts and pushing notifications to your mobile device.

Upload and save captured images and videos to an FTP server and the microSD card you inserted into the cam.

Adjust motion detection sensitivity and create specific motion detecting zones as you like.

kit-email kit-app kit-ftp kit-sdKard

Email

Email photos or
30-second video clips

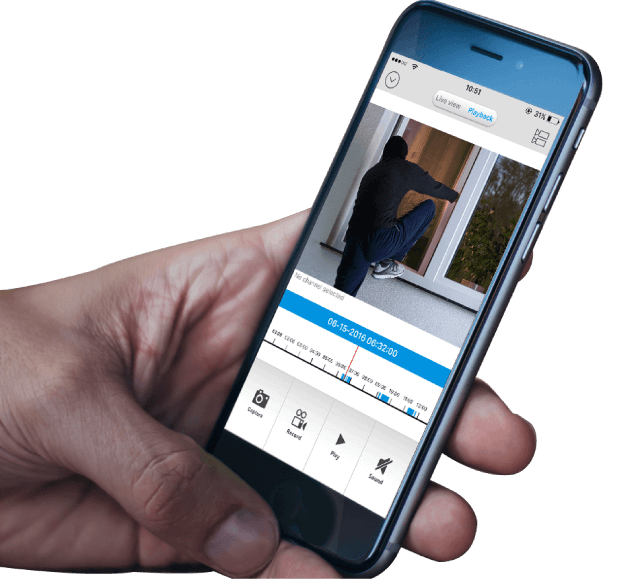

App

Push notifications to
your mobile device

FTP

Save and upload captured images & videos to an FTP server

SD Card (Optional)

The camera comes with an SD card slot for SD card motion recording.

The Easiest Way for Remote Access and Control

Wherever you are and whenever it is, you can remotely access the camera to get live streaming and monitor your home and business via:

● Free Reolink App on your mobile device
● Free Reolink Client on your computer
● A web browser, no plug-ins

Only 3 steps to use Reolink App/Client:

Install, scan, and view

High Quality Night Vision

This Reolink RLC-410W camera has a very good night image quality. With 18pcs LED lights and infrared radiation for 24-hour vigilance, the camera night vision range is up to 100 feet in the dark, good reassurance in terms of preventing security threat.

  • 18pcs

    Infrared LEDs

  • 100feet

    Night vision*

  • 80°

    Viewing angle*

Outdoor Waterproof Design

One of the best outdoor security cameras ever with IP66 waterproof IP rating! You can feel free to install it outdoor, like in your garage, backyard, or anywhere else. It can stand harsh weather conditions, including rain, snow, intense cold and heat.

One of the best outdoor security cameras ever with IP66 waterproof IP rating! You can feel free to install it outdoor, like in your garage, backyard, or anywhere else. It can stand harsh weather conditions, including rain, snow, intense cold and heat.

IP66 Certified Weatherproof

24/7 or Motion Recording, You Decide

This IP camera supports both motion-activated recording and continuous recording. 24/7 recording is ideal in high-traffic areas like store entrances, while in lower activity regions like warehouses or at night, motion recording can help you save storage space.

Motion Clips in microSD Card

Supports up to 128GB microSD card (not included).

24.3
hours

32GB

48.5
hours

64GB

97.1
hours

128GB

Figure based on the default bit rate of the cam (3072 kbps). Actual recording time depends on the settings. Results may vary. Learn more

Continuous Recording

This security camera can record continuously when you connect the cam to a Reolink NVR or video surveillance system, or set up FTP server to save videos without missing a beat.

• FTP server

• Reolink NVR

* When you plan to buy an NVR, recommended to use Reolink NVR for best compatibility.

Free Firmware Update — Easy, Quick and Flexible

Reolink firmware update for IP security cameras is very easy – download firmware on the firmware page and update the firmware on the client software. All is free! Learn More

*Data based on internal lab testing.

Comparison

What’s in the Box & Setup Guide (with Video) What's in the Box

*The data on the pages above are obtained under specific test conditions. Actual use may vary.

Specifications

Video & Audio

Image Sensor

1/3" CMOS Sensor

Video Resolution

Default: 2560 x 1440 (4MP) @30fps

Lens

f=4.0mm fixed, F=2.0, with IR cut

Video Format

H.264

Field of View

• Horizontal: 80°

• Vertical: 42°

Day & Night

IR-cut filter with auto-switching

Night Vision

30 meters (100ft) (LED: 18pcs/14mil/850nm)

Audio

Audio recording

Power

DC Power

DC 12.0V⎓1A, <12W

Interface

Power

DC power port

System

Reset button

Ethernet

One 10M/100Mbps RJ45

Storage

microSD card slot (max. 256GB)

Audio

Built-in microphone

Software Features

Frame Rate

• Mainstream: 2fps - 30fps (default: 15fps)

• Substream: 4fps - 15fps (default: 7fps)

Code Rate

• Mainstream: 1024Kbps - 8192Kbps (default: 3072Kbps)

• Substream: 64Kbps - 512Kbps (default: 160Kbps)

Browsers Supported

Edge, Chrome, Firefox, Safari

OS Supported

PC: Windows, Mac OS; Smartphone: iOS, Android

Smart Alarm

Person detection; vehicle detection; motion detection

Recording Modes

Motion recording (default); scheduled recording; 24/7 recording

Protocols & Standards

HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Maximal User Access

20 users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

Works with

Google Assistant

WiFi

Wireless Standard

IEEE 802.11a/b/g/n

Operating Frequency

2.4GHz/5GHz

Wireless Security

WPA-PSK/WPA2-PSK

Working Environment

Temperature

Operating temperature: -10°C~+55°C (14°F~131°F)

Humidity

Operating Humidity: 10% ~ 90%

Waterproof

IP66

Size & Weight

Dimension

Φ67 x 186mm

Weight

430g

Warranty

Limited Warranty

2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/ .

The above data are provided by internal laboratories, and are obtained under specific test conditions. Actual use may vary due to settings, use conditions and environmental factors.
