RLC-511
Reliable 5MP PoE Camera Protects You Inside & Out
4X Optical Zoom
Power over Ethernet
100ft Night Vision*
IP66 Waterproof
5 Megapixels Super HD: Clearer Images & More Details
The higher the camera resolution is, the more image details you’ll obtain. RLC-511 PoE security IP camera prides in the high resolution of 2560x1920, which is about 2.4X the resolution of 1080p, and even 1.3X the resolution of 1440p Super HD. It ensures true-color images with vivid details.
Wideo udostępnione przez Météo P., klienta Reolink.

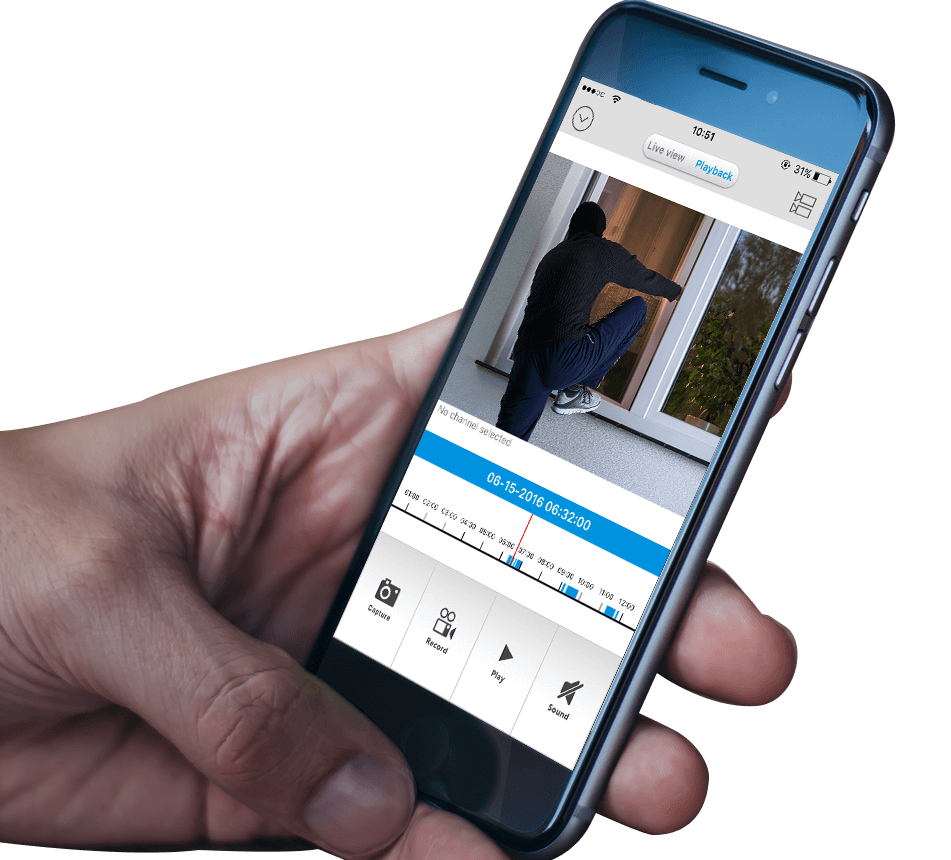

Smart Motion Detection & Intelligent Alerts
●Reolink RLC-511 PoE IP camera stands guard keenly day and night. Whenever motion is detected, it will send you instant push notifications, email photos and video clips, enabling you to see in real-time what’s happening and take responsive action.
●You can also customize specific motion zones or detection sensitivity to receive the wanted alerts and avoid the unwanted.
Email
Email photos
or 30-second video clips
App
Push notifications to your
mobile device
FTP
Save and upload captured images
& videos to an FTP server
SD Card (Optional)
Record motion events to the SD card you inserted (up to 128GB)
PoE – Faster, Simplified & Lower-Cost Installation
Save your time and cost with a simple setup process! With Power over Ethernet (PoE), this outdoor bullet security camera can transmit videos and get power via only one network cable. As a result, the camera installation can be accomplished quickly and painlessly at lower cost.
Remote Access Lets You Be There, Even You're Not
Distance should never be a problem, especially for your security. Remote access makes it a reality for you to watch live viewing videos and monitor your property without actually being there. You can view this surveillance camera remotely via free Reolink App, free Reolink Client, and web browsers (Google Chrome, Microsoft Edge, Safari, Firefox, etc.).
![]()
Clear and Long-Distance Night View
Relying on the 24pcs infrared LEDs and advanced IR technology, this 5MP outdoor PoE IP camera features a night vision range of up to 100 feet. Clearer night vision also offers you the best chance to pinpoint small details, even in total darkness.

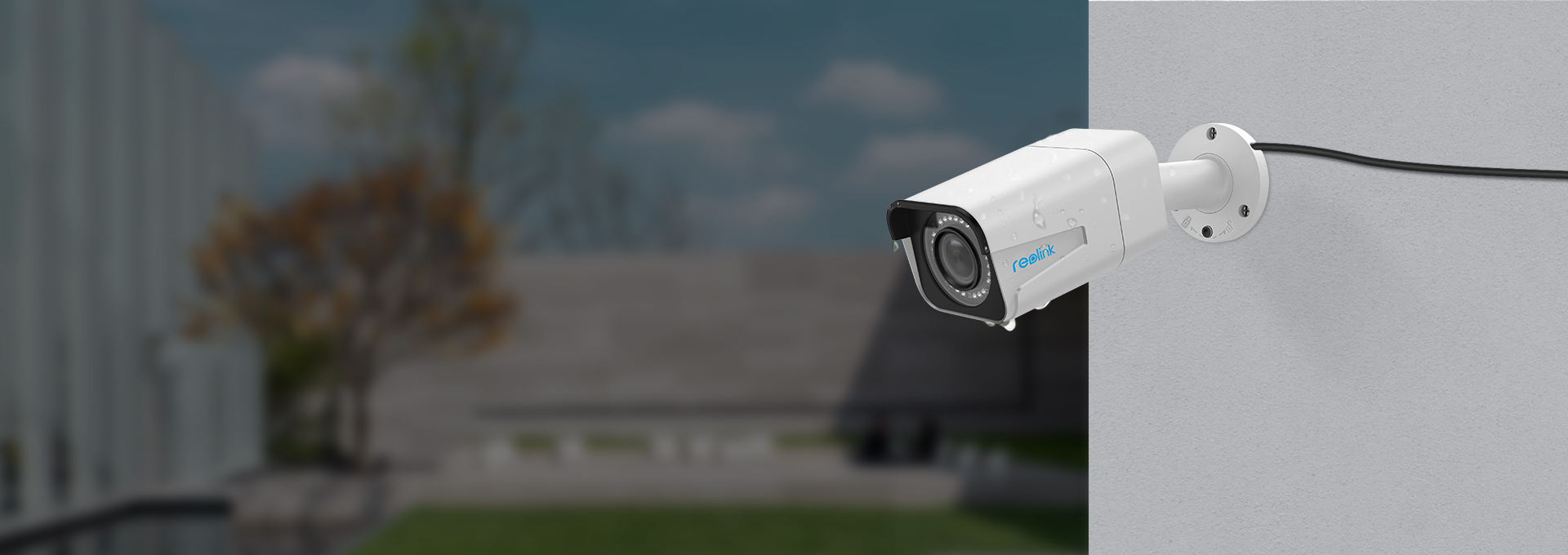

Waterproof Enough for Anywhere Outside
Feel free to put RLC-511 PoE video surveillance camera anywhere, outdoors and indoors! With IP66 waterproof rating, this outdoor security camera will never shrink back in front of the elements, like freezing rain, heavy snow, extreme cold and heat.
Feel free to put RLC-511 PoE video surveillance camera anywhere, outdoors and indoors! With IP66 waterproof rating, this outdoor security camera will never shrink back in front of the elements, like freezing rain, heavy snow, extreme cold and heat.
IP66 Certified Weatherproof
![]()

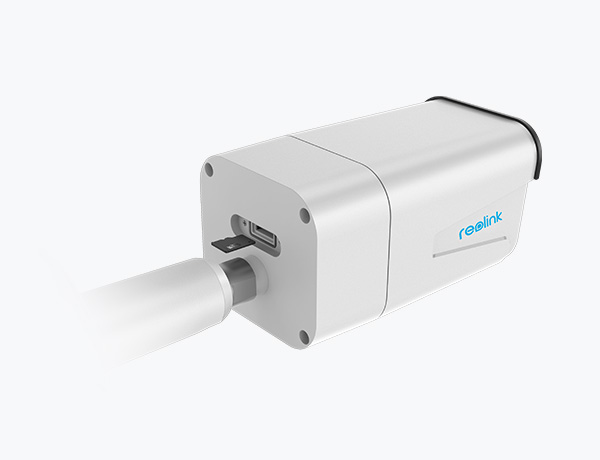

Motion Clips in microSD Card
Supports up to 128GB microSD card (not included).
Rysunek oparty na domyślnej przepływności kamery (6144 kb/s). Rzeczywisty czas nagrywania zależy od ustawień. Wyniki mogą się różnić.
Dowiedz się więcej
Free Firmware Update — Easy, Quick and Flexible
Reolink firmware update for IP security cameras is very easy – download firmware on the firmware page and update the firmware on the client software. All is free!
Learn more
-
The process of firmware release and upgrade is flexible and quick too.
-
●
We collect your feedback.
-
●
Our R&D team research and do fixes.
-
●
The latest firmware version is available to you shortly.
Comparison
*Dane oparte na wewnętrznych testach laboratoryjnych.
Porównanie
Porównanie
Zawartość opakowania
Zawartość opakowania i przewodnik konfiguracji (z materiałem wideo)
Zawartość opakowania
*Dane na powyższych stronach zostały uzyskane w określonych warunkach testowych. Rzeczywiste użytkowanie może się różnić.
Galeria i specyfikacje
![]()
1Mount
2Metal Aluminum Case
324 IR LEDs
4High Definition Lens (f=2.7-12mm)
5Daylight Sensor
![]()
1. Loosen the screw (counterclockwise) with the wrench and adjust the camera in any direction.
2. After adjustment, tighten the screw to fix the camera.
![]()

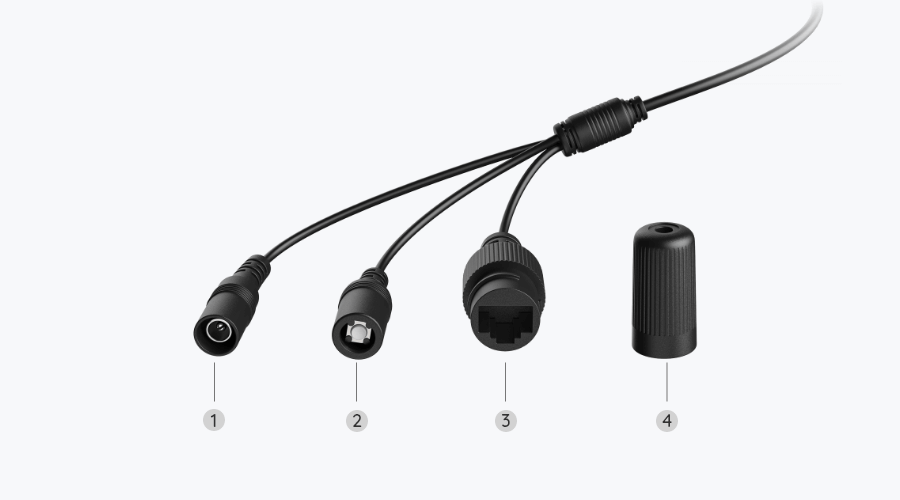

1Power
2Reset Button
3Network
4Waterproof Lid
Camera
Image Sensor
1/2.7" CMOS Sensor
Effective Pixels
2560 x 1920 (5.0 Megapixels)
Lens
f=2.7-12mm Auto-focus, F=1.6
Angle of View
Horizontal: 90° ~ 31°, Vertical: 67° ~ 24°
Day/Night Mode
Auto-switching with IR-cut filter
Min. Illumination
0 Lux (With IR Illuminator)
IR Distance
30 Meters (100ft) (LED: 24pcs/14mil/850nm)
Backlight Compensation
Support
Video
Resolution
Main Stream: 2560x1920, 2560x1440, 2048x1536, 2304x1296; Sub Stream: 640 x 480
Bitrate
Main Stream: 1024Kbps ~ 8192Kbps, Sub Stream: 64Kbps ~ 512Kbps
Frame Rate
Main Stream@30fps, Sub Stream@7fps
Audio
Interface
Built-in Microphone
Network
Interface
One 10M/100Mbps RJ45
Network Protocol
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Browser Supported
Edge, Chrome, Firefox, Safari
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Max. User Access
20 Users (1 admin account & 19 user accounts); Support up to
12 simultaneous video streams (10 substreams & 2 mainstreams)
Storage
microSD card slot (Max. 128GB)
General
Power Supply
DC12V & PoE (IEEE 802.3af)
Working Environment
-10℃~+55℃ (14°F~131°F), 10%~90%
Dimensions
80 x 72 x 238mm
Warranty
Limited Warranty
2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/
Powyższe dane są dostarczane przez wewnętrzne laboratoria i są uzyskiwane w określonych warunkach testowych. Rzeczywiste zastosowanie może się różnić ze względu na ustawienia, warunki użytkowania i czynniki środowiskowe.
