RLK8-812B4-A

4K 8MP UHD PoE Camera System with Person/Vehicle Detection & Spotlights

8MP Ultra HD
Person/Vehicle Detection
Power over Ethernet
8-Channel NVR
Smart Guardian Well-Equipped

Smart Detection

By analyzing the shapes of humans, vehicles, and pets, RLK8-812B4-A can accurately detect these objects and sends you real-time event alerts. Ignoring other less important objects’ movements, it greatly reduces false alarms.

By analyzing the shapes of humans, vehicles, and pets, RLK8-812B4-A can accurately detect these objects and sends you real-time event alerts. Ignoring other less important objects’ movements, it greatly reduces false alarms.

Person/Vehicle Detection Accurate Alerts Without Subscription Pet Detection

Color Night Vision

Color Night Vision

This smart camera kit with spotlights offers full-color video recording day and night. It continues to keep your family firmly guarded after sundown.

This smart camera kit with spotlights offers full-color video recording day and night. It continues to keep your family firmly guarded after sundown.

Incredible 8MP Super HD

This 4K 8MP security system captures even the finest, most minute details, spares you the maddening guessing game and provides you with immersive visual experience.

This video was shared by Russell P., a Reolink customer.

Easy Installation & Control

PoE — Faster, Easier & Lower-Cost Installation

Thanks to Power over Ethernet (PoE) technology, this IP camera can transmit videos and be charged simultaneously via only one network cable . You can install this camera quickly and nicely.

  • Plug & Play
  • Reliable Connection
12MP Intelligent PoE Outdoor CCTV Camera

PoE Camera
Only needs a network cable

PoE Security Camera

Non-PoE Camera
Needs both a network cable and a power adapter

Non-PoE Security Camera

Non-Stop Recording

With the 2TB HDD and the storage capacity of up to 12TB, the PoE video surveillance kit supports all cameras to record continuously   at the same time. You will have all-day videos without missing a beat.

  • Built-in Seagate 2TB HDD
  • Up to 12TB

Work with Various Reolink IP Cameras

This security camera system can be expanded up to 8-camera kit with Reolink IP cameras - bullet, dome or PTZ; 12MP, 4K, 5MP or 4MP – to cover every corner in your home, store or factory.

* For best compatibility, Reolink cameras are recommended.

Stay Strong, Stay Weatherproof

Armed with rugged housing, the IP66 weatherproof cameras can stand up to thunderstorms, extreme cold/heat and any other harsh weather. Your faithful guard never quits.

Armed with rugged housing, the IP66 weatherproof cameras can stand up to thunderstorms, extreme cold/heat and any other harsh weather. Your faithful guard never quits.

IP66 Waterproof

Easy Management

You can also access and control your cameras via Reolink APP and Client, besides NVR. Just a touch away, manage your home, store or factory easily.

  • Motion Alerts Once it detects something suspicious, this motion-triggered camera will send to your device an instant push notification. Know what’s happening all the time.
  • Multi-Cam Live Feed See the live feed of multiple cams on the same screen. Easier to have an overview of your property.
  • Smart Playback You can not only replay saved videos to find key information but also filter the video by detection modes and control the timeline to quickly locate what you want to see.
  • Record Scheduling You can choose to have the camera record 24/7 continuously, only when the movement is detected, or in accordance with your daily schedule.
  • Motion Zone You can customize the motion zone to your like, deciding where objects’ movements will be detected and where they will not.

*Data based on internal lab testing.

Comparison

What’s in the Box & Setup Guide (with Video) What's in the Box

Please note: The cameras of the kit cannot work without the NVR.

*The data on the pages above are obtained under specific test conditions. Actual use may vary.

Hardware

Hardware

V2

Video/Audio Input

IP Video Input

PoE IP camera x 8

Audio Input

Cameras with built-in mic

Video/Audio Output

Video Output

VGA, HDMI

Display Resolution

• HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768

• VGA: 1920x1080, 1280x1024, 1280x720, 1024x768

Audio output

1-channel, RCA

Decoding

Video Format

H.264, H.265

Live View/Playback Resolution

4096*3072/3840*2160/2560*1920/2560*1440/2048*1536/2304*1296/1080p/720p

Synchronous Playback

Up to 4 channels

HDD

SATA

1 x SATA interface (1 x 2TB HDD included)

External HDD

1 eSATA interface for HDD

Capacity

Up to 12TB (max. 6TB capacity for each HDD)

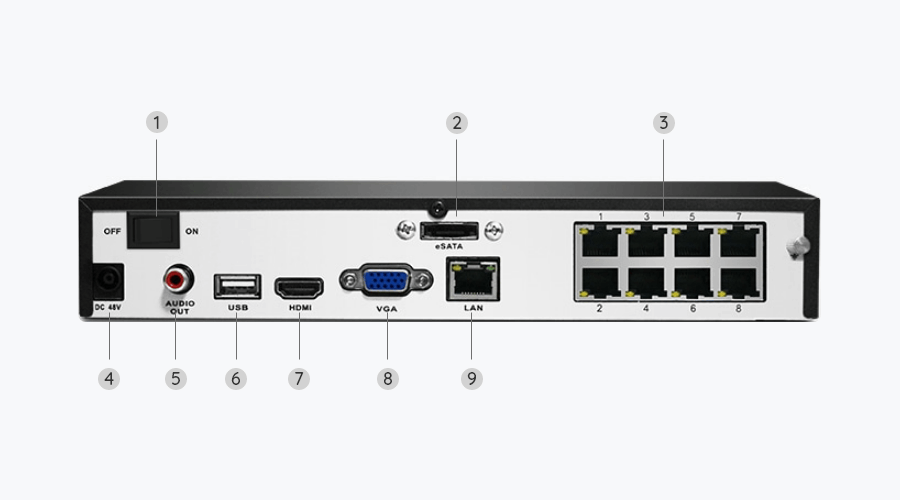

External Interface

USB Interface

2 x USB 2.0

Network Interface

• 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface for LAN/WAN

• 8, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera

PoE

Max. Power Per Port

25W

Supported Standard

IEEE 802.3af/at

Network

Network Protocols

HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP

Browsers Supported

Edge, Firefox, Chrome, Safari

OS Supported

PC: Windows, Mac OS; smartphone: iOS, Android

Max. User Access

20 users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

General

Power Supply

DC 48V~53V

Power Consumption

<10W (without HDD & PoE)

Working Environment

Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90%

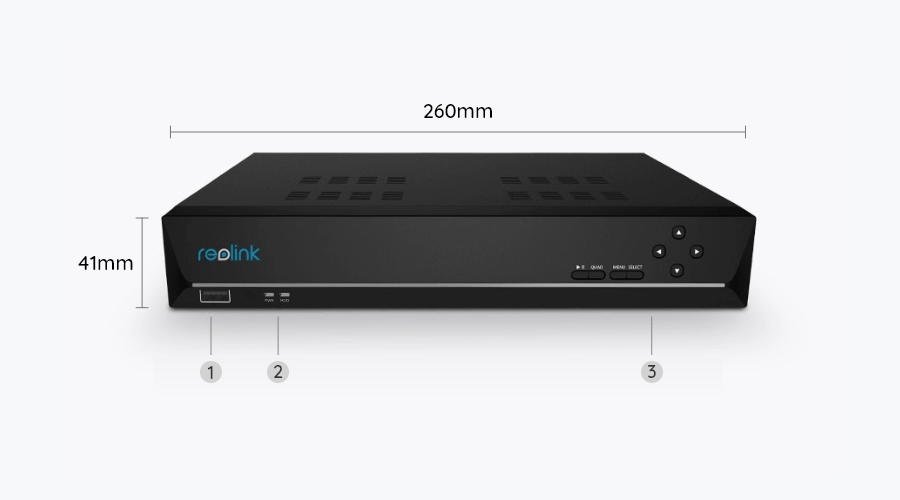

Dimensions

260 x 41 x 230mm

Weight

1.4kg

Warranty

Limited Warranty

2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/.

Note:

The cameras of the kit cannot work without the NVR.

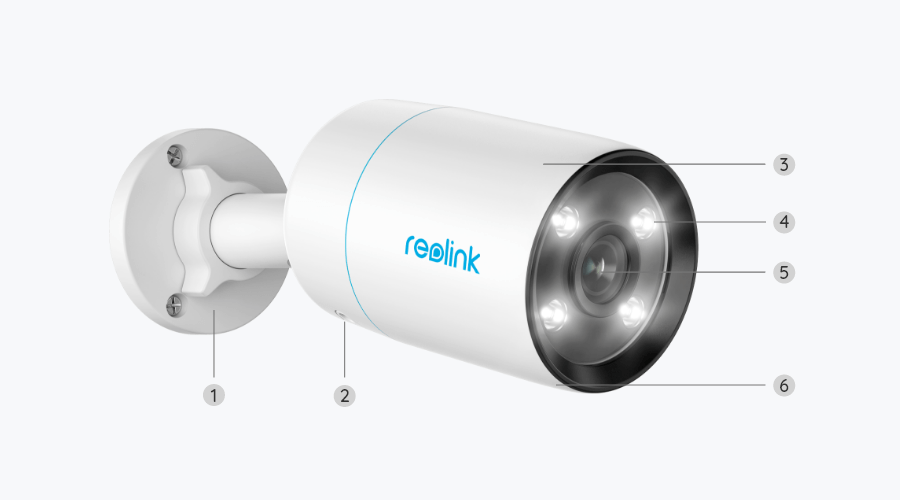

Video & Audio

Image Sensor

1/2.49" CMOS Sensor

Video Resolution

Default: 3840X2160 (8.0 Megapixels) at 25 frames/sec

Lens

f=4.0mm fixed, F=2.0

Video Format

H.265

Field of View

• Horizontal: 85°

• Vertical: 44°

Day & Night

Auto-switching

Color Night Vision

Spotlight: 4pcs/3.5W/6500K/400 Lumens

Audio

Two-way audio (via Reolink App/Client)

Power

POE

IEEE 802.3af, 48V Active

DC Power

DC 12.0V⎓1A, <12W

Interface

Power

DC power port

System

Reset button

Ethernet

One 10M/100Mbps; RJ45

Audio

Built-in microphone and speaker

Software Features

Frame Rate

• Mainstream: 2fps - 25fps (default: 25fps)

• Substream: 4fps - 15fps (default: 10fps)

Code Rate

• Mainstream: 4096Kbps-8192Kbps (default: 6144Kbps)

• Substream: 64Kbps - 512Kbps (default: 256Kbps)

Smart Alarm

Motion detection; person detection; vehicle detection; pet detection (beta)

Record Mode

Motion-triggered recording (default); scheduled recording; 24/7 recording

Working Environment

Temperature

Operating temperature: -10°C - +55°C (14°F - 131°F)

Humidity

Operating humidity: 10% - 90%

Waterproof

IP66

Size & Weight

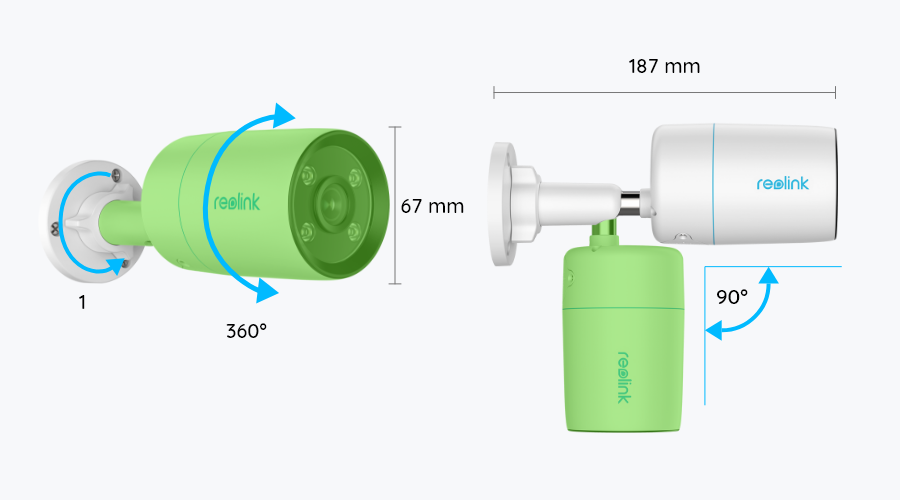

Dimension

Φ67*187mm

Weight

460g

Warranty

Limited Warranty

2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/

The above data are provided by internal laboratories, and are obtained under specific test conditions. Actual use may vary due to settings, use conditions and environmental factors.
