RLK8-520B2D2

24/7 Surveillance in 5MP Super HD

  • Power over Ethernet
  • 2TB HDD Built-in
  • Audio Recording
  • Plug and Play

Limited-time offer -- -- : -- : --

Buy at Amazon Shop at

  • Limited-time offer -- -- : -- : --

% OFF

Help Me Choose

Impressive 5MP Super HD

Get razor-sharp and pristine videos of your house or business with this 5MP PoE security camera system. Also, with the microphones embedded in each camera, the kit can pick up ambient sound for an extra layer of security.

  • Audio recording
  • 80° viewing angle

The video shared by Neil B., a Reolink customer.

The video shared by Duane, a Reolink customer.

Brilliant Night Vision

All four IP cameras are equipped with 18pcs infrared LEDs to illuminate the night as long as 100ft. Night vision is further boosted with 3D-DNR technology that ensures clean and noise-free images.

  • 18pcs IR LEDs
  • 100ft night vision

Easier Setup with PoE Connection

This video surveillance system features PoE (Power over Ethernet) technology, with only one cable connecting each IP camera to the NVR for both power supply and video signal transmission. A real plug and play security system!

Easy PoE Security Camera System PoE Security Camera System

PoE Camera
Only needs a network cable

PoE Security Camera

Non-PoE Camera
Needs both a network cable and a power adapter

Non-PoE Security Camera

Unfailing 24/7 Recording

With the 2TB HDD and the storage capacity of up to 8TB, the PoE security camera kit supports all cameras to record continuously. You will have all-day video without missing a beat.

  • Built-in 2TB HDD
  • Up to 8TB

Access Your Camera, Anywhere and Anytime

Stay connected with your home or business on the go with your mobile phone, tablet or computer. See live video, replay key moments or check on motion alerts with just a few clicks.

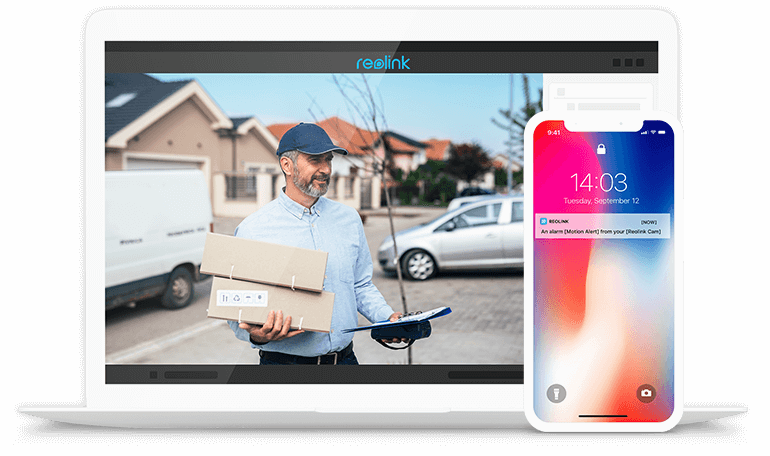

5MP PoE Security Camera System with Motion Alerts
  • Motion Alerts Informs you when the cam spots the movement via push notifications, emails, or buzzer alarm in the NVR.
  • Multi-Cam Live Feed See the live feed of multiple cams on the same screen. Easier to have an overview of your property.

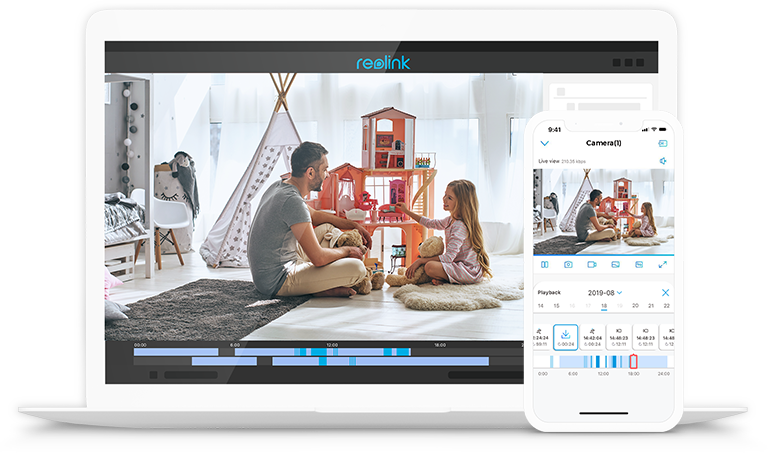

  • Playback Videos can be stored in the NVR or FTP server. With our intuitive App/Client, you can easily find, replay or share footages you want.
  • Record Scheduling You can set each cam respectively to record continuously, or when the motion is detected, or on your time schedule.

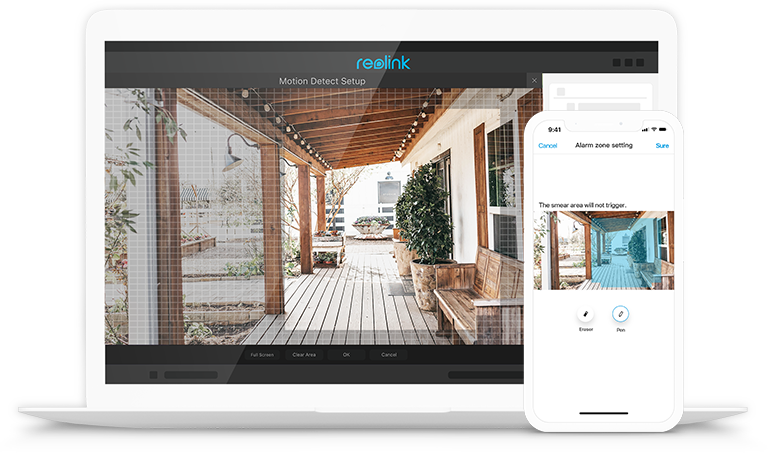

  • Motion Zone Define a specific area and let the cam only detect activities in it, and trigger alerts that really matter.

Work with Various Reolink IP Cameras

This security camera system can be expanded up to 8-camera kit with Reolink IP cameras - bullet, dome or PTZ; 4K, 5MP or 4MP – to cover every corner in your home, store or factory.

* The Reolink NVRs work with Reolink security cameras ONLY.

IP66 Certified Waterproof

The rugged body and housing make the security IP cameras waterproof. They work perfectly both inside and outside your house, in any harsh weather conditions.

The rugged housing and body make the dome security IP cameras waterproof. They work perfectly both inside and outside your house, in any harsh weather conditions.

IP66 Waterproof 5MP Outdoor Indoor Security Camera System

Compare with Similar Products

Compare with Similar Products

What's in the Box

x1

RLN8-410

x2

RLC-410 (5MP) Camera

x2

RLC-520 Camera

x1

NVR Power Adapter

x1

HDMI Cable

x1

USB Mouse

x1

1m Network Cable

x4

18m Network Cable

x1

Quick Start Guide

x6

Mounting Hole Template

x4

Surveillance Card

x4

Waterproof Lid

x1

Wrench

x4

RJ45 Connector

x6

Pack of Screws

#ReolinkCaptures in 5MP Shared by Reolink Users

Video/Audio Input

IP Video Input

PoE IP Camera x 8

Audio Input

Cameras with Built-in Mic

Video/Audio Output

HDMI Output

3840x2160, 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768

VGA Output

1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768

Audio output

1CH RCA

Decoding

Live View/Playback Resolution

3840x2160, 2560x1920, 2560x1440, 2048x1536, 2304x1296, 1080p, 720p

Frame Rate

PAL: 4CH@25fps; NTSC: 4CH@30fps

Synchronous Playback

1CH@8MP; 4CH@4MP

HDD

SATA Devices

1 x 2TB SATA HDD

Maximum Capacity

8TB (Maximum 4TB HDD/Port)

External HDD

1 x eSATA

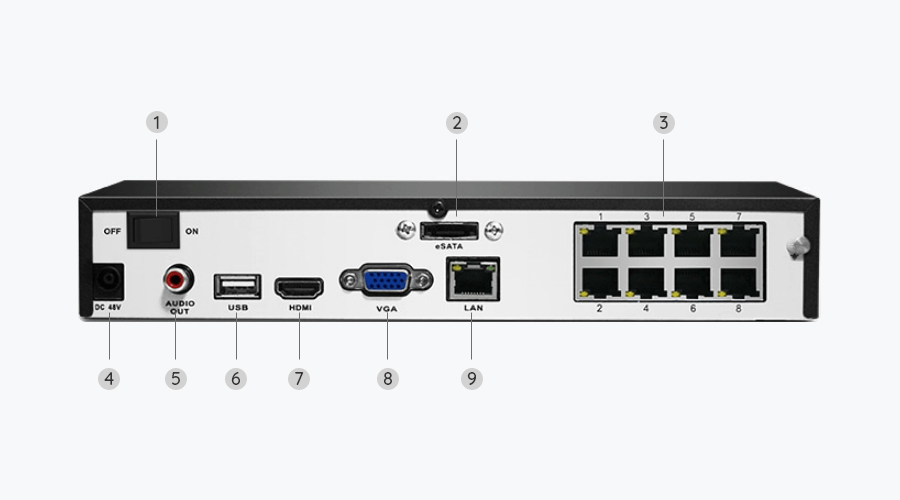

External Interface

USB Interface

2 x USB 2.0

Network Interface

RJ45,10M/100M Ethernet, 8 Network Ports for IP camera, 1 Giga Network Port for LAN/WAN

PoE

Interface

8 Independent 100 Mbps PoE Network Interfaces

Max. Power Consumption

25W

Supported Standard

IEEE 802.3at

Network

Network Protocol

HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP

Browser Supported

IE, Firefox, Chrome

OS Supported

PC: Windows, Mac OS; SmartPhone: iOS, Android

Max. User Access

20 Users

General

Power Supply

DC 48V/2A

Power Consumption

<10W (Without HDD&PoE)

Working Environment

Temperature: -10℃~+55℃ (14°F~131°F); Humidity: 10%~90%

Dimensions (mm)

260(W) x 41(H) x 230(D)

Weight (w/o HDD)

1.2 kg

Warranty

Limited Warranty

2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/

Video & Audio

Image Sensor

1/2.7" CMOS Sensor

Video Resolution

2560x1920 (5.0 Megapixels) at 30 frames/sec

Lens

f=4.0mm fixed; F=2.0, with IR-cut filter

Video Format

H.264

Field of View

• Horizontal: 80°

• Vertical: 58°

Day & Night

Auto-switching IR-cut filter

Night Vision

30 meters (100ft) (LED: 18pcs/14mil/850nm)

Audio

Audio recording

Power

PoE

IEEE 802.3af, 48V Active

DC Power

DC 12.0V⎓1A, <8W

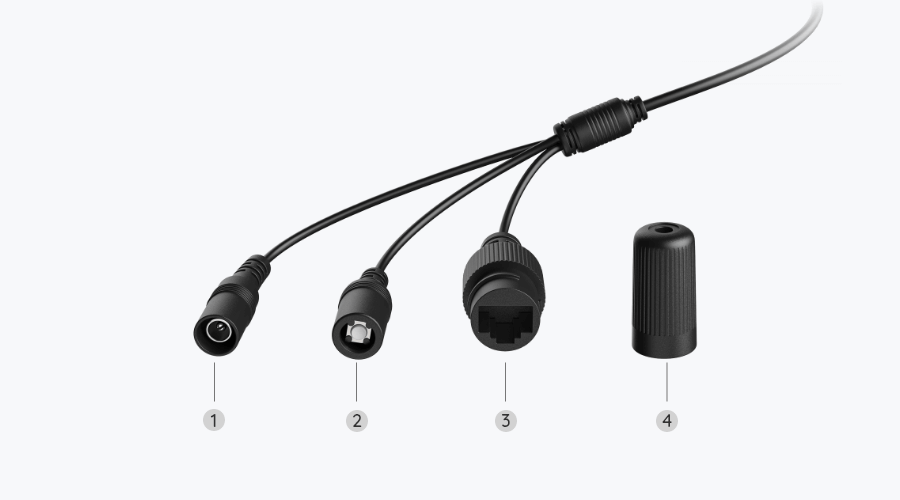

Interface

Power

DC power port

System

Reset button

Ethernet

One 10M/100Mbps; RJ45

Storage

MicroSD card slot (support up to 64GB)

Audio

Built-in microphone

Software Features

Frame Rate

• Mainstream: 2fps - 30fps (default: 30fps)

• Substream: 4fps - 15fps (default: 7fps)

Code Rate

• Mainstream: 1024Kbps - 8192Kbps (default: 6144Kbps)

• Substream: 64Kbps - 512Kbps (default: 160Kbps)

Browser Supported

IE, Edge, Chrome, Firefox, Safari

OS Supported

PC: Windows, Mac OS; Smartphone: iOS, Android

Smart Alarm

Motion detection

Record Mode

Motion-triggered recording

Protocol & Standard

HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Maximal User Access

20 users (1 admin account & 19 user accounts); support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

Working Environment

Temperature

Operating temperature: -10°C - +55°C (14°F - 131°F)

Humidity

Operating humidity: 10% - 90%

Waterproof

IP66

Size & Weight

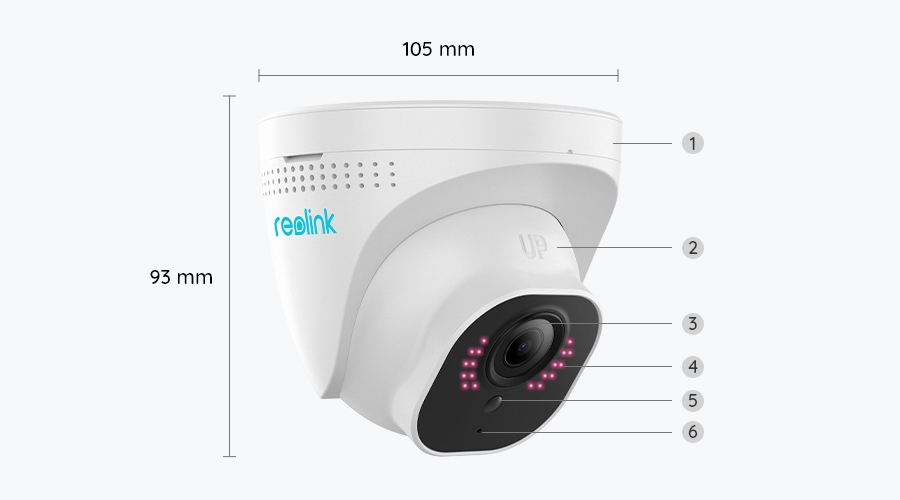

Dimension

Φ105*93mm

Weight

385g

Warranty

Limited Warranty

2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/

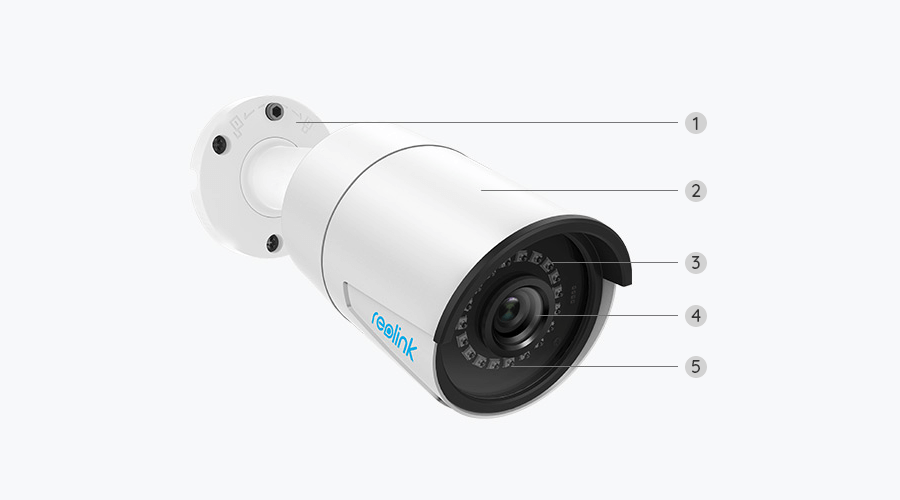

Camera

Image Sensor

1/2.7" CMOS Sensor

Effective Pixels

2560x1920 (5.0 Megapixels)

Lens

f=4.0mm F=2.0

Angle of View

Horizontal: 80°, Vertical: 58°

Day/Night Mode

Auto Switchover

Min. Illumination

0 Lux (With IR Illuminator)

IR Distance

30 Meters (100ft) (LED: 18pcs/14mil/850nm)

Backlight Compensation

Support

Noise Reduction

3D DNR

Video

Compression

H.264

Resolution

Main Stream: 2560x1920, 2560x1440, 2048x1536, 2304x1296; Sub Stream: 640x480

Bitrate

Main Stream: 1024Kbps ~ 8192Kbps, Sub Stream: 64Kbps ~ 512Kbps

Frame Rate

Main Stream@25fps, Sub Stream@6fps

Audio

Interface

Built-in Microphone

Network

Interface

One 10M/100Mbps RJ45

Network Protocol

HTTPS, SSL, TCP/IP, UDP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Browser Supported

IE, Edge, Chrome, Firefox, Safari

OS Supported

PC: Windows, Mac OS; Smart Phone: iOS, Android

Max. User Access

20 Users (1 admin account & 19 user accounts); Support up to 12 simultaneous video streams (10 substreams & 2 mainstreams).

Storage

Built-in Micro SD socket, support motion detect record

General

Power Supply

DC12V & PoE (IEEE 802.3af)

Power Consumption

<10W

Working Environment

-10℃~+55℃(14°F~131°F), 10%~90%

Ingress Protection

IP66

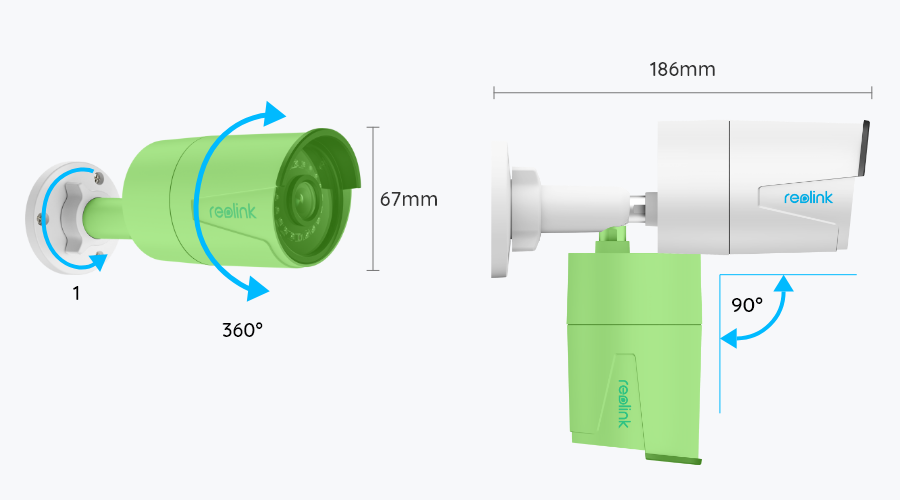

Dimensions

Φ67 x 186mm

Weight

350g
