RLK8-510B4-A

5MP Security Camera Kit with Person/Vehicle Detection

  • Person/Vehicle Detection
  • Power over Ethernet
  • With 8-Channel NVR
  • 2TB HDD Built-in

Limited-time offer -- -- : -- : --

Buy at Amazon Shop at

  • Limited-time offer -- -- : -- : --

    Pre-Order
    OFF
OFF

Help Me Choose

24/7 Surveillance, Made Smart

Keep an eye on your home or business in a more intelligent way with this video surveillance system. Have all-day videos and only be alerted when there is person or vehicle. Never miss a true threat and never worry about unnecessary alarms.

More Than 5MP Super HD

With the high resolution of 2560x1920, the 5MP security cameras in the kit capture clear and sharp images. More than that, the cams shot videos at remarkable 30 frames per second, ensuring you get buttery-smooth videos without being freezing or jerky.

  • Audio recording
  • 80° viewing angle

The video shared by Neil B., a Reolink customer.

The video shared by Duane, a Reolink customer.

Keep Guard at Night

With 18 infrared LEDs in each cam, this system captures videos clearly in the dark within the range of up to 100ft, protecting your home and business with 24-hour vigilance.

  • 18 IR LEDs
  • 100ft night vision

Easy Setup with PoE Technology

This bullet security camera system features PoE (Power over Ethernet) tech, with only one cable connecting each IP camera to the NVR for both power supply and video signal transmission. A real plug and play security system!

5MP PoE AI-Powered Smart Home Security Camera System 5MP Super HD PoE AI-Powered Smart Video Surveillance System

PoE Camera
Only needs a network cable

PoE Security Camera

Non-PoE Camera
Needs both a network cable and a power adapter

Non-PoE Security Camera

Unfailing 24/7 Recording

With the 2TB HDD and the storage capacity of up to 12TB, the PoE video surveillance kit supports all cameras to record continuously at the same time. You will have all-day video without missing a beat.

  • Built-in 2TB HDD
  • Up to 12TB

    Access Your Camera, Anywhere and Anytime

    Stay connected with your home or business on the go. See live streaming, replay key moments or check on motion alerts with just a few clicks on Reolink App or Client.

  • Motion Alerts Informs you when the cam spots the movement via push notifications, emails, or buzzer alarm in the NVR.
  • Multi-Cam Live Feed See the live feed of multiple cams on the same screen. Easier to have an overview of your property.

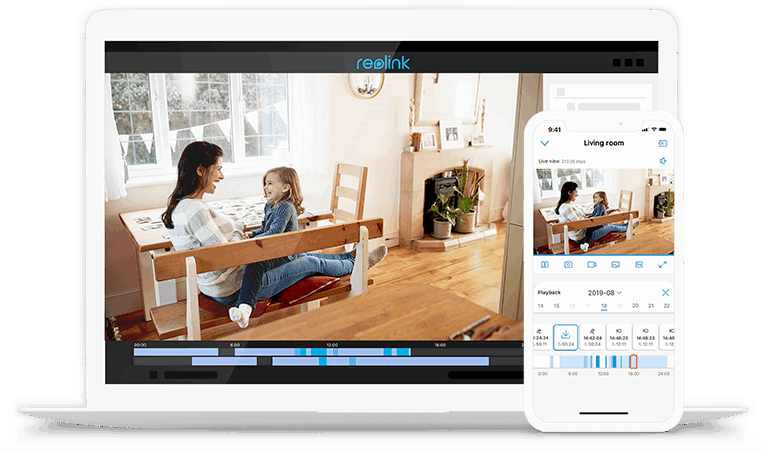

  • Playback Videos can be stored in the NVR or FTP server. With our intuitive App/Client, you can easily find, replay or download footages you want.
  • Record Scheduling You can set each cam respectively to record continuously, or when the motion is detected, or on your time schedule.
  • Motion Zone You can customize the motion zone to your like, deciding where objects’ movements will be detected and where they will not.

Work with Various Reolink IP Cameras

This security camera system can be expanded up to 8-camera kit with Reolink IP cameras - bullet, dome or PTZ; 12MP, 8MP, 5MP, or 4MP – to cover every corner in your home, store or factory.

* The Reolink NVRs work with Reolink security cameras ONLY.

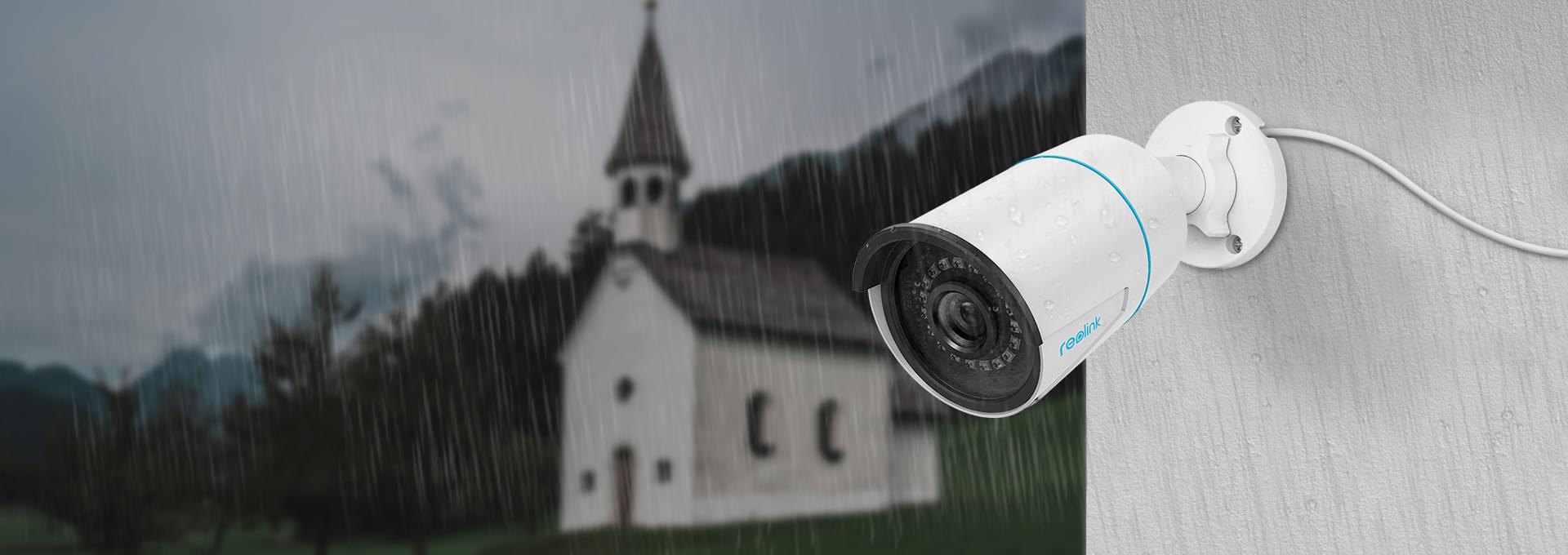

IP66 Waterproof. Certified.

The rugged housing and body make these security IP cameras waterproof. They work perfectly both inside and outside your house, in any harsh weather conditions.

The rugged housing and body make these security IP cameras waterproof. They work perfectly both inside and outside your house, in any harsh weather conditions.

IP66 Waterproof 5MP Outdoor Indoor AI Security Camera System

IMPORTANT!

Before upgrading, make sure the firmware you selected applies to the hardware version of your camera; improper firmware will result in compatibility issues. Click and learn:

How to Find out System Information via Reolink Software

To perform the upgrade step by step, click and learn:

How to Upgrade the Firmware for Reolink Products

Having issues upgrading? Please contact support@reolink.com.

Compare with Similar Products

What's in the Box

Hardware

Hardware

V2

Video/Audio Input

IP Video Input

PoE IP Camera x 8

Audio Input

Cameras with Built-in Mic

Video/Audio Output

HDMI Output

3840x2160, 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768

VGA Output

1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768

Audio output

1CH RCA

Decoding

Live View/Playback Resolution

3840x2160, 2560x1920, 2560x1440, 2048x1536, 2304x1296, 1080p, 720p

Video Format

H.265/H.264

Synchronous Playback

Up to 4 Channels

HDD

SATA Devices

1 x 2TB SATA HDD

Maximum Capacity

12TB (Maximum 6TB HDD/Port)

External HDD

1 x eSATA

External Interface

USB Interface

2 x USB 2.0

Network Interface

RJ45,10M/100M Ethernet, 8 Network Ports for IP camera, 1 Giga Network Port for LAN/WAN

PoE

Interface

8 Independent 100 Mbps PoE Network Interfaces

Max. Power Consumption

25W

Supported Standard

IEEE 802.3at

Network

Network Protocol

HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP

Browser Supported

IE, Firefox, Chrome

OS Supported

PC: Windows, Mac OS; SmartPhone: iOS, Android

Max. User Access

20 Users

General

Power Supply

DC 48V/2A

Power Consumption

<10W (Without HDD&PoE)

Working Environment

Temperature: -10℃~+45℃ (14°F~113°F); Humidity: 10%~90%

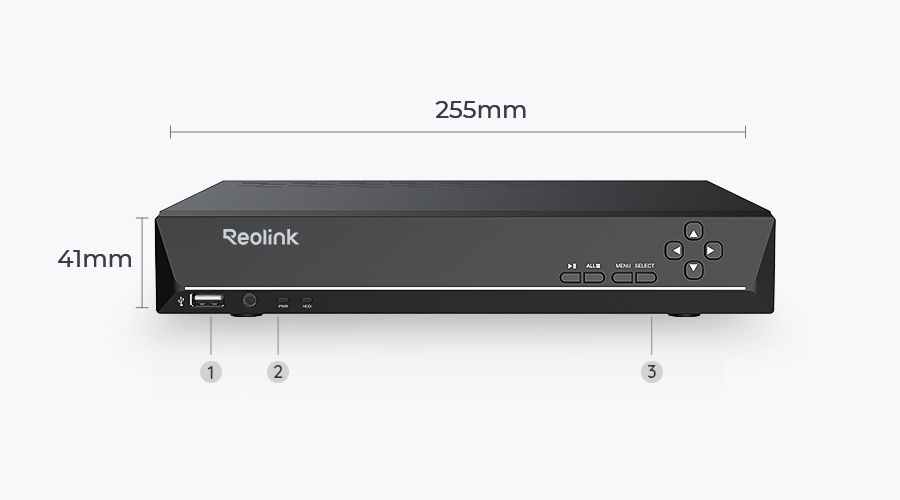

Dimensions (mm)

260(W) x 41(H) x 230(D)

Weight (w/o HDD)

1.2 kg

Video & Audio

Image Sensor

1/2.7" CMOS Sensor

Video Resolution

2560x1920 (5.0 Megapixels) at 30 frames/sec

Lens

f=4.0mm fixed; F=2.0, with IR-cut filter

Video Format

H.264

Field of View

• Horizontal: 80°

• Vertical: 42°

Day & Night

Auto-switching IR-cut filter

Night Vision

30 meters (100ft) (LED: 18pcs/14mil/850nm)

Audio

Audio recording

Power

PoE

IEEE 802.3af, 48V Active

DC Power

DC 12.0V⎓1A, <12W

Interface

Power

DC power port

System

Reset button

Ethernet

One 10M/100Mbps; RJ45

Storage

MicroSD card slot (support up to 256GB)

Audio

Built-in microphone

Software Features

Frame Rate

• Mainstream: 2fps - 30fps (default: 30fps)

• Substream: 4fps - 15fps (default: 10fps)

Code Rate

• Mainstream: 1024Kbps - 8192Kbps (default: 6144Kbps)

• Substream: 64Kbps - 512Kbps (default: 160Kbps)

Browser Supported

IE, Edge, Chrome, Firefox, Safari

OS Supported

PC: Windows, Mac OS; Smartphone: iOS, Android

Smart Alarm

Person detection; vehicle detection; motion detection

Record Mode

Motion-triggered recording (default); scheduled recording

Protocol & Standard

HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Maximal User Access

20 users (1 admin account & 19 user accounts); support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

Smart Home

Google Assistant

Working Environment

Temperature

Operating temperature: -10°C - +55°C (14°F - 131°F)

Humidity

Operating humidity: 10% - 90%

Waterproof

IP66

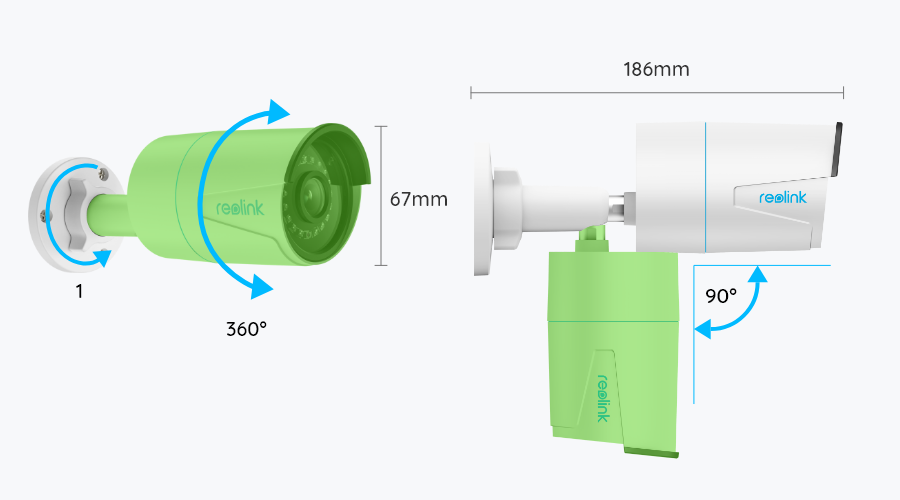

Size & Weight

Dimension

Φ186*67mm

Weight

425g

Warranty

Limited Warranty

2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/
