RLK16-410B8 16-Channel 5MP/4MP PoE Security Camera System

24/7 Stay Protected in 5MP/4MP Super HD

5MP/4MP

3TB HDD Built-in

Power over Ethernet

Plug and Play

Sale ends on

--DAYS

--HRS

--MINS

--SECS

-

Choose an option

Buy at Amazon

Thanks for your interest. Follow us on Facebook
and Twitter @ReolinkTech for more updates.

Please enter a valid email address.

Server Error

Duplicate Submission. You have submitted successfully.
No need of repeated submission.

Submission Failed. Please try again later.

Help Me Choose

Super HD 5MP/4MP High Resolution

RLK16-410B8 has versions of 5MP and 4MP:

5MP RLK16-410B8 with a pixel resolution of 2560x1920, that is, nearly 2.4X the resolution of 1080p Full HD, and even 1.3X the resolution of 1440p. It sees and records your home security more clearly, with more details.

4MP RLK16-410B8 with 2560x1440 high resolution to provide incredibly bright and sharp images in real color, which enables you to see all objects very clearly.

Any way to see more clearly? Meet brand-new 4K (8MP, 3840x2160) RLK8-800B4

The video shared by Neil B., a Reolink customer.

PoE — Easy Setup, Even for a Beginner

A real plug and play security system! This RLK16-410B8 system features PoE (Power over Ethernet), with a single network cable connecting each of your IP cameras to the NVR for both power supply and video signal transmission. Easy wiring – the wiring process can’t be simpler for DIY enthusiasts.

Unfailing 24/7
Recording

  • Pre-installed 3TB HDD for 24/7 recording (support up to 4TB).
  • Support all cameras recording at the same time (up to 16 cameras).
  • The motion detection recording function will trigger recording only when motion is detected. It’s much flexible and helpful for longer recording.
  • You can install an external hard disk drive via e-SATA for more storage (up to 4TB).
  • Pre-installed

    3TB

    Hard Disk Drive

  • Up to

    16

    Cameras

  • Up to

    4TB

    External HDD

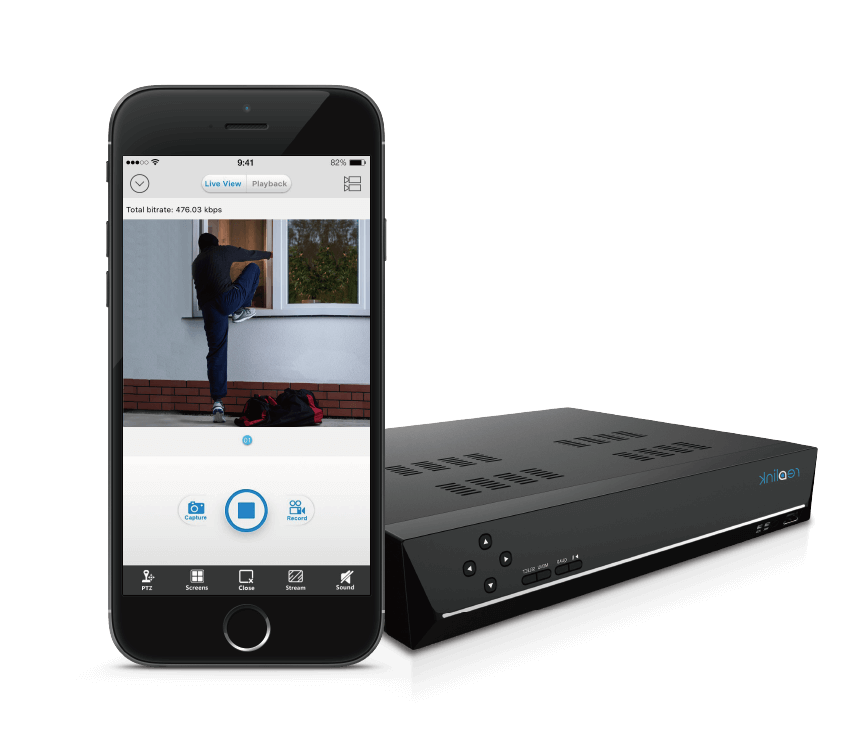

Instant Motion Detection Triggers Rich Alerts

Intelligently detect moving objects in the monitoring areas, and trigger alerts when it detects burglars. It will inform you instantly.

Email

Email photos or
30-second video clips

App

Push notifications to
your mobile device

FTP

Save and upload captured images & videos to an FTP server

Buzzer

The buzzer in NVR
makes sound warning

Optional for Local
and Remote Viewing

For local access and control

Connect the system to a monitor or an HD TV.

For remote access and control

Get live streaming via free Reolink App on iOS & Android devices, through free Reolink Client software on Windows PCs & Mac computers, or via IE browser.

Only 3 steps to use Reolink App/Client

install-app
Install

Download and install
the free software

launch
Launch

Open to add the system

view-camera
View

Start the Live View

High Quality Night Vision with IR Technology

The 5MP/4MP cameras ensure a high quality night vision, up to 100 feet long distance, with plenty LED lights and improved infrared radiation for 24-hour vigilance. If you want a night vision security camera system, this is a good choice.

  • Plenty

    Infrared LEDs

  • 100feet

    Night vision

  • 80°

    Viewing angle

Flexible Video Playback

As one of the outstanding features of the Reolink RLK16-410B8 16 channel PoE security camera system, the playback feature allows you to know the whole events.

  • Replay significant evidence or funny video records.
  • 4-channel simultaneous playback.
  • Quick search for any event that happened at any time.
  • Freely playback any event on days, hours and even minutes with the help of timer axis under the split screen.

Work with All Reolink PoE IP Cameras

This Reolink PoE NVR system works perfectly with all our 5MP/4MP PoE IP cameras for 24/7 recording, motion detections, live views, playback and more features.

Supported Reolink 5MP/4MP IP cameras include: RLC-410, RLC-511, RLC-420, RLC-422, RLC-423, etc.

* The Reolink NVRs are designed for Reolink security cameras ONLY.

Quick and Easy Video Data Backup

What's in the Box

x1

16-Channel PoE NVR

x8

RLC-410 (5MP) or B400 (4MP) Camera

x1

NVR Power Adapter

x1

HDMI Cable

x1

USB Mouse

x1

1m Network Cable

x8

18m Network Cable

x1

Quick Start Guide

x9

Mounting Hole Template

x8

Surveillance Card

x8

Waterproof Lid

x8

RJ45 Connector

x1

Screws for HDD

x9

Pack of Screws

x1

Wrench

x2

Screwdriver

Specification

Download Specifications Download as PDF

Model RLN16-410
System GUI 16-Bit True Color
Operating System Embedded Linux OS
Max. User Access 20 Users (1 admin account & 19 user accounts); Support up to 12 simultaneous video streams (10 substreams & 2 mainstreams).
A/V Input Video Input PoE IP Camera x 16
Audio Input Cameras with Built-in Mic
A/V Output Decoding Resolution 5MP/4MP/3MP/1080p/720p
VGA Output 1024*768,1280*720,1280*800,1280*1024,1440*900,1920*1080p (1080p)
HDMI Output 1024*768,1280*720,1280*800,1280*1024,1440*900,1920*1080p (1080p)
Audio Output 1CH RCA (Linear, 1kΩ)
Playback Resolution 5MP/4MP/3MP/1080p/720p
Synchronous Playback 4CH
HDD SATA Devices 1 x 3TB (2 SATA Slots)
Maximum Capacity 12TB (Maximum 4TB HDD/Port)
External HDD 1 x e-Sata
External Interface USB Connector 2 x USB 2.0
Serial Interface No
2-Way Audio (Voice Talk) No
Alarm Input/Output No
Network Interface RJ45, 10M/100M Ethernet, 8 Network Ports for IP Cameras, 1 Giga Network Port for LAN/WAN
Network Network Protocol HTTP, HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
Mobile Device iPhone, Android Smartphones
System Upgrade USB Local Update + Client Update
Remote Software Reolink App, IE Browser, Reolink Client (Windows/Mac)
General Power Supply Input 100~240V, 48V 2.5A
Consumption <10W Without HDD & PoE
Working Temperature -10°C~ + 55°C (14°F~131°F)
Working Humidity 10%~90%
Dimension (mm) 330(W) x 45(H) x 260(D)
Weight (w/o HDD/DVD±RW) 3.0 kg

Download Specifications Download as PDF

Model RLC-410 (5MP)/B400 (4MP)
Video Image Sensor 1/2.7" CMOS Sensor (RLC-410); 1/3" CMOS Sensor (B400)
Effective Pixels RLC-410: 2560x1920 (5.0 Megapixels); B400: 2560x1440 (4.0 Megapixels)
Lens f=4.0mm F=2.0
Angle of View Horizontal: 80°, Vertical: 58° (RLC-410); Vertical: 42° (B400)
Day/Night Mode Auto Switchover
Min. Illumination 0 Lux (With IR Illuminator)
IR Distance 30 Meters (100ft) (LED: 18pcs/14mil/850nm)
Backlight Compensation Support
Noise Reduction 3D DNR
Compression H.264
Resolution RLC-410: Main Stream: 2560x1920, 2560x1440, 2048x1536, 2304x1296; Sub Stream: 640x480
B400: Main Stream: 2560x1440, 2048x1536, 2304x1296; Sub Stream: 640x360
Bitrate Main Stream: 1024Kbps ~ 8192Kbps, Sub Stream: 64Kbps ~ 512Kbps
Frame Rate Main Stream@25fps, Sub Stream@6fps
Audio Interface Built-in Microphone
Network Interface One 10M/100Mbps RJ45
Network Protocol HTTPS, SSL, TCP/IP, UDP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Browser Supported IE, Edge, Chrome, Firefox, Safari
OS Supported PC: Windows, Mac OS; Smart Phone: iOS, Android
Max. User Access 20 Users (1 admin account & 19 user accounts); Support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
Storage Micro SD socket (RLC-410 only)
General Power Supply DC12V & PoE (IEEE 802.3af)
Power Consumption <10W (RLC-410); <8W (B400)
Working Environment -10℃~+55℃(14°F~131°F), 10%~90%
Ingress Protection IP66
Dimensions Φ67*186mm
Weight 350g (RLC-410); 425g (B400)

Diagram

Connections and Expansion

(The micro SD socket is designed for RLC-410 (5MP) ONLY.)

Size

Direction Adjustment

1. Twist it with the wrench to unlock, and adjust the cam (green part) in any directions.

2. After adjustment, twist it back to lock it.

3. Store the wrench here for later use.
