RLC-423 (Refurbished)

5MP High-Speed PTZ Camera with 4X Optical Zoom

Pan & Tilt
4X Optical Zoom
Power over Ethernet
IP66 Waterproof
Please note that this is a refurbished product.

5 Megapixels Super HD

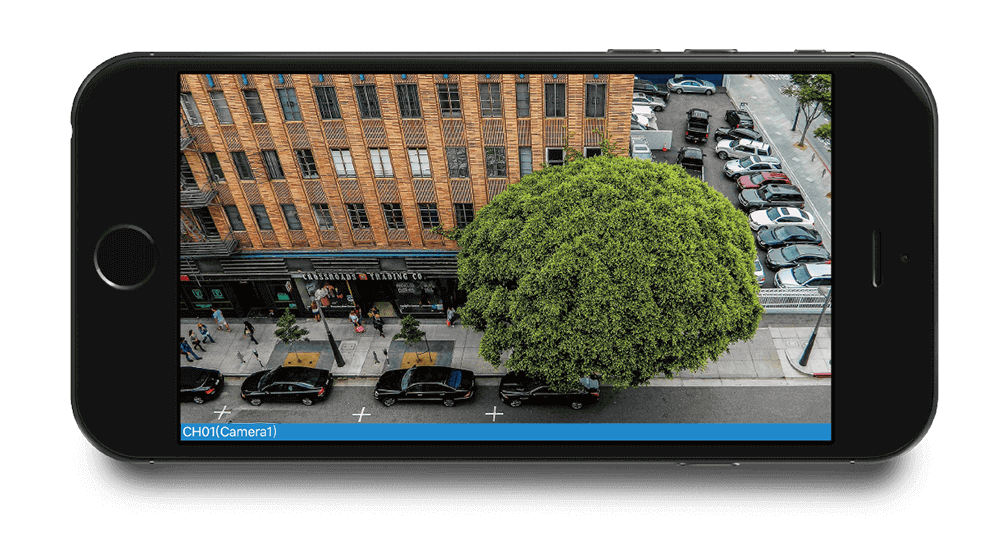

5MP RLC-423 (Refurbished) is with a pixel resolution of 2560x1920, that is, 2.4X the resolution of 1080p Full HD, and even 1.3X the resolution of 1440p Super HD. You will definitely have the best chance to see every image detail as you wish.

The video shared by Charles S., a Reolink customer.

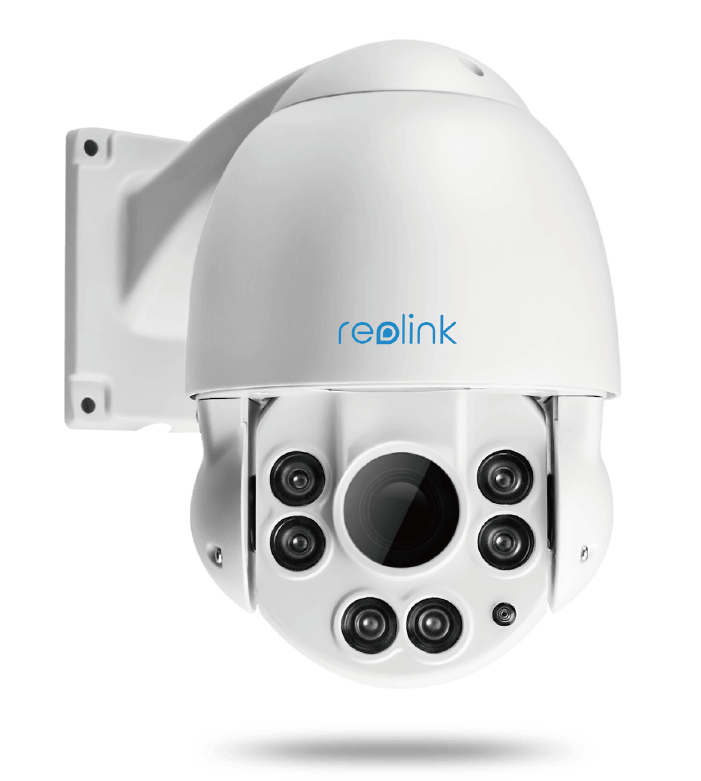

Incredible Night Vision — Up to 190ft

This excellent RLC-423 (Refurbished) night vision security camera provides you 24/7 continuous monitoring and home surveillance. 6pcs of Infrared LEDs enable a super long-distance night vision – up to 190ft in low light conditions, where normal security systems fail to work.

5.3 mm  X  6 pcs

Infrared LEDs

190 feet

Night vision*

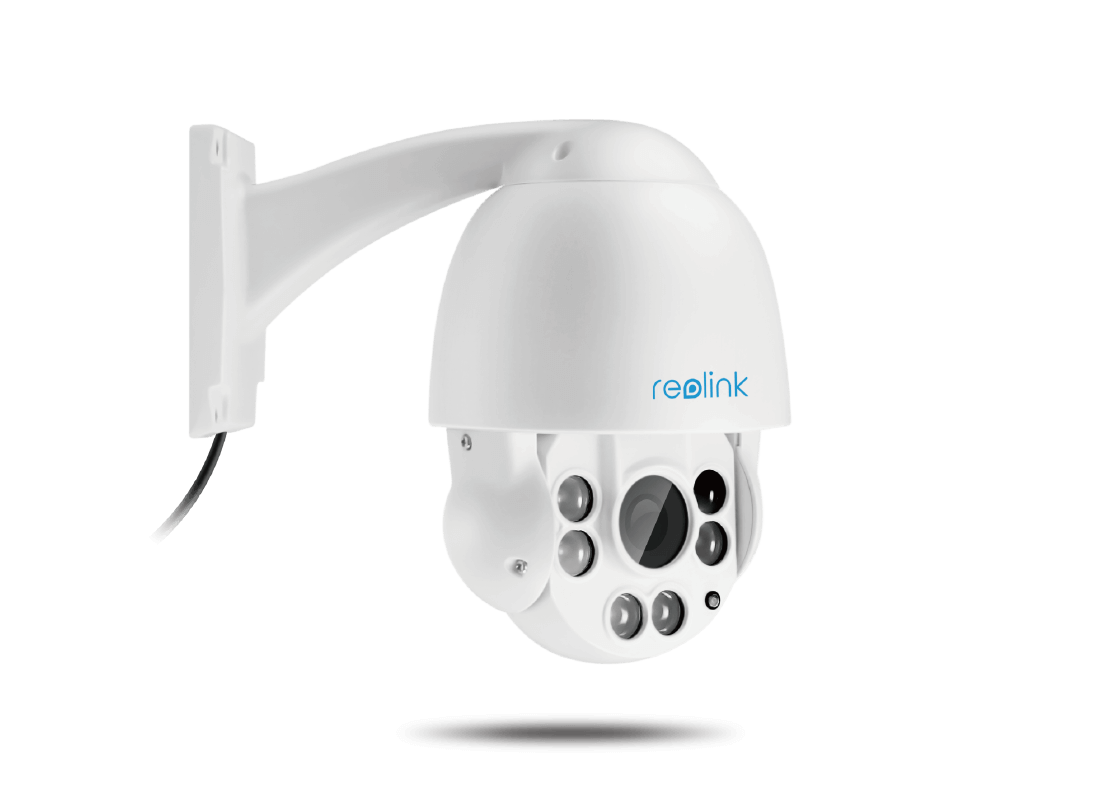

The Most Powerful PTZ IP Camera Ever

360°
Endless Pan
90°
Tilt
4X
Optical Zoom

Impressive 4X Optical Zoom

RLC-423 (Refurbished) comes with a motorized zoom lens, allowing you to see from a wide viewing angle (31°~87°*). 4X optical zoom lets you zoom in to see more details of far-away objects without getting closer, or zoom out to get a wider and larger view.

31°~87°

Viewing angle*

2.7mm - 12mm

Motorized lens

31°~87°

Viewing angle*

2.7mm - 12mm

Motorized lens

360° Endless Pan

With pan function, Reolink RLC-423 (Refurbished) PTZ security camera can rotate 360° endless horizontally at high speed.

90° Tilt

The tilt rotation at 90° makes a reliable home and business monitoring and surveillance without vertical limitations.

With 360° horizontally and 90° vertically rotating, and 4 times zooming in and zooming out, RLC-423 (Refurbished) delivers a seamless live view, leaving no “dead area”.

Real-Time Motion Alerts

Whenever a danger is detected, RLC-423 (Refurbished) will alert you instantly. Replay the motion clips in the micro SD card or FTP server to learn what happened just now.

You can also customize specific motion zones or detection sensitivity  to receive the wanted alerts and avoid the unwanted.

kit-email kit-app kit-sdKard kit-ftp

Email

30-second motion clips or photo sent to you.

App

Push notifications to your mobile device.

Micro SD Card (Optional)

Support 128GB micro SD card to save motion events.

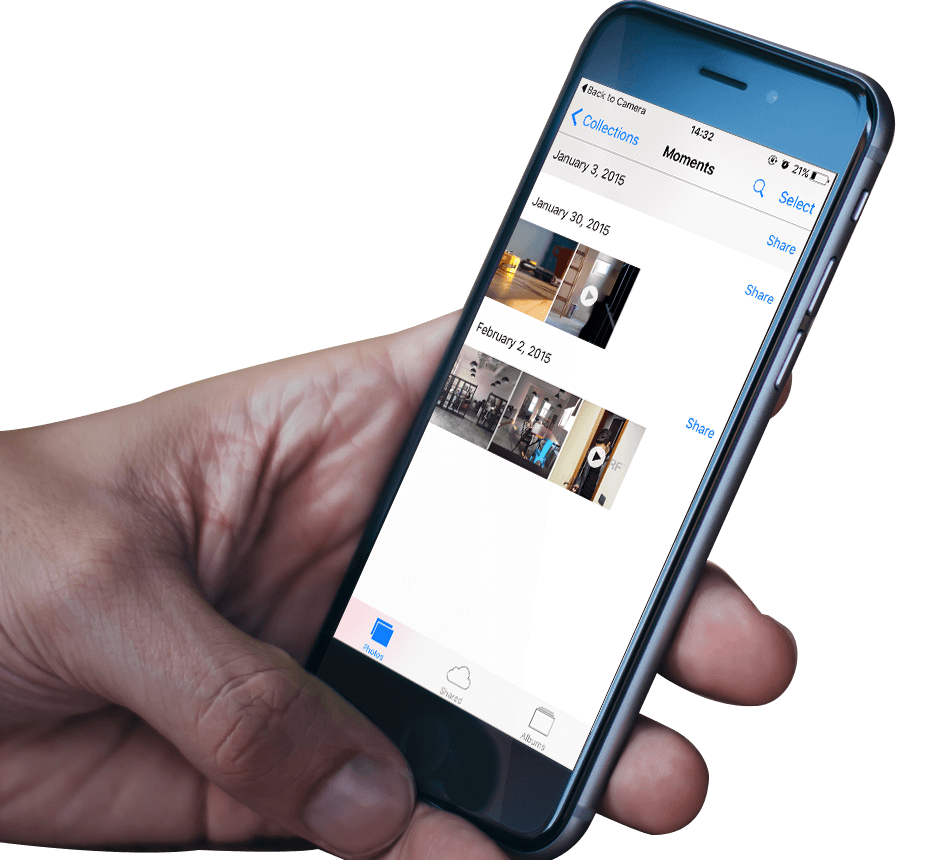

FTP

Save captured images & videos to an FTP server.

Remote Access Has Never Been So Easy

Wherever you are, you can remotely access RLC-423 (Refurbished) PTZ network camera to get live streaming, and stay aware of your home and business in three ways: free Reolink App on your mobile device, free Reolink Client on your computer or web browsers (IE, Google Chrome, Microsoft Edge, Safari, and Firefox).

Download for macOS Download for Windows

An Easier, More Simplified Way to Install

Power over Ethernet (PoE) helps to transmit videos and power via just one network cable. Compared to traditional non-PoE security cameras, RLC-423 (Refurbished) PTZ PoE IP camera reduces the number of wires, and has greater installation flexibility, which suits DIY enthusiasts.

Waterproof Design for Excellent Outdoor Surveillance

The aluminum alloy body and housing make the PTZ IP camera an IP 66 waterproof rating. So RLC-423 (Refurbished) PTZ outdoor surveillance camera works perfectly outside even in harsh weather conditions.

The aluminum alloy body and housing make the PTZ IP camera an IP 66 waterproof rating. So RLC-423 (Refurbished) PTZ outdoor surveillance camera works perfectly outside even in harsh weather conditions.

IP66 Certified Weatherproof

24/7 or Motion Recording, You Decide

This IP camera supports both motion-activated recording and continuous recording. 24/7 recording is ideal in high-traffic areas like store entrances, while in lower activity regions like warehouses or at night, motion recording can help you save storage space.

Motion Clips in Micro SD Card

Supports up to 128GB micro SD card (not included).

12.1
hours

32GB

24.2
hours

64GB

48.5
hours

128GB

Figure based on the default bit rate of the cam (6144 kbps). Actual recording time depends on the settings. Results may vary. Learn more

* Some RLC-423 (Refurbished) may not have a micro SD card slot.

Continuous Recording

This 5MP PoE security camera can record continuously when you connect the cam to a Reolink NVR or video surveillance system, or set up FTP server to save videos without missing a beat.

• FTP server

• Reolink NVR

* Reolink NVRs are recommended for best performance.

Free Firmware Update — Easy, Quick and Flexible

Reolink firmware update for IP security cameras is very easy – download firmware on the firmware page and update the firmware on the client software. All is free! Learn More

IMPORTANT!

Before upgrading, make sure the firmware you selected applies to the hardware version of your camera; improper firmware will result in compatibility issues. Click and learn:

How to Find out System Information via Reolink Software

To perform the upgrade step by step, click and learn:

How to Upgrade the Firmware for Reolink Products

Having issues upgrading? Please contact support@reolink.com.

*Data based on internal lab testing.

Compare with Similar Products

What’s in the Box & Setup Guide (with Video) What's in the Box

*The data on the pages above are obtained under specific test conditions. Actual use may vary.

Specifications

Video & Audio

Video Resolution

Default: 5.0 Megapixels

Video Format

H.264

Angle of View

Horizontal: 87°~31°, Vertical: 65°~24°

Day/Night Mode

Auto-switching with IR-cut filter

Min. Illumination

0 Lux (with IR Illuminator)

Infrared Night Vision

60 meters (190ft)

Optical Zoom

4X

Power

POE

IEEE 802.3at, 48V active

DC Power

DC 12.0V=2A, <20W

Interface

Power

DC power port

System

Reset Button

Ethernet

One 10M/100Mbps; RJ45

Audio

Microphone connector (an extra microphone is required for audio recording)

Pan&Tilt

Pan &Tilt Range

Pan: 360°, Tilt: 0°~90°

Pan Speed

2.5°-180°/s (Speed can be set)

Tilt Speed

1.5°-90°/s (Speed can be set)

Preset

64

Patrol

1 Patrol; up to 16 presets per patrol

Power Memory

Support

Software Features

Frame Rate

Up to 25fps

OS Supported

PC: Windows, Mac OS; Smartphone: iOS, Android

Alarm

Motion detection

Record Mode

Motion recording

Max. User Access

20 users (1 admin account & 19 user accounts); Support up to 12 simultaneous video streams (10 substreams & 2 mainstreams).

Working Environment

Temperature

Operating temperature: -10°C ~ +55°C (14°F~131°F)

Humidity

Operating humidity: 20% ~ 85%

Size & Weight

Dimensions

Φ136 x 201mm

Weight

1.60kg

Warranty

Limited Warranty

1-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/.

The above data are provided by internal laboratories, and are obtained under specific test conditions. Actual use may vary due to settings, use conditions and environmental factors.
