RLC-422W 5MP Dual-Band WiFi Security IP Camera

5MP Super HD, 2.4/5 GHz WiFi
4X Optical Zoom

4X Optical Zoom

Dual-Band WiFi

IK10 Vandal Proof

IP66 Waterproof

Sale ends on





Buy at Amazon

Thanks for your interest. Follow us on Facebook
and Twitter @ReolinkTech for more updates.

Please enter a valid email address.

Server Error

Duplicate Submission. You have submitted successfully.
No need of repeated submission.

Submission Failed. Please try again later.

Help Me Choose

Incredibly Clear Videos in 5MP; More Details Captured

Higher resolution means more image details to be captured. RLC-422W 5-megapixel wireless security camera has a pixel resolution of 2560x1920, that is, 2.4X the resolution of 1080p Full HD, and even 1.3X the resolution of 1440p Super HD. You will definitely have the best chance to see every image detail as you wish.

The video shared by Charles S., a Reolink customer.

Impressive 4X Optical Zoom

RLC-422W dome IP camera outdoor features auto focus lens, along with the viewing angle varying from 31°~90°. With 4X optical zoom, you can zoom in to see more details of far-away objects without getting closer, or zoom out to get a wider and larger view. The 4X optical zoom security camera never compromises in image and video quality (5 megapixels).


Viewing angle


Motorized lens


Viewing angle


Motorized lens

Dual-Band WiFi Stronger Network Signals

Reolink wireless cameras are the first dual-band WiFi security cameras in the world. No worries about network offline.

2.4 GHz

5 GHz

Dual-band WiFi


MIMO antennas


Can be easily installed outdoor and indoor your house. No messy cabling.

2.4 GHz band and 5 GHz band

More options available, and guarantee that you never suffer from signal loss and interference.

2T2R MIMO antennas

Stronger network signals, even in 164 feet long distance (in open areas).

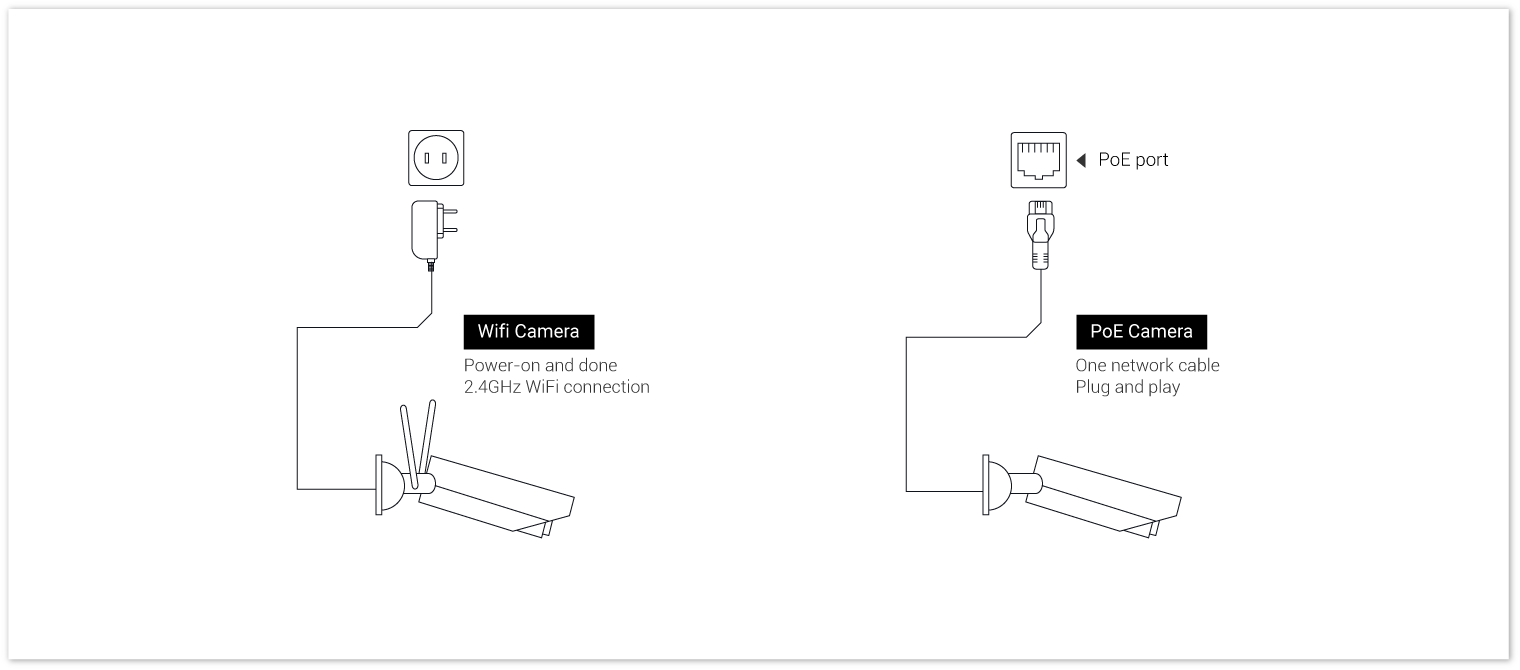

Compare with the PoE Camera

Good Night Vision, for Peace of Mind at Night

24pcs infrared LEDs and advanced IR technology make Reolink RLC-422W an excellent night vision security camera, letting you see any event clearly even in the dark. With a long night vision distance up to 100 feet, you can accurately identify people present in the event through videos captured by RLC-422W video surveillance camera.

24 pcs

Infrared LEDs

100 feet

Night vision


Viewing angle

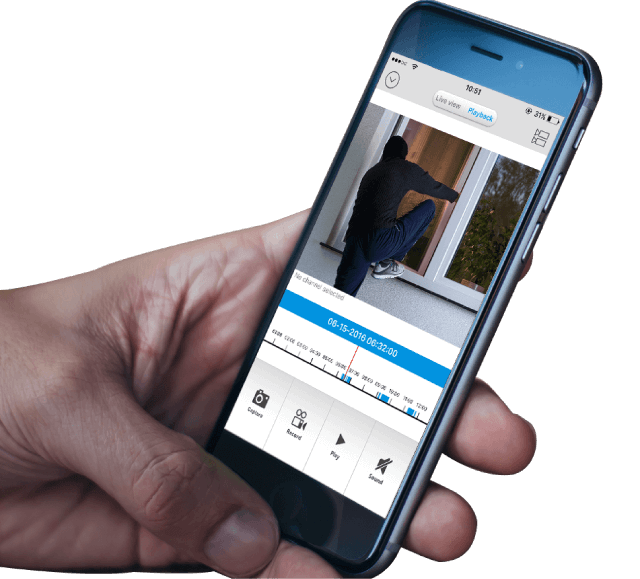

Motion Detection Lets You Never Miss a Thing

Reolink RLC-422W surveillance camera can trigger alerts when something is detected. Whenever an invasion happens, the camera will:

Send alert emails and push notifications.

Upload videos and images to an FTP Server. Protect your home and business from burglars and intruders without effort!

Record and save motion-detected videos to your inserted Micro SD card (can be up to 64GB), or your Reolink NVR.

kit-email kit-app kit-ftp


Email photos or
30-second video clips


Push notifications to
your mobile device


Save and upload captured images & videos to an FTP server

On the Motion Detect Setup interface, you can feel free to:

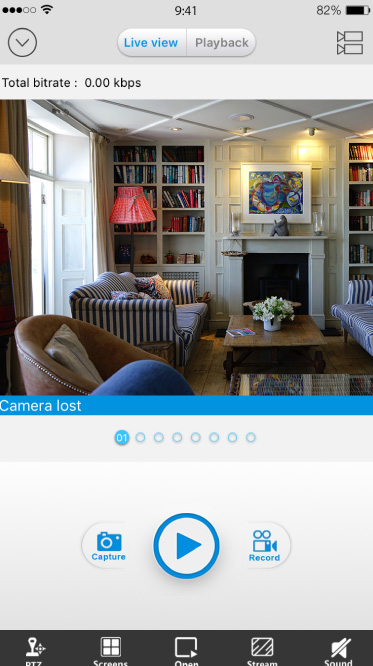

Remote Access Lets You Stay Informed Wherever

Wherever you are, you can remotely access RLC-422W network IP camera to get live streaming, and stay aware of your home and business in three ways: free Reolink App on your mobile device, free Reolink Client on your computer or web browsers (IE, Google Chrome, Microsoft Edge, Safari, Firefox, etc.).

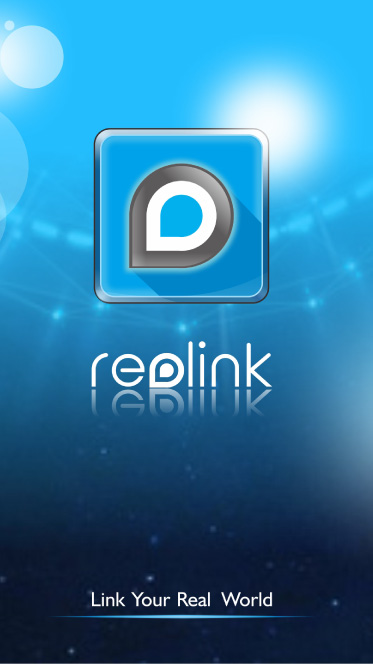

Remote Viewing Can Be Realized in 3 Simple Steps

  • 1

    Install App

    Install the free App on your smartphone

  • 2

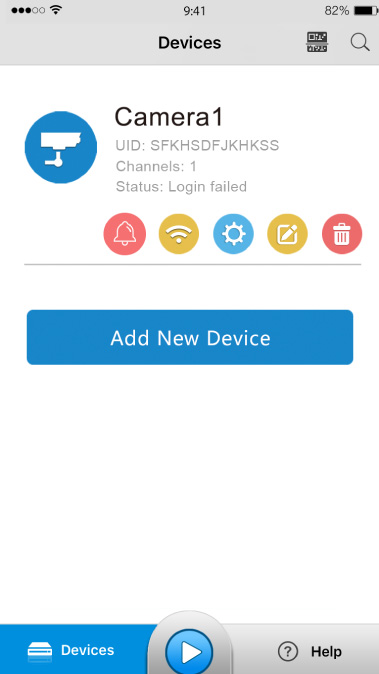

    Scan to automatically add Reolink IP camera

  • 3

    View Camera

    Click the network camera to get the live view

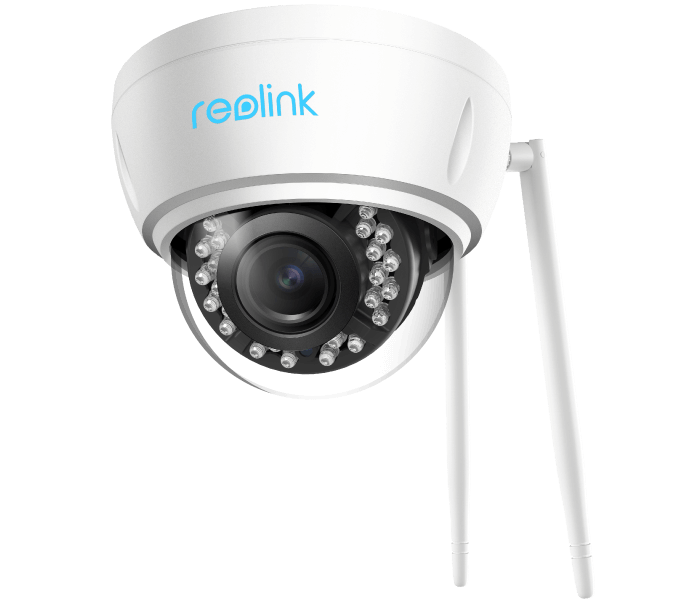

Waterproof & Vandal-Proof for Outdoor Use

One of the best outdoor security cameras ever, with IP66 waterproof IP rating and IK10 vandal resistant rating! RLC-422W can withstand external mechanical impact, and work perfectly even in bad weather.

Work with Reolink NVR for 24/7 Reliable Recording

If you have multiple IP cameras or if you want 24/7 recording, a Reolink NVR is your best choice. The NVR works perfectly and efficiently with the cameras for round-the-clock monitoring and recording for your home & business security and surveillance.

* All Reolink security cameras work with Reolink NVRs ONLY.

Free Firmware Update — Easy, Quick and Flexible

Reolink firmware update for IP security cameras is very easy – download firmware on the firmware page and update the firmware on the client software. All is free! Learn More

What's in the Box


RLC-422W IP Camera




Power Adapter


1m Network Cable


4.5m Power Extension Cable


Quick Start Guide


Surveillance Sign


Mounting Hole Template


Installation Guide


Pack of Screws




Download Specifications Download as PDF

Model RLC-422W
Video Image Sensor 1/2.7" CMOS Sensor
Effective Pixels 2560x1920 (5.0 Megapixels)
Lens f=2.7-12mm Auto-focus, F=1.6
Angle of View Horizontal: 90° ~ 31°; Vertical: 67° ~ 24°
Day/Night Mode Auto Switchover
Min. Illumination 0 Lux (With IR Illuminator)
IR Distance 30 Meters (LED: 24pcs/14mil/850nm)
Backlight Compensation Support
Noise Reduction 3D DNR
Compression H.264
Resolution Main Stream: 2560x1920, 2560x1440, 2048x1536, 2304x1296; Sub Stream: 640x480
Bitrate Main Stream: 1024Kbps ~ 8192Kbps; Sub Stream: 64Kbps ~ 512Kbps
Frame Rate Main Stream@15fps, Sub Stream@6fps
Network Interface One 10M/100Mbps RJ45
Browser Supported IE, Edge, Chrome, Firefox, Safari
OS Supported PC: Windows, Mac OS; Smartphone: iOS, Android
Max. User Access 20 Users (1 admin account & 19 user accounts); Support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
Storage Micro SD socket; Support motion detection recording
WiFi Wireless Standard IEEE 802.11a/b/g/n
Operating Frequency 2.4GHz/5GHz
Wireless Security WPA-PSK/WPA2-PSK
General Power Supply DC12V
Power Consumption <10W
Working Environment -10℃~+55℃(14°F~131°F), Humidity: 10%~90%
Ingress Protection IP66
Dimensions Φ133x100mm
Weight 720g


Connections and Expansion


Direction Adjustment

Only Manual Rotation See how
