RLC-420 5MP/4MP PoE Dome Security IP Camera

5MP/4MP Super HD, Easy PoE

Power over Ethernet

With Audio (Mic)

IP66 Waterproof

Motion Detection

-

Choose an option

Buy at Amazon

Thanks for your interest. We'll keep you updated when ready!
Follow us on Facebook and Twitter @ReolinkTech for more updates.

Please enter a valid email address.

Server Error

Duplicate Submission. You have submitted successfully.
No need of repeated submission.

Submission Failed. Please try again later.

Help Me Choose

An Incredible 5MP/4MP Super HD IP Camera

RLC-420 has versions of 5MP and 4MP:

5MP RLC-420 with a pixel resolution of 2560x1920, that is, nearly 2.4X the resolution of 1080p Full HD, and even 1.3X the resolution of 1440p. It sees your home security more clearly, with more details.

4MP RLC-420 with 2560x1440 high resolution to capture beautiful and smooth 4-megapixel live video streaming and video clips than 720p and 1080p cameras. No details will be missed!

advantage

The video shared by Neil B., a Reolink customer.

Good Night Vision, for Peace of Mind at Night

18pcs infrared LEDs and advanced IR technology make Reolink RLC-420 an excellent night vision security camera, letting you see any event clearly even in the dark.
With a long night vision distance up to 100 feet, you can accurately identify people present in the event through videos captured by RLC-420 video surveillance camera.

18 pcs

Infrared LEDs

100 feet

Night vision

80°

Viewing angle

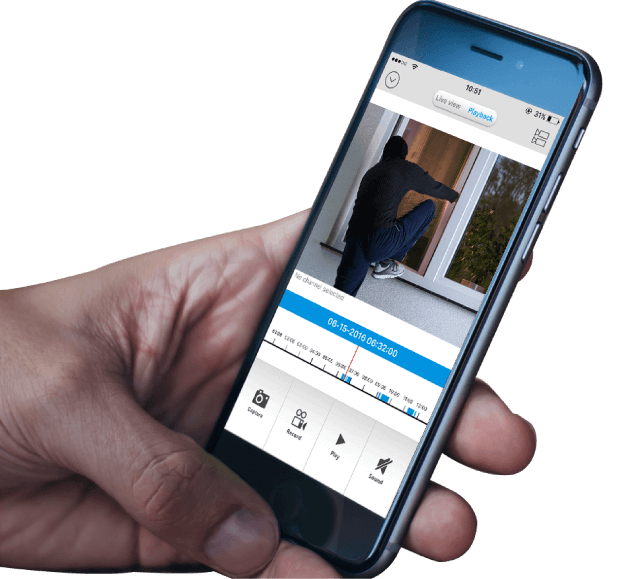

Motion Detection — The Smartest Way Ever for Alerts

Whenever a danger is detected, Reolink RLC-420 network turret camera will trigger alerts by immediately sending alert e-mails and pushing notifications to your device. It also uploads and saves captured images/videos to an FTP server.

kit-email kit-app kit-ftp kit-sdKard

Email

Email photos
or 30-second video clips

App

Push notifications to your
mobile device

FTP

Save and upload captured images
& videos to an FTP server

SD Card (Optional)

5MP version comes with an SD card slot for SD card motion recording

On the Motion Detect Setup interface, you can feel free to:

PoE Makes Easier Wiring and Installation

The Power over Ethernet (PoE) is an advanced technology, which enables you to use a single network cable for both video and power transmission. Therefore, RLC-420 PoE HD security IP camera makes the wiring simplified and installation easier. The best choice for DIY enthusiasts!

Remote Access Lets You Stay Informed Wherever

  • Free Reolink App and Client software

    Let you see live videos and stay connected of your home and office when you are away.

  • Browsers

    Connect Reolink RLC-420 video surveillance camera on web browsers so you can view videos on IE, Google Chrome, Microsoft Edge, Firefox, and Safari.

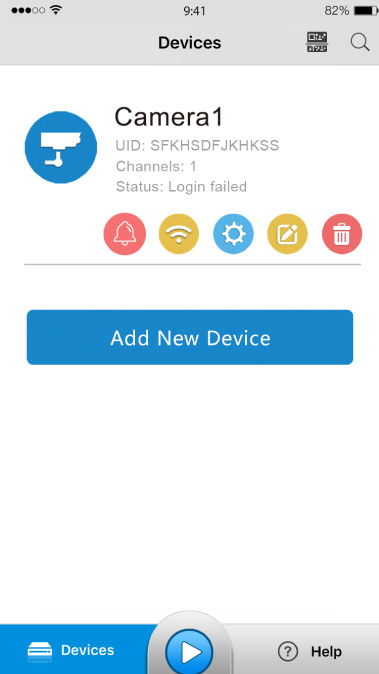

Remote Viewing Can Be Realized in 3 Simple Steps

  • 1

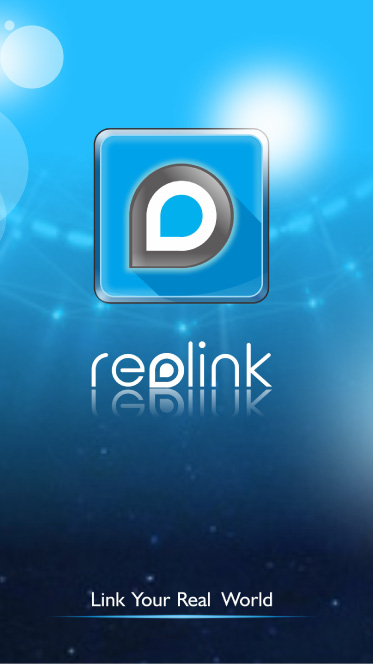

    Install App

    Install the free App on your smartphone

  • 2

    Scan

    Scan to automatically add the Reolink IP camera

  • 3

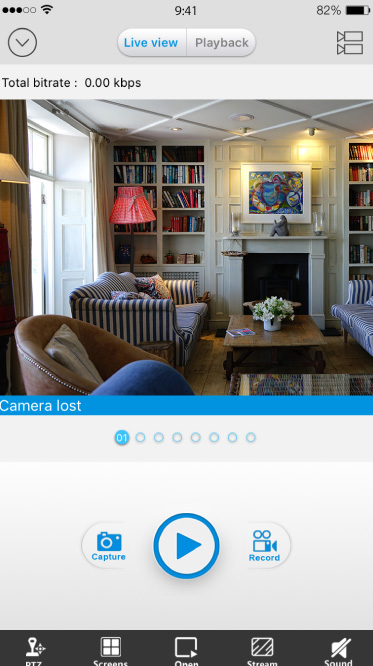

    View Camera

    Click the network camera to get the live view

A Perfect Waterproof Outdoor Security Camera

The aluminum body and housing makes Reolink RLC-420 camera waterproof (IP66) and enables outdoor use. RLC-420 outdoor dome IP camera works perfectly both inside and outside your house, in harsh weather conditions.

Work with Reolink NVR for 24/7 Reliable Recording

Reolink RLC-420 (5MP version) comes with a Micro SD card slot, which allows you to insert an SD card (up to 64GB) for motion event recording. But if you have multiple IP cameras or if you want 24/7 recording, a Reolink NVR is your best choice. The NVR works perfectly and efficiently with the cameras for round-the-clock monitoring and recording for your home & business security and surveillance.

* All Reolink security cameras work with Reolink NVRs ONLY.

Free Firmware Update — Easy, Quick and Flexible

Reolink firmware update for IP security cameras is very easy – download firmware on the firmware page and update the firmware on the client software. All is free! Learn More

What's in the Box

x1

RLC-420 IP Camera

x1

Waterproof Lid

x1

1m Network Cable

x1

Quick Start Guide

x1

Surveillance Sign

x1

Mounting Hole Template

x1

Installation Guide

x1

Pack of Screws

x1

Screwdriver

You May Also Be Interested In

rlc-422

RLC-422

5MP/4MP 4X Optical Zoom PoE Dome Security Camera; Vandal Resistant; 100ft Night Vision.

rlc-410

RLC-410

Most Popular 5MP/4MP HD PoE Outdoor IP Camera; 100ft Night Vision; Support Audio Recording.

rlc-423

RLC-423

5MP PoE PTZ Security Camera for 24/7 Surveillance; No Blind Spots; 190ft Night Vision.

Specification

Download Specifications Download as PDF

Camera Model RLC-420 (4MP Version)
Image Sensor 1/2.7" CMOS  Sensor
Effective Pixels 2560 x 1440 (4.0Megapixel)
Lens f=4.0mm Fixed, F=2.0
Angle of View Horizontal:  80°, Vertical:  42°
Day/Night Mode Auto Switchover
Min. Illumination 0 Lux (With IR Illuminator)
IR Distance IR Distance 30 Meters (LED: 18pcs/14mil/850nm)
Backlight Compensation Support
Noise Reduction 3D DNR
Video Compression H.264
Resolution Main Stream: 2560x1440, 2048x1536, 2304x1296;  Sub Stream: 640 x 480
Bitrate Main Stream: 1024Kbps ~ 8192Kbps,   Sub Stream: 64Kbps ~ 512Kbps
Frame Rate Main Stream@25fps, Sub Stream@6fps
Audio Interface  Built-in Microphone
Network Interface One  10M/100Mbps  RJ45
Network Protocol HTTPS, SSL, TCP/IP, UDP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Browser Supported  IE, Edge, Chrome, Firefox, Safari
OS Supported PC: Windows, Mac OS;  Smart Phone: iOS, Android
Max. User Access 20 Users (1 admin account & 19 user accounts); Support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
General Power Supply DC12V & PoE (IEEE 802.3af)
Power Consumption <8W
Working Environment -10~+55 (14°F~131°F), 10%~90%
Ingress Protection IP66
Dimensions Φ120 *77mm
Weight 480g

Download Specifications Download as PDF

Camera Model RLC-420 (5MP Version)
Image Sensor 1/2.7" CMOS Sensor
Effective Pixels 2560 x 1920 (5.0Megapixel)
Lens f=4.0mm F=2.0
Angle of View Horizontal: 80°, Vertical: 58°
Day/Night Mode Auto Switchover
Min. Illumination 0 Lux (With IR Illuminator)
IR Distance IR Distance 30 Meters (LED: 18pcs/14mil/850nm)
Backlight Compensation Support
Noise Reduction 3D DNR
Video Compression H.264
Resolution Main Stream: 2560x1920, 2560x1440, 2048x1536, 2304x1296; Sub Stream: 640 x 480
Bitrate Main Stream: 1024Kbps ~ 8192Kbps, Sub Stream: 64Kbps ~ 512Kbps
Frame Rate Main Stream@25fps, Sub Stream@6fps
Audio Interface Built-in Microphone
Network Interface One 10M/100Mbps RJ45
Network Protocol HTTPS, SSL, TCP/IP, UDP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Browser Supported IE, Edge, Chrome, Firefox, Safari
OS Supported PC: Windows, Mac OS; Smart Phone: iOS, Android
Max. User Access 20 Users (1 admin account & 19 user accounts); Support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
Storage Built-in Micro SD socket, support motion detect record
General Power Supply DC12V & PoE (IEEE 802.3af)
Power Consumption <8W
Working Environment -10℃~+55℃(14°F~131°F), 10%~90%
Ingress Protection IP66
Dimensions Φ120 *77mm
Weight 480g

Diagram

Connections and Expansion

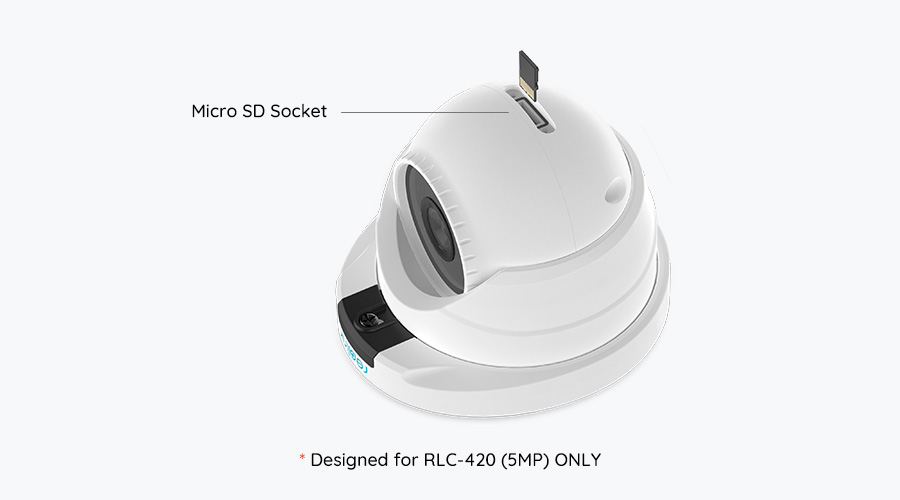

(The built-in micro SD socket is designed for RLC-420 5MP version ONLY.)

Size

Direction Adjustment

Only Manual Rotation
