reolink-argus

RLC-410W 5MP/4MP Dual-Band WiFi Security IP Camera

5MP/4MP Super HD, 2.4/5 GHz WiFi

Dual-Band WiFi

With Audio (Mic)

IP66 Waterproof

Motion Detection

-

Choose an option

Buy at Amazon

Thanks for your interest. Follow us on Facebook
and Twitter @ReolinkTech for more updates.

Please enter a valid email address.

Server Error

Duplicate Submission. You have submitted successfully.
No need of repeated submission.

Submission Failed. Please try again later.

Help Me Choose

Super HD: 5 Megapixels and 4 Megapixels

5MP RLC-410W with a pixel resolution of 2560x1920, that is, nearly 2.4X the resolution of 1080p Full HD, and even 1.3X the resolution of 1440p. It sees your home security more clearly, with more details.

4MP RLC-410W with 2560x1440 high resolution to capture beautiful and smooth 4-megapixel live video streaming and video clips than 720p and 1080p cameras. No details will be missed!

advantage

The video shared by Neil B., a Reolink customer.

Dual-Band WiFi Stronger Network Signals

Reolink wireless cameras are the first dual-band WiFi security cameras in the world, with 2.4 GHz band and 5 GHz band available, and 2T2R MIMO antennas. You will never worry about network off-line.

2.4 GHz

5 GHz

Dual-band WiFi

2T2R

MIMO antennas

Wireless

Can be easily installed indoor and outdoor your house. No messy cabling.

2.4 GHz band and 5 GHz band

More options available, and guarantee that you never suffer from signal loss and interference.

2T2R MIMO antennas

Stronger network signals, even in 164 feet long distance (in open areas).

Compare with the PoE Camera

Smart Motion Alerts Let You Never Miss What Matters

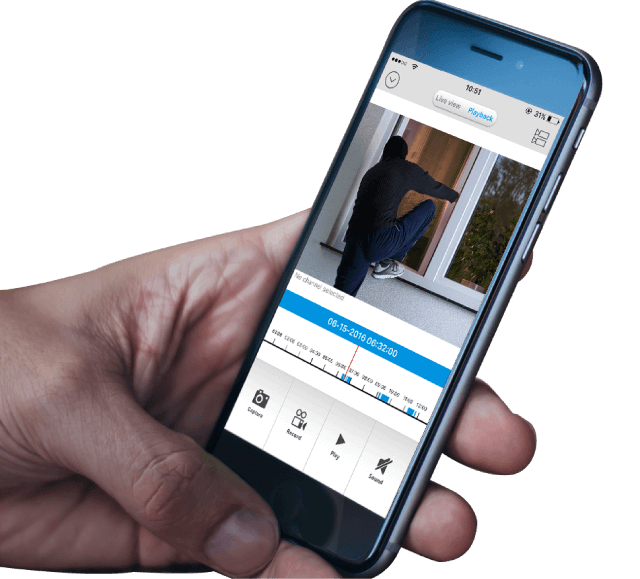

Detect any potential danger, by sending real-time email alerts and pushing notifications to your mobile device.

Upload and save captured images and videos to an FTP server and the Micro SD card you inserted into the cam.

Adjust motion detection sensitivity and create specific motion detecting zones as you like.

kit-email kit-app kit-ftp kit-sdKard

Email

Email photos or
30-second video clips

App

Push notifications to
your mobile device

FTP

Save and upload captured images & videos to an FTP server

SD Card (Optional)

Both 5MP and 4MP version come with an SD card slot for SD card motion recording.

The Easiest Way for Remote Access and Control

Wherever you are and whenever it is, you can remotely access the camera to get live streaming and monitor your home and business via:

● Free Reolink App on your mobile device
● Free Reolink Client on your computer
● A web browser, no plug-ins

Only 3 steps to use Reolink App/Client:

Install, scan, and view

High Quality Night Vision

This Reolink RLC-410W camera has a very good night image quality. With 18pcs LED lights and infrared radiation for 24-hour vigilance, the camera night vision range is up to 100 feet in the dark, good reassurance in terms of preventing security threat.

  • 18pcs

    Infrared LEDs

  • 100feet

    Night vision

  • 80°

    Viewing angle

Save Motion Events to a Micro SD Card (Optional)

RLC-410W comes with a memory card slot and you can insert a Micro SD Card (up to 64GB). It enjoys the following features:
● Record and save motion triggered videos onsite.
● Play back all recorded video history to miss no single details.
● Require no subscription fees as a cost-effective option.

Based on the camera bitrate by default (3072 kbps), below are the motion events Micro SD cards of different sizes can record:
● 16GB: 664 – 2160 motion events
● 32GB: 1328 – 4320 motion events
● 64GB: 2656 – 8640 motion events

Outdoor Waterproof Design

One of the best outdoor security cameras ever with IP66 waterproof IP rating! You can feel free to install it outdoor, like in your garage, backyard, or anywhere else. It can stand harsh weather conditions, including rain, snow, intense cold and heat.

Work with Reolink NVR for 24/7 Reliable Recording

If you have multiple IP cameras or if you want 24/7 recording, a Reolink NVR is your best choice. The NVR works perfectly and efficiently with the cameras for round-the-clock monitoring and recording for your home & business security and surveillance.

* All Reolink security cameras work with Reolink NVRs ONLY.

Free Firmware Update — Easy, Quick and Flexible

Reolink firmware update for IP security cameras is very easy – download firmware on the firmware page and update the firmware on the client software. All is free! Learn More

What's in the Box

x1

RLC-410W IP Camera

x1

Antenna

x1

Power Adapter

x1

1m Network Cable

x1

4.5m Power Extension Cable

x1

Quick Start Guide

x1

Surveillance Card

x1

Mounting Hole Template

x1

Pack of Screws

x1

Wrench

x1

Screwdriver

You May Also Be Interested In

rlc-511w

RLC-511W

5MP Dual-Band WiFi Bullet Outdoor/Indoor IP Camera; 4X Optical Zoom; with Micro SD Card Slot.

rlc-422w

RLC-422W

5MP Dual-Band WiFi Dome Security Camera; 4X Optical Zoom, Vandal-Proof, Micro SD Card Slot.

c2-pro

C2 Pro

5MP Pan, Tilt & Zoom Wireless Smart Camera; See and Talk to Babies, Elders, Nannies and Pets.

Specification

Download Specifications Download as PDF

Camera Model RLC-410W (4MP Version)
Image Sensor 1/2.7" CMOS Sensor
Effective Pixels 2560 x 1440(4.0Megapixel)
Lens f=4.0mm F=2.0
Angle of View Horizontal: 80°, Vertical: 42°
Day/Night Mode Auto Switchover
Min. Illumination 0 Lux (With IR Illuminator)
IR Distance IR Distance 30 Meters(LED: 18pcs/14mil/850nm)
Backlight Compensation Support
Noise Reduction 3D DNR
Video Compression H.264
Resolution Main Stream: 2560x1440, 2048x1536, 2304x1296; Sub Stream: 640 x 480
Bitrate Main Stream: 1024Kbps ~ 8192Kbps, Sub Stream: 64Kbps ~ 512Kbps
Frame Rate Main Stream@15fps, Sub Stream@6fps
Audio Interface Built-in Microphone
Network Interface One 10M/100Mbps RJ45
Network Protocol HTTPS, SSL, TCP/IP, UDP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Browser Supported IE, Edge, Chrome, Firefox, Safari
OS Supported PC: Windows, Mac OS; Smart Phone: iOS, Android
Max. User Access 20 Users (1 admin account & 19 user accounts); Support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
Storage Built-in Micro SD socket, support motion detect record
WiFi Wireless Standard IEEE 802.11a/b/g/n
Operating Frequency 2.4GHz / 5GHz
Wireless Security WPA-PSK/WPA2-PSK
General Power Supply DC12V
Power Consumption <8W
Working Environment -10℃~+55℃(14°F~131°F), 10%~90%
Ingress Protection IP66
Dimensions Φ67 x 186mm
Weight 425g

Download Specifications Download as PDF

Camera Model RLC-410W (5MP Version)
Image Sensor 1/2.7" CMOS Sensor
Effective Pixels 2560 x 1920 (5.0 Megapixels)
Lens f=4.0mm F=2.0
Angle of View Horizontal: 80°, Vertical: 58°
Day/Night Mode Auto Switchover
Min. Illumination 0 Lux (With IR Illuminator)
IR Distance 30 Meters (100ft) (LED: 18pcs/14mil/850nm)
Backlight Compensation Support
Noise Reduction 3D DNR
Video Compression H.264
Resolution Main Stream: 2560x1920, 2560x1440, 2048x1536, 2304x1296; Sub Stream: 640 x 480
Bitrate Main Stream: 1024Kbps ~ 8192Kbps, Sub Stream: 64Kbps ~ 512Kbps
Frame Rate Main Stream@15fps, Sub Stream@6fps
Audio Interface Built-in Microphone
Network Interface One 10M/100Mbps RJ45
Network Protocol HTTPS, SSL, TCP/IP, UDP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Browser Supported IE, Edge, Chrome, Firefox, Safari
OS Supported PC: Windows, Mac OS; Smart Phone: iOS, Android
Max. User Access 20 Users
Storage Built-in Micro SD socket, support motion detect record
WiFi Wireless Standard IEEE 802.11a/b/g/n
Operating Frequency 2.4GHz / 5GHz
Wireless Security WPA-PSK/WPA2-PSK
General Power Supply DC12V
Power Consumption <10W
Working Environment -10℃~+55℃(14°F~131°F), 10%~90%
Ingress Protection IP66
Dimensions Φ67 x 186mm
Weight 350g

Diagram

Connections and Expansion

Size

Direction Adjustment

1. Twist it with the wrench to unlock, and adjust the cam (green part) in any directions.

2. After adjustment, twist it back to lock it.

3. Store the wrench here for later use.
