RLC-410

Most Popular 5MP PoE Security IP Camera

Power over Ethernet
Audio Recording
IP66 Waterproof
Motion Detection

Note: There are two versions of this product’s mount. And we will ship one of them randomly.

* These two versions of the mount differ in the way of adjusting the camera angle.
Version 1
Version 2

5 Megapixels Super HD

5MP RLC-410 with a pixel resolution of 2560x1920, that is, nearly 2.4X the resolution of 1080p Full HD, and even 1.3X the resolution of 1440p. It sees your home security more clearly, with more details.

The video shared by Neil B., a Reolink customer.

An Excellent Night Vision Camera

Great cameras aren't just measured by images in daytime. Reolink RLC-410 security camera stands out for its incredibly excellent images at night.

18pcs Infrared LEDs enable long night vision distance (up to 100ft). RLC-410 HD infrared night vision surveillance camera captures crystal clear video evidence of theft and vandalism that occur in low-light conditions where standard security cameras won't work.

  • 18pcs

    Infrared LEDs

  • 100feet

    Night vision*

  • 80°

    Viewing angle*

Motion Detection — Smartest Way for Alerts

Whenever a danger is detected, this IP surveillance camera will trigger alerts by immediately sending alert e-mails and pushing notifications to your device. It also captures and saves images/videos at the same time.

You can customize the motion zone to your like, deciding where objects’ movements will be detected and where they will not.

You can adjust motion detection sensitivity to reduce false alerts.

kit-email kit-app kit-ftp kit-sdKard

Email

Email photos or
30-second video clips

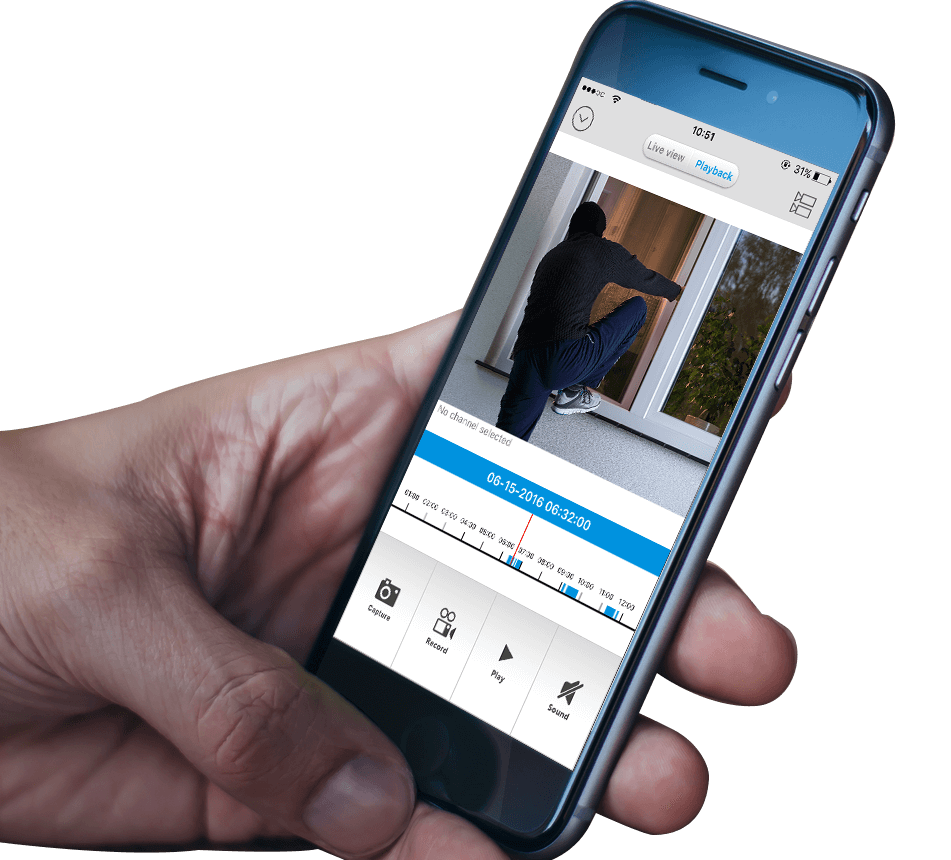

App

Push notifications to
your mobile device

FTP

RLC-410 can save and upload captured images & videos to an FTP server

SD Card (Optional)

This IP cam comes with an SD card slot for SD card motion recording

Only 3 Simple Steps

Use Reolink App and Client to Access the Camera

install-app
Install

Install free Reolink software on your device

launch
Launch

Open to add the camera

view-camera
View Camera

Click the camera to get Live View

Remote Access Has Never Been So Easy

Free Reolink App

Get live streaming and other control on your iOS or Android mobile device, so you stay informed whenever there is a thing.

Free Reolink Client software

View live feed, do 24/7 recording, playback video, and control several cameras directly on your PC or Mac.

Browsers

Access and connect the Reolink security cameras on web browsers, including Google Chrome, Microsoft Edge, Safari, and Firefox.

You can stay connected from anywhere, and if there is a thing happening, you will receive emails and notifications, alerting you to dealing with the emergency timely.

PoE Makes Easier Wiring and Installation

The Power over Ethernet (PoE) is an advanced technology, which enables you to use a single network cable for both video and power transmission. Therefore, RLC-410 PoE HD security IP camera makes the wiring simplified and installation easier. The best choice for DIY enthusiasts!

Waterproof Work Perfectly Outdoor as Well as Indoor

Reolink RLC-410 outdoor and indoor IP home surveillance camera is with an IP66 waterproof rating. So you can feel free to install it outdoors, like in your garage, backyard, or anywhere else. It can stand harsh weather conditions, including rain, snow, intense cold and heat.

Reolink RLC-410 outdoor and indoor IP home surveillance camera is with an IP66 waterproof rating. So you can feel free to install it outdoors, like in your garage, backyard, or anywhere else. It can stand harsh weather conditions, including rain, snow, intense cold and heat.

IP66 Certified Weatherproof

Waterproof 4K PoE 8-Channel CCTV System Indoors and Outdoors

24/7 or Motion Recording, You Decide

This IP camera supports both motion-activated recording and continuous recording. 24/7 recording is ideal in high-traffic areas like store entrances, while in lower activity regions like warehouses or at night, motion recording can help you save storage space.

Motion Clips in microSD Card

RLC-410 comes with microSD card slot and supports up to 128GB SD card (not included).

12.1
hours

32GB

24.2
hours

64GB

48.5
hours

128GB

Figure based on the default bit rate of the cam (6144 kbps). Actual recording time depends on the settings. Results may vary. Learn more

Continuous Recording

This PoE security camera can record continuously when you connect the cam to a Reolink NVR or video surveillance system, or set up FTP server to save videos without missing a beat.

• FTP server

• Reolink NVR

* When you plan to buy an NVR, recommended to use Reolink NVR for best compatibility.

Free Firmware Update — Easy, Quick and Flexible

Reolink firmware update for IP security cameras is very easy – download firmware on the firmware page and update the firmware on the client software. All is free! Learn more

*Data based on internal lab testing.

Comparison

What’s in the Box & Setup Guide (with Video) What's in the Box

*The data on the pages above are obtained under specific test conditions. Actual use may vary.

Specifications

Camera

Image Sensor

1/2.7" CMOS Sensor

Effective Pixels

2560x1920 (5.0 Megapixels)

Lens

f=4.0mm F=2.0

Angle of View

Horizontal: 80°, Vertical: 58°

Day/Night Mode

Auto Switchover

Min. Illumination

0 Lux (With IR Illuminator)

IR Distance

30 Meters (100ft) (LED: 18pcs/14mil/850nm)

Backlight Compensation

Support

Noise Reduction

3D DNR

Video

Compression

H.264

Resolution

Main Stream: 2560x1920, 2560x1440, 2048x1536, 2304x1296; Sub Stream: 640x480

Bitrate

Main Stream: 1024Kbps ~ 8192Kbps, Sub Stream: 64Kbps ~ 512Kbps

Frame Rate

Main Stream@30fps, Sub Stream@7fps

Audio

Interface

Built-in Microphone

Network

Interface

One 10M/100Mbps RJ45

Network Protocol

HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Browser Supported

Edge, Chrome, Firefox, Safari

OS Supported

PC: Windows, Mac OS; Smart Phone: iOS, Android

Max. User Access

20 Users (1 admin account & 19 user accounts); Support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

Storage

microSD card slot (Max.128GB)

General

Power Supply

DC12V & PoE (IEEE 802.3af)

Power Consumption

<10W

Working Environment

-10℃~+55℃(14°F~131°F), 10%~90%

Ingress Protection

IP66

Dimensions

Φ67 x 186mm

Weight

350g

Warranty

Limited warranty

2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/

The above data are provided by internal laboratories, and are obtained under specific test conditions. Actual use may vary due to settings, use conditions and environmental factors.
