NVS Series (D)

Intelligent 10MP UHD Kit for Complete Surveillance

Power over Ethernet
Person/Vehicle Detection
With 8 or 16-Channel NVR
2TB/4TB HDD Built-in
Stay Vigilant, Stay Reliable

"A Person/Vehicle Is Detected."

With advanced detection technology, RLK8-800D4 is capable of distinguishing people and cars from other objects, so you'll receive alerts that really matter. Reliable and free of charge!

With advanced detection technology, this security camera system is capable of distinguishing people and cars from other objects, so you'll receive alerts that really matter. Reliable and free of charge!

Person/Vehicle Detection Accurate Alerts Without Subscription

Exceptional Clarity Day & Night

Like Looking out of the Window

The sparkling 10MP Ultra HD camera is engineered to deliver insanely flawless videos in astounding clarity and superfine sharpness. It streams and records everything in 10MP, adding an extra layer of protection by more visible details and rich colors. When you view videos on Reolink App/Client, it feels like you are watching on the scene.

Keep a Watchful Eye at Night

Keep a Watchful Eye at Night

Each camera of the functional kit is equipped with 18pcs infrared LEDs, which makes it possible to detect activity up to 100 feet in darkness. It captures critical evidence even in low-light conditions, watching over your property from day to night.

Each camera of the functional kit is equipped with 18pcs infrared LEDs, which makes it possible to detect activity up to 100 feet in darkness. It captures critical evidence even in low-light conditions, watching over your property from day to night.

Easy Installation & Control

PoE — Faster, Easier & Lower-Cost Installation

Thanks to Power over Ethernet (PoE) technology, each camera of this security system can transmit videos and be charged simultaneously via only one network cable. You can install these cameras quickly and nicely.

  • Plug & Play
  • Reliable Connection

PoE Camera
Only needs a network cable

PoE Security Camera

Non-PoE Camera
Needs both a network cable and a power adapter

Non-PoE Security Camera

24/7 Continuous Recording

With a pre-installed 2TB/4TB HDD and the storage capacity of up to 12TB, this 10MP security camera system supports all cameras to record continuously at the same time. You will have all-day videos without missing a beat.

  • Built-in Seagate 2TB/4TB HDD
  • Up to 12TB

Seamless Protection

Home

Office

School

Warehouse

Works Well with Reolink PoE Camera

Based on your needs, you have various versions to choose from: NVS8-10MD4-A, NVS8-10MD6-A, NVS16-10MD8-A, and NVS16-10MD10-A.
You can also expand them to 8 or 16-camera kits by adding extra cameras.

* Reolink NVRs work with Reolink cameras ONLY.

Harsh Elements Are Not Troubles

The sturdy and stylish cameras in this kit are featured with an IP66 weatherproof rating. Enduring any severe weather condition, they are designed for indoor and outdoor use. You can mount the camera anywhere you want.

The sturdy and stylish cameras in this kit are featured with an IP66 weatherproof rating. Enduring any severe weather condition, they are designed for indoor and outdoor use. You can mount the camera anywhere you want.

IP66 Certified Weatherproof

Your World at Your Fingertips

Staying tuned with your home or business has never been so easy. With a few clicks on Reolink App or Client, watch live feed, be informed of the emergency, replay key moments and more – from anywhere, anytime.

  • Motion Alerts Once something suspicious is detected, the cameras will inform you by sending to your device an instant push notification or email. Know what’s happening all the time.
  • Multi-Cam Live Feed See the live feed of multiple cams on the same screen. Easier to have an overview of your property.
  • Smart Playback You can not only replay saved videos to find key information but also filter the video by detection modes and control the timeline to quickly locate what you want to see.
  • Record Scheduling You can choose to have the camera record 24/7 continuously, only when the movement is detected, or in accordance with your daily schedule.
  • Motion Zone You can customize the motion zone to your liking, deciding where objects’ movements will be detected and where they will not.
Comparison

Comparison

What's in the Box What’s in the Box & Setup Guide (with Video) What's in the Box

Please note: The cameras of the kit cannot work without the NVR.

*The data on the pages above are obtained under specific test conditions. Actual use may vary.

Hardware

Hardware

H3MB18/N2MB02/N3MB01

Video/Audio Input

IP Video Input

PoE IP Camera x 8

Audio Input

Cameras with built-in mic

Video/Audio Output

HDMI Output Resolution

3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768

VGA Output Resolution

1920x1080, 1280x1024, 1280x720, 1024x768

Audio Output

1-Channel, RCA

Decoding

Video Format

H.264, H.265

Live View / Playback Resolution

4096x3072, 3840x2160, 2560x1920, 2560x1440, 2048x1536, 2304x1296, 1080p, 720p

Synchronous Playback

Up to 4 channels

HDD

SATA

1 x SATA interface (1 x 2TB HDD included)

External HDD

1 eSATA Interface for HDD

Capacity

Up to 12TB (max. 6TB capacity for each HDD)

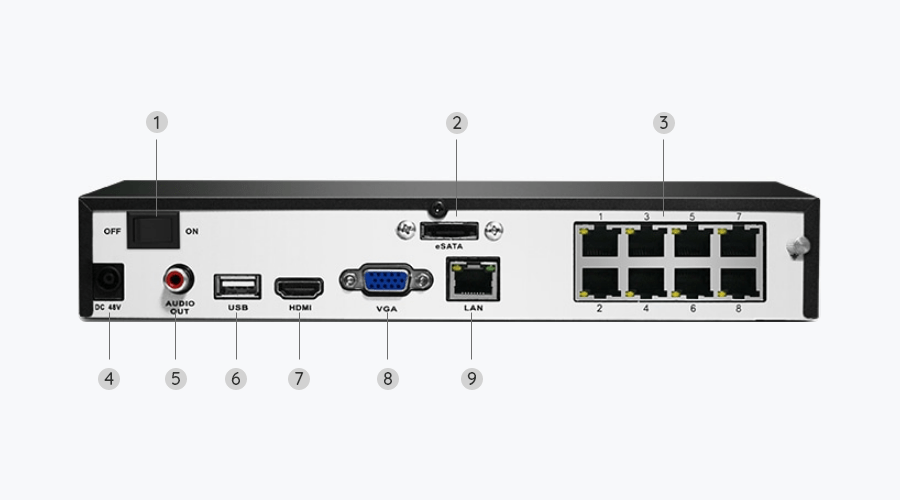

External Interface

USB Interface

2 x USB 2.0

Network Interface

• 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface for LAN/WAN

• 8, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera

PoE

Max. Power Per Port

25W

Supported Standard

IEEE 802.3af/at

Network

Network Protocols

HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP

Browsers Supported

Edge, Firefox, Chrome, Safari

OS Supported

PC: Windows, Mac OS; smartphone: iOS, Android

Max. User Access

20 users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

General

Power Supply

DC 48V~53V

Power Consumption

<10W (Without HDD&PoE)

Working Environment

Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90%

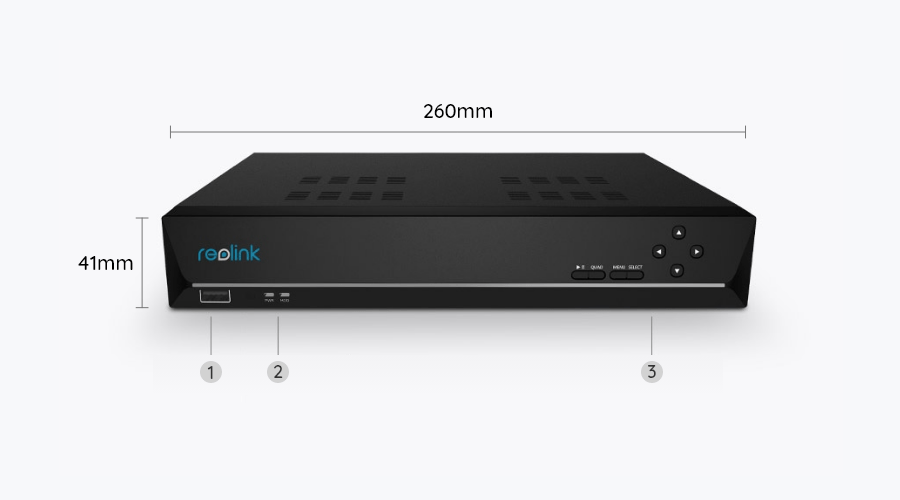

Dimensions

260 x 41 x 230mm

Weight

1.4kg

Warranty

Limited Warranty

2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/.

Hardware

Hardware

4TB HDD: N6MB01

Video/Audio Input

IP Video Input

PoE IP camera x 16

Audio Input

Cameras with built-in mic

Video/Audio Output

Video Output

VGA, HDMI

Display Resolution

• HDMI: 3840*2160, 1920*1080, 1280*1024, 1280*720, 1024*768

• VGA: 1920*1080, 1280*1024, 1280*720, 1024*768

Audio Output

1-channel, RCA

Decoding

Live View / Playback Resolution

4096*3072/3840*2160/2560*1920/2560*1440/2048*1536/2304*1296/1080p/720p

Video Format

H.265, H.264

Synchronous Playback

Up to 4 channels

HDD

SATA

2 x SATA interface (1 x 4TB HDD included)

Capacity

Up to 12TB (max. 6TB capacity for each HDD)

External HDD

No

External Interface

USB Interface

2 x USB 2.0

Network Interface

• 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface for LAN/WAN

• 16, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera

PoE

Max. Power Per Port

25W

Supported Standard

IEEE 802.3 af/at

Network

Network Protocol

HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP

Browser Supported

Firefox, Chrome, Edge, Safari

OS Supported

PC: Windows, Mac OS; smartphone: iOS, Android

Max. User Access

20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

General

Power Supply

DC 48V~54V

Power Consumption

<10W (without HDD & PoE)

Working Environment

Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90%

Dimensions

330 x 45 x 285mm

Weight

2.4kg

Warranty

Limited Warranty

2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/.

Note:

The cameras of the kit cannot work without the NVR.

Video & Audio

Image Sensor

1/2.49" CMOS Sensor

Video Resolution

Default: 4096 x 2512 (10.0 Megapixels) at 15fps

Lens

f=4mm F=2.0, with IR Cut

Video Format

H.265

Field of View

• Horizontal: 91°

• Vertical: 50°

Day & Night

IR-cut filter with auto-switching

Infrared Night Vision

30 meters (LED: 18pcs/14mil/850nm)

Audio

Audio recording

Software Features

Frame Rate

• Mainstream: 2fps - 15fps (default: 15fps)

• Substream: 4fps - 15fps (default: 10fps)

Code Rate

• Mainstream: 3072Kbps - 8192Kbps (default: 8192Kbps)

• Substream: 128Kbps - 1228Kbps (default: 1024Kbps)

Smart Alarm

Person detection/vehicle detection/motion detection

Working Environment

Temperature

-10°C - +55°C (14°F -131°F)

Humidity

10% ~ 90%

Waterproof

IP66

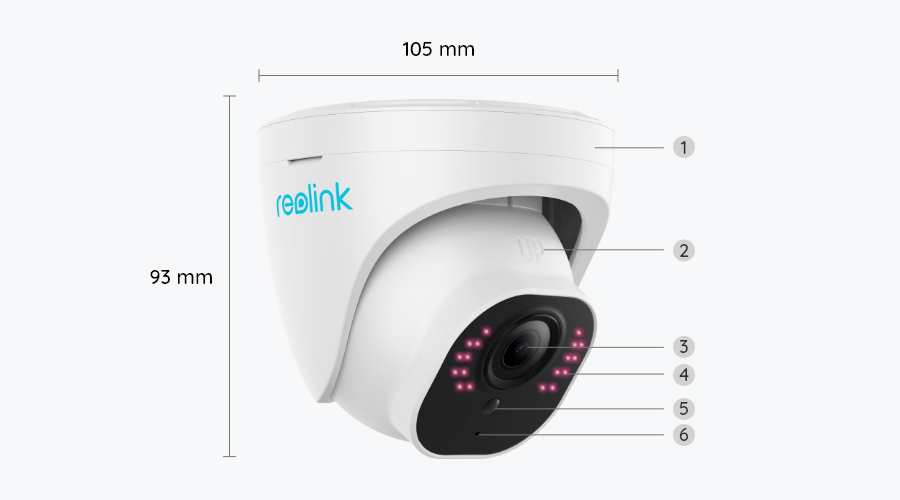

Size & Weight

Dimension

Φ105 x 95mm

Weight

467.5g

Warranty

Limited Warranty

2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/

The above data are provided by internal laboratories, and are obtained under specific test conditions. Actual use may vary due to settings, use conditions and environmental factors.
