Reolink Duo 2 PoE

Camera with Greater View than Ever

180° Panorama*
4K Ultra HD
Power over Ethernet

*Data based on internal lab testing.


Video & Audio

Image Sensor

1/2.7" CMOS Sensors

Video Resolution

Default: 4608X1728 (8.0 megapixels) at 20 fps


f = 3.2 mm fixed, F = 2.0

Video Format


Field of View

• Horizontal: 180°

• Vertical: 60°

Day & Night

Auto-switching with IR cut filter

Infrared Night Vision

30 meters (LED: 6pcs/20mil/850nm)

Color Night Vision

Spotlight: 8pcs/5W/6500K/560 Lumens


Two-way audio



IEEE 802.3af, 48V Active

DC Power

DC 12V⎓2A, <12W

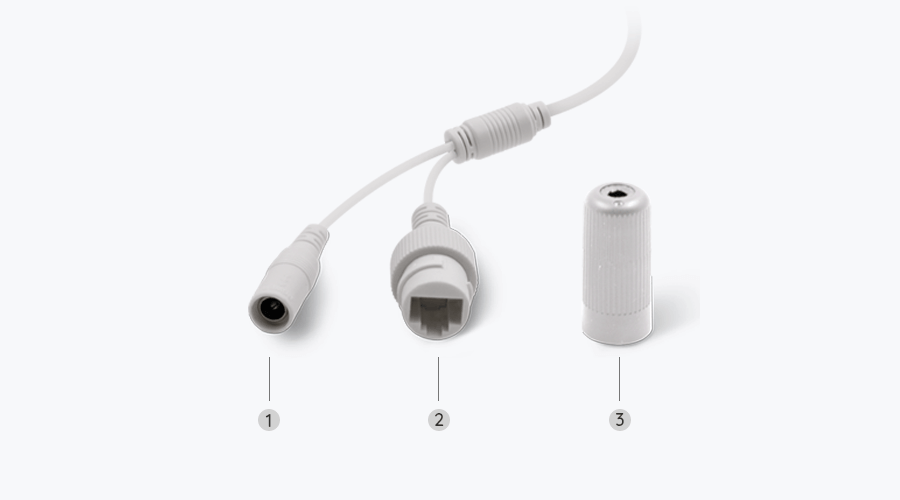

DC power port


Reset button


One 10M/100Mbps; RJ45


microSD card slot (Max. 256GB)


Built-in microphone and speaker

Software Features

Frame Rate

• Mainstream: 4fps - 20fps (default: 20fps)

• Substream: 4fps - 20fps (default: 10fps)

Code Rate

• Mainstream: 3072-10240Kbps (default: 8192kbps)

• Substream: 256-2048Kbps (default: 1024kbps)

Browser Supported

Edge, Chrome, Firefox, Safari

OS Supported

PC: Windows, Mac OS; Smartphone: iOS, Android

Smart Alarm

Motion detection; person detection; vehicle detection; pet detection

Record Mode

Motion-triggered recording (default); scheduled recording; 24/7 recording

Protocols & Standards


Maximal User Access

20 Users (1 admin account & 19 user accounts); Supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

Works with

Google Assistant

Working Environment


Operating temperature: -10°C~+55°C (14°F~131°F)


Operating humidity: 10% ~ 90%



Size & Weight


195x103x56 mm




Limited Warranty

2-year limited warranty. For support, visit

The above data are provided by internal laboratories, and are obtained under specific test conditions. Actual use may vary due to settings, use conditions and environmental factors.

Two Cameras in One

Upgraded from Duo PoE, Duo 2 PoE can stitch two views into one with no gap, realizing true two-camera combination. It brings a smoother image with double field of view and without overlapping part.


180° Panorama*

Gorgeous World in 4K UHD

The entire world is recorded in crystal clear videos with 4K high resolution and an expanded perspective. Every little detail will be finely captured.

Safe & Sound, Day & Night

Advanced Detection + Two-Way Audio

Reolink Duo 2 PoE has become more intelligent. It can not only detect moving people and vehicles, but also detect your cats and dogs. Also, with the built-in mic and speaker, it's quite easy to respond to the coming person, car, or pet.

Person/Vehicle Detection
Two-Way Audio
Pet Detection


Person detected from Duo 2 PoE.


Different Modes, Different Night World

Spotlights and infrared LEDs bring you a bright image at night. You can easily switch between different night vision modes to watch clear and smooth videos in color or in black and white.

  • 6 Infrared LEDs
  • 8 Spotlights

Easy Installation & Control

Dual Surveillance with One-Time Installation

Thanks to the PoE technology and the ultra-wide angle of the Duo 2 PoE, it is enough to achieve dual wide-field surveillance through just one network cable to transmit power and data. More convenience, more security.

  • Plug & Play
  • Reliable Connection
4K Smart PoE IP Camera

PoE Camera
Only needs a network cable

PoE Security Camera

Non-PoE Camera
Needs both a network cable and a power adapter

Non-PoE Security Camera

This video was shared by Mike M., a Reolink customer.

Cinematic Experience with Time Lapse

With the time lapse feature, Duo 2 PoE can let you capture dynamic processes, such as sunrise, in accelerated videos. Thinks about the co-effect of time lapse and 180° ultra-wide viewing angle and get ready to immerse yourself in the panoramic time-lapse films.

*Note: This feature is not available when the camera is connected to an NVR.

Perform Great Even in Bad Weather

Withstanding harsh weather outdoors is never difficult because of Duo 2 PoE's robust and waterproof housing. No fear of heat, cold, or powerful jets of water.

IP66 Waterproof

Flexible Storage Options

This smart IP camera supports 24/7 continuous recording, motion-triggered recording, and schedule recording. Videos can be saved to microSD card, Reolink NVR or FTP server. Choose a way you like and enjoy customized security.

microSD Card Slot

Supports up to 256GB microSD card (not included).







Figure based on the camera's default bitrate (8192 kbps). Actual recording time depends on settings. Results may vary. Learn more

Works with Reolink NVR

If you want to keep videos for much longer or have multiple cameras operating, it is a better choice to connect this camera to a compatible Reolink NVR or security camera system.

*Reolink Duo 2 PoE requires Reolink NVRs with newest hardware versions for ideal performance.

Easy to Control, Pleasant to Watch

It's never been so easy to remotely monitor your home or business. You can check everything in real time with just a few clicks or taps on the Reolink Client or App, wherever and whenever you are.

  • Accurate Alerts This IP camera activates alerts by sending real-time push notifications or email alerts to your device when a danger is detected.
  • Remote Live View Check your home when you're on the go, or see what's up with your kids when you're busy away from home, with the 180° wide-angle Duo 2 PoE.
  • Easy & Smart Playback Play back saved videos and use the filters and timeline to quickly find the key information you want to see.
  • Customized Motion Zone We highly value your privacy. You can customize the motion zone as you like, deciding where object movements will be detected and where not.
"Hey Google, show me the front door."
"Alexa, show me my front door."

Control Your Cameras, Hands-Free


Duo 2 PoE works with Google Assistant. As easy as saying "Hey Google, show me the front door", you can check what's happening there on your Google Nest Hub or Chromecast-enabled TVs.

You will be able to control the Duo 2 PoE with your voice. Simply ask Alexa to show your camera's video on Echo Spot, Echo Show, or Fire TVs.

Coming soon...

* This feature is not available when camera is connected to NVRs.

Different Versions Satisfy Different Needs

We provide 4 different versions in the Duo 2 series—Duo 2 PoE, Duo 2 WiFi, Duo 2 (WiFi battery camera), Duo 2 LTE (cellular battery camera)—to meet your need in different environments.

  • Supports 5/2.4GHz dual-band WiFi and just needs a power cord.

    Reolink Duo 2 WiFi
  • 100% wireless, affordable, and portable to safeguard your home.

    Reolink Duo 2 (Coming Soon)
  • Battery-powered mobile 4G camera especially ideal for outdoor use.

    Reolink Duo 2 LTE (Coming Soon)


What’s in the Box & Setup Guide (with Video) What's in the Box

*The data on the pages above are obtained under specific test conditions. Actual use may vary.
