RLK16-410B8

24/7 Stay Protected in 5MP/4MP Super HD

Power over Ethernet
With 16-Channel NVR
4TB HDD Built-in
Audio Recording

Super HD 5MP/4MP High Resolution

RLK16-410B8 has versions of 5MP and 4MP:

5MP RLK16-410B8 with a pixel resolution of 2560x1920, that is, nearly 2.4X the resolution of 1080p Full HD, and even 1.3X the resolution of 1440p. It sees and records your home security more clearly, with more details.

4MP RLK16-410B8 with 2560x1440 high resolution to provide incredibly bright and sharp images in real color, which enables you to see all objects very clearly.

The video shared by Neil B., a Reolink customer.

PoE — Easy Setup, Even for a Beginner

A real plug and play security system! This RLK16-410B8 system features PoE (Power over Ethernet), with a single network cable connecting each of your IP cameras to the NVR for both power supply and video signal transmission. Easy wiring – the wiring process can’t be simpler for DIY enthusiasts.

Unfailing 24/7
Recording

  • Pre-installed 4TB HDD for 24/7 recording (support up to 4TB).
  • Support all cameras recording at the same time (up to 16 cameras).
  • The motion detection recording function will trigger recording only when motion is detected. It’s much flexible and helpful for longer recording.
  • You can install an external hard disk drive via e-SATA for more storage (up to 4TB).
  • Pre-installed

    4TB

    Seagate HDD

  • Up to

    16

    Cameras

  • Up to

    4TB

    External HDD

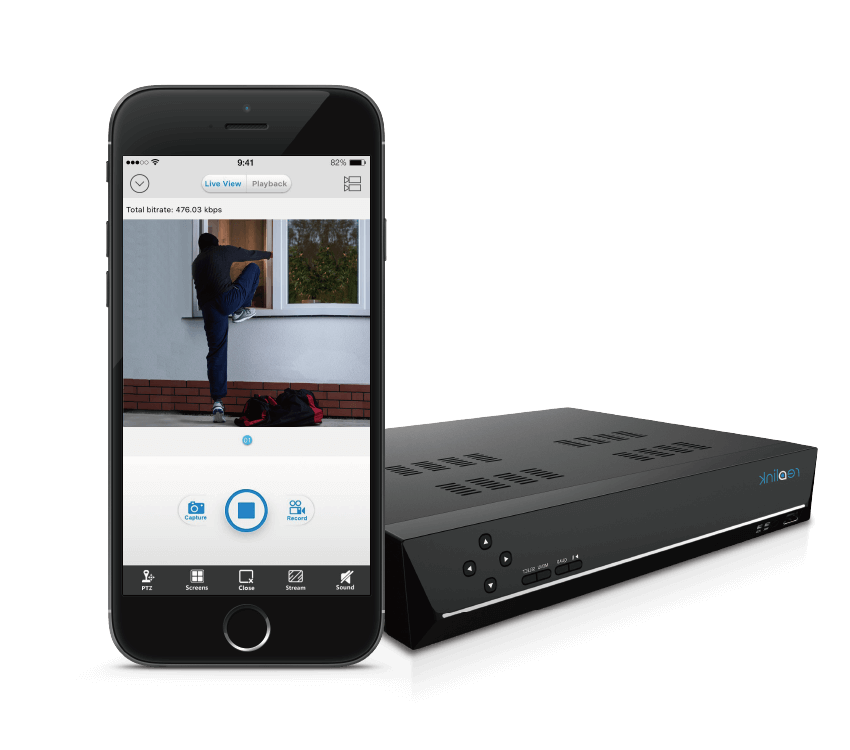

Instant Motion Detection Triggers Rich Alerts

Intelligently detect moving objects in the monitoring areas, and trigger alerts when it detects burglars. It will inform you instantly.

Email

Email photos or
30-second video clips

App

Push notifications to
your mobile device

FTP

Save and upload captured images & videos to an FTP server

Buzzer

The buzzer in NVR
makes sound warning

Optional for Local
and Remote Viewing

For local access and control

Connect the system to a monitor or an HD TV.

For remote access and control

Get live streaming via free Reolink App on iOS & Android devices, through free Reolink Client software on Windows PCs & Mac computers, or via web browsers.

Only 3 steps to use Reolink App/Client

install-app
Install

Download and install
the free software

launch
Launch

Open to add the system

view-camera
View

Start the Live View

High Quality Night Vision with IR Technology

The 5MP/4MP cameras ensure a high quality night vision, up to 100 feet long distance, with plenty LED lights and improved infrared radiation for 24-hour vigilance. If you want a night vision security camera system, this is a good choice.

  • Plenty

    Infrared LEDs

  • 100feet

    Night vision*

  • 80°

    Viewing angle*

Flexible Video Playback

As one of the outstanding features of the Reolink RLK16-410B8 16 channel PoE security camera system, the playback feature allows you to know the whole events.

  • Replay significant evidence or funny video records.
  • 4-channel simultaneous playback.
  • Quick search for any event that happened at any time.
  • Freely playback any event on days, hours and even minutes with the help of timer axis under the split screen.

Work with Various Reolink IP Cameras

This Reolink PoE NVR system works perfectly with all our 5MP/4MP PoE IP cameras for 24/7 recording, motion detections, live views, playback and more features.

Supported Reolink 5MP/4MP IP cameras include: RLC-410, RLC-511, RLC-420, RLC-422, RLC-423, etc.

* The Reolink NVRs are designed for Reolink security cameras ONLY.

Quick and Easy Video Data Backup

*Data based on internal lab testing.

Comparison

What’s in the Box & Setup Guide (with Video) What's in the Box

Please note: The cameras of the kit cannot work without the NVR.

*The data on the pages above are obtained under specific test conditions. Actual use may vary.

Hardware

Hardware

V2

Video/Audio Input

IP Video Input

PoE IP camera x 16

Audio Input

Cameras with built-in mic

Video/Audio Output

Video Output

VGA, HDMI

Display Resolution

• HDMI: 3840*2160, 1920*1080, 1280*1024, 1280*720, 1024*768

• VGA: 1920*1080, 1280*1024, 1280*720, 1024*768

Audio output

1-channel, RCA

Decoding

Live View/Playback
Resolution

4096*3072/3840*2160/2560*1920/2560*1440/2048*1536/2304*1296/1080p/720p

Video Format

H.265, H.264

Synchronous Playback

Up to 4 channels

HDD

SATA

2 x SATA interface (1 x 4TB HDD included)

Capacity

Up to 12TB (max. 6TB capacity for each HDD)

External HDD

No

External Interface

USB Interface

2 x USB 2.0

Network Interface

• 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface for LAN/WAN

• 16, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera

PoE

Max. Power Per Port

25W

Supported Standard

IEEE 802.3 af/at

Network

Network Protocol

HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP

Browser Supported

Firefox, Chrome, Edge, Safari

OS Supported

PC: Windows, Mac OS; smartphone: iOS, Android

Max. User Access

20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

General

Power Supply

DC 48V~54V

Power Consumption

<10W (without HDD & PoE)

Working Environment

Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90%

Dimensions

330 x 45 x 285mm

Weight

2.4kg

Warranty

Limited Warranty

2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/.

Note:

The cameras of the kit cannot work without the NVR.

Camera

Image Sensor

1/2.7" CMOS Sensor (B500); 1/3" CMOS Sensor (B400)

Effective Pixels

B500: 2560x1920(5.0 Megapixels); B400: 2560x1440 (4.0 Megapixels)

Lens

f=4.0 mm Fixed, F=2.0

Angle of View

Horizontal: 80°, Vertical: 58°(B500); Vertical: 42°(B400)

Day/Night Mode

Auto Switchover

Min. Illumination

0 Lux (With IR Illuminator)

IR Distance

30 Meters (100ft)(LED: 18pcs/14mil/850nm)

Backlight Compensation

Support

Noise Reduction

3D DNR

Video

Compression

H.264

Resolution

• B500: Mainstream: 2560x1920, 2560x1440, 2048x1536, 2304x1296; Substream: 640x480

• B400: Mainstream: 2560x1440, 1080p, 720p; Substream: 640x360

Bitrate

• B500: Mainstream: 1024Kbps~8192Kbps; Substream: 64Kbps~512Kbps

• B400: Mainstream: 1024Kbps~6144Kbps; Substream: 64Kbps~512Kbps

Frame Rate

Mainstream@30fps, Substream@7fps

Audio

Interface

Built-in Microphone

Network

Interface

One 10M/100Mbps RJ45

General

Power Supply

DC12V & PoE (IEEE 802.3af 48V Active)

Power Consumption

<10W(B500); <8W(B400)

Working Environment

-10°C~+55°C (14°F~131°F), Humidity: 10%~90%

Ingress Protection

IP66

Dimension

Φ67x186 mm

Weight

350g(B500); 415g(B400)

Warranty

Limited Warranty

2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/.

The above data are provided by internal laboratories, and are obtained under specific test conditions. Actual use may vary due to settings, use conditions and environmental factors.
