RLC-511

Reliable 5MP PoE Camera Protects You Inside & Out

4X Optical Zoom
Power over Ethernet
100ft Night Vision*
IP66 Waterproof

5 Megapixels Super HD: Clearer Images & More Details

The higher the camera resolution is, the more image details you’ll obtain. RLC-511 PoE security IP camera prides in the high resolution of 2560x1920, which is about 2.4X the resolution of 1080p, and even 1.3X the resolution of 1440p Super HD. It ensures true-color images with vivid details.

Reolinkのお客様であるMétéo P.さんがシェアした動画です。

4X Optical Zoom for More Visibility

This bullet PoE security camera features a motorized varifocal lens that makes for the viewing angle of 31°~90°*. Thanks to the 4X optical zoom, you can zoom in on a small area in astonishing details or zoom out for maximum coverage, without reducing the image resolution or quality.

31°-90°

Viewing angle*

2.7 mm - 12 mm

Motorized lens

31°-90°

Viewing angle*

2.7 mm - 12 mm

Motorized lens

Smart Motion Detection & Intelligent Alerts

Reolink RLC-511 PoE IP camera stands guard keenly day and night. Whenever motion is detected, it will send you instant push notifications, email photos and video clips, enabling you to see in real-time what’s happening and take responsive action.

You can also customize specific motion zones or detection sensitivity to receive the wanted alerts and avoid the unwanted.

kit-email kit-app kit-ftp kit-sdKard

Email

Email photos
or 30-second video clips

App

Push notifications to your
mobile device

FTP

Save and upload captured images
& videos to an FTP server

SD Card (Optional)

Record motion events to the SD card you inserted (up to 128GB)

PoE – Faster, Simplified & Lower-Cost Installation

Save your time and cost with a simple setup process! With Power over Ethernet (PoE), this outdoor bullet security camera can transmit videos and get power via only one network cable. As a result, the camera installation can be accomplished quickly and painlessly at lower cost.

Remote Access Lets You Be There, Even You're Not

Distance should never be a problem, especially for your security. Remote access makes it a reality for you to watch live viewing videos and monitor your property without actually being there. You can view this surveillance camera remotely via free Reolink App, free Reolink Client, and web browsers (Google Chrome, Microsoft Edge, Safari, Firefox, etc.).

macOS用ダウンロード Windows用ダウンロード

3 Easy Steps for Successful Remote Viewing on Phones

  • 1

    アプリのインストール

    無料のアプリをスマートフォンにインストールします。

  • 2

    スキャン

    スキャンしてReolink IPカメラを自動的に追加します。

  • 3

    カメラの表示

    ネットワークカメラをクリックして、ライブビューを表示します。

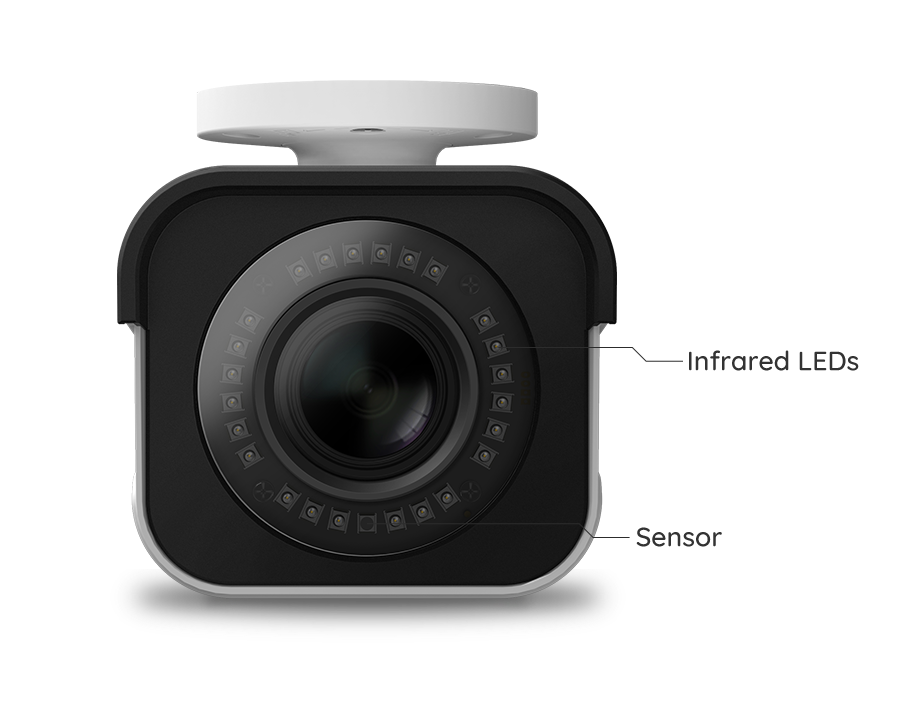

Clear and Long-Distance Night View

Relying on the 24pcs infrared LEDs and advanced IR technology, this 5MP outdoor PoE IP camera features a night vision range of up to 100 feet. Clearer night vision also offers you the best chance to pinpoint small details, even in total darkness.

24 pcs

Infrared LEDs

100 feet

Night vision*

31°-90°

Viewing angle*

Waterproof Enough for Anywhere Outside

Feel free to put RLC-511 PoE video surveillance camera anywhere, outdoors and indoors! With IP66 waterproof rating, this outdoor security camera will never shrink back in front of the elements, like freezing rain, heavy snow, extreme cold and heat.

Feel free to put RLC-511 PoE video surveillance camera anywhere, outdoors and indoors! With IP66 waterproof rating, this outdoor security camera will never shrink back in front of the elements, like freezing rain, heavy snow, extreme cold and heat.

IP66 Certified Weatherproof

24/7 or Motion Recording, You Decide

This IP camera supports both motion-activated recording and continuous recording. 24/7 recording is ideal in high-traffic areas like store entrances, while in lower activity regions like warehouses or at night, motion recording can help you save storage space.

Motion Clips in microSD Card

Supports up to 128GB microSD card (not included).

12.1
時間

32GB

24.2
時間

64GB

48.5
時間

128GB

カメラのデフォルトビットレート(6144 kbps)に基づきます。 実際の録画時間は設定によって異なる場合があります。 詳細はこちら

Continuous Recording

This 5MP PoE security camera can record continuously when you connect the cam to a Reolink NVR or video surveillance system, or set up FTP server to save videos without missing a beat.

• FTP server

• Reolink NVR

* When you plan to buy an NVR, recommended to use Reolink NVR for best compatibility.

Free Firmware Update — Easy, Quick and Flexible

Reolink firmware update for IP security cameras is very easy – download firmware on the firmware page and update the firmware on the client software. All is free! Learn more

他の製品と比較する

同梱品一覧 同梱物とセットアップガイド(ビデオ付き) 同梱品一覧

*上記ページのデータは、特定の試験条件で得られたものです。実際の使用状況とは異なる場合があります。

カメラ

イメージセンサー

1/2.7" CMOSセンサー

有効画素数

2560 x 1920 (5.0 メガピクセル)

レンズ

f=2.7-12mmオートフォーカス、F=1.6

光学ズーム

4X

視野角

水平方向: 90° ~ 31°、垂直方向: 67° ~ 24°

デー・ナイトモード

IRカットフィルターによる自動切換え

最低照度

0ルクス (IR照明器付き)

赤外線ナイトビジョン

最大30m (100ft)まで (LED: 24個/14mil/850nm)

逆光補正

3D DNR

ビデオ

動画圧縮

H.264

解像度

メインストリーム: 2560x1920, 2560x1440, 2048x1536, 2304x1296; サブストリーム: 640x480

ビットレート

メインストリーム: 1024Kbps ~ 8192Kbps、サブストリーム: 64Kbps ~ 512Kbps

フレームレート

メインストリーム@30fps、サブストリーム@7fps

オーディオ

インタフェース

内蔵マイク

ネットワーク

インタフェース

10M/100Mbps RJ45 × 1

標準プロトコル

HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

サポートされるブラウザ

Edge, Chrome, Firefox, Safari

サポートされるOS

PC: Windows, Mac OS; スマートフォン: iOS, Android

ユーザーアクセスの最大限

20ユーザー(1つの管理者アカウントと19のユーザーアカウント)、最大同時に12のビデオストリームをサポート(10のサブストリームと2のメインストリーム)

ストーレジ

マイクロSDカードスロット(最大128GB)

一般

電源供給

DC12V & PoE (IEEE 802.3af)

電力消費

<12W

作業環境

-10℃~+55℃ (14°F~131°F)、10%~90%

侵入保護等級

IP66

サイズ

80x72x238mm

重量

750g

保証

限定保証

2年間限定保証 。サポートについては、 下記のリンクを参照してください:
https://support.reolink.com/hc/en-us/
