B400

4MP PoE Security Add-on Camera

Power over Ethernet
Audio Recording
IP66 Waterproof
Motion Detection

Compatibility

B400 cannot work independently. It works perfectly when connected to Reolink 8-channel NVR RLN8-410, 16-channel NVR RLN16-410, or Reolink PoE surveillance systems.

4 Megapixels Super HD

4MP B400 with 2560x1440 high resolution to capture beautiful and smooth 4-megapixel live video streaming and video clips than 720p and 1080p cameras. No details will be missed!

Reolinkのお客様であるDarryl Mさんがシェアした動画です。

An Excellent Night Vision Camera

Great cameras aren't just measured by images in daytime. Reolink B400 security camera stands out for its incredibly excellent images at night.

18pcs Infrared LEDs enable long night vision distance (up to 100ft). B400 HD infrared night vision surveillance camera captures crystal clear video evidence of theft and vandalism that occur in low-light conditions where standard security cameras won't work.

  • 18pcs

    Infrared LEDs

  • 100feet

    Night vision*

  • 80°

    Viewing angle*

Motion Detection — Smartest Way for Alerts

Whenever a danger is detected, this IP surveillance camera will trigger alerts by immediately sending alert e-mails and pushing notifications to your device. It also captures and saves images/videos at the same time.

You can create specific motion detecting zones to monitor or NOT monitor certain areas as you want.

You can adjust motion detection sensitivity to reduce false alerts.

kit-email kit-app

Email

Email photos or
30-second video clips

App

Push notifications to
your mobile device

Only 3 Simple Steps

Use Reolink App and Client to Access the Camera

Install

Install free Reolink software on your device

Launch

Open to add the NVR and camera

View Camera

Click the camera to get Live View

Remote Access Has Never Been So Easy

Free Reolink App

Get live streaming and other control on your iOS or Android mobile device, so you stay informed whenever there is a thing.

Free Reolink Client software

View live feed, do 24/7 recording, playback video, and control several cameras directly on your PC or Mac.

Browsers

カメラをReolink NVRに接続すると、Google Chrome、FirefoxなどのWebブラウザでカメラにアクセスできます。

You can stay connected from anywhere, and if there is a thing happening, you will receive emails and notifications, alerting you to dealing with the emergency timely.

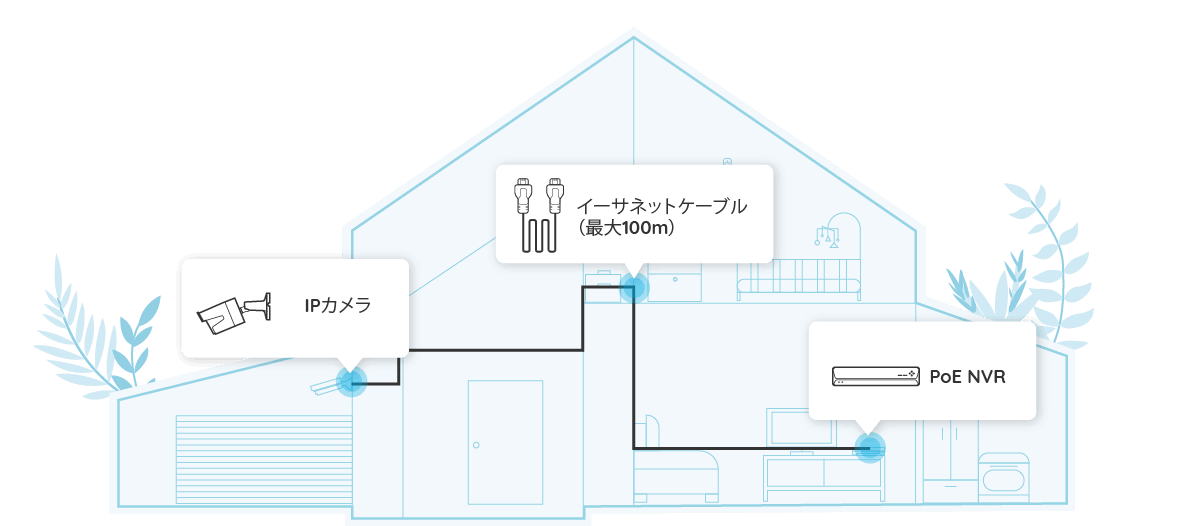

PoE Makes Easier Wiring and Installation

The Power over Ethernet (PoE) is an advanced technology, which enables you to use a single network cable for both video and power transmission. Therefore, B400 PoE HD security IP camera makes the wiring simplified and installation easier. The best choice for DIY enthusiasts!

Easy PoE Security Camera 4K Ultra HD Surveillance Camera

PoEカメラ
ネットワークケーブルのみが必要です

PoE防犯カメラ

非PoEカメラ
ネットワークケーブルと電源アダプタの両方が必要です

非PoE防犯カメラ

Waterproof Work Perfectly Outdoor as Well as Indoor

Reolink B400 outdoor and indoor IP home surveillance camera is with an IP66 waterproof rating. So you can feel free to install it outdoors, like in your garage, backyard, or anywhere else. It can stand harsh weather conditions, including rain, snow, intense cold and heat.

Free Firmware Update — Easy, Quick and Flexible

Reolink firmware update for IP security cameras is very easy – download firmware on the firmware page and update the firmware on the client software. All is free! Learn more

Comparison

他の製品と比較する

他の製品と比較する

同梱品一覧 同梱物とセットアップガイド(ビデオ付き) 同梱品一覧

*上記ページのデータは、特定の試験条件で得られたものです。実際の使用状況とは異なる場合があります。

カメラ

イメージセンサー

1/3" CMOSセンサー

ビデオ解像度

2560x1440 (4.0 メガピクセル)

レンズ

f=4.0 mm固定焦点、F=2.0

視野角

水平方向: 80°;垂直方向: 42°

デー・ナイトモード

自動切り替え

最低照度

0ルクス (IR照明器付き)

IR距離

最大30m(100ft)まで (LED: 18個/14mil/850nm)

逆光補正

サポート

ノイズ低減

3D DNR

ビデオ

動画圧縮

H.264

解像度

メインストリーム: 2560x1440, 1080p, 720p;サブストリーム: 640x360

ビットレート

メインストリーム: 1024Kbps~6144Kbps; サブストリーム: 64Kbps~512Kbps

フレームレート

メインストリーム@30fps; サブストリーム@7fps

オーディオ

インタフェース

内蔵マイク

ネットワーク

インタフェース

10M/100Mbps RJ45 × 1

標準プロトコル

SSL, TCP/IP, UDP, UPNP, NTP, DHCP, DNS, DDNS

一般

電源供給

DC12V & PoE (IEEE 802.3af 48V動作)

電力消費

<8W

作業環境

動作温度:-10°C~+55°C (14°F~131°F)、動作湿度: 10%~90%

侵入保護等級

IP66

サイズ

Φ67x186 mm

重量

415g

保証

限定保証

2年間限定保証 。サポートについては、 下記のリンクを参照してください:
