Reolink Floodlight

Bright Motion-Activated Security Floodlight

Motion Activated
Built-in Siren
Works With Security Cameras
PoE/WIFI Versions Available

*Data based on internal lab testing.

General

Light

40pcs, 18W, 4200K, 2000lm

Indicator light

Support

PIR

8m

CDS

Support

Power

POE

IEEE 802.3at, 48V Active

DC Power

DC 12.0V⎓2A, <25W

Interface

Power

DC power port

System

Reset Button

Ethernet

One 10M/100Mbps RJ45

Audio

Built-in Speaker( can only be triggered by link device)

Software Features

OS Supported

PC: Windows, Mac OS; Smartphone: iOS, Android

Smart Alarm

PIR

Maximal User Access

10 Users (1 admin account & 9 user accounts)

Work with

Google Assistant

Working Environment

Temperature

Operating Temperature: -10°C~+55°C (14°F~131°F)

Humidity

Operating Humidity: 10% ~ 90%

Waterproof

IP 65

Size & Weight

Dimension

216X118X160mm

Weight

635g

Warranty

Limited Warranty

2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/

General

Light

40pcs, 18W, 4200K, 2000lm

Indicator light

Support

PIR

8m

CDS

Support

Power

DC Power

DC 12.0V⎓2A, <25W

Interface

Power

DC power port

System

Reset Button

Ethernet

One 10M/100Mbps RJ45

Audio

Built-in Speaker( can only be triggered by link device)

Software Features

OS Supported

PC: Windows, Mac OS; Smartphone: iOS, Android

Smart Alarm

PIR

Maximal User Access

10 Users (1 admin account & 9 user accounts)

Work with

Google Assistant

Wi-Fi

Wireless Standard

IEEE 802.11b/g/n

Operating Frequency

2.4GHz

Wireless Security

WPA-PSK/WPA2-PSK

Working Environment

Temperature

Operating Temperature: -10°C~+55°C (14°F~131°F)

Humidity

Operating Humidity: 10% ~ 90%

Waterproof

IP 65

Size & Weight

Dimension

216X118X160mm

Weight

630g

Warranty

Limited Warranty

2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/

The above data are provided by internal laboratories, and are obtained under specific test conditions. Actual use may vary due to settings, use conditions and environmental factors.

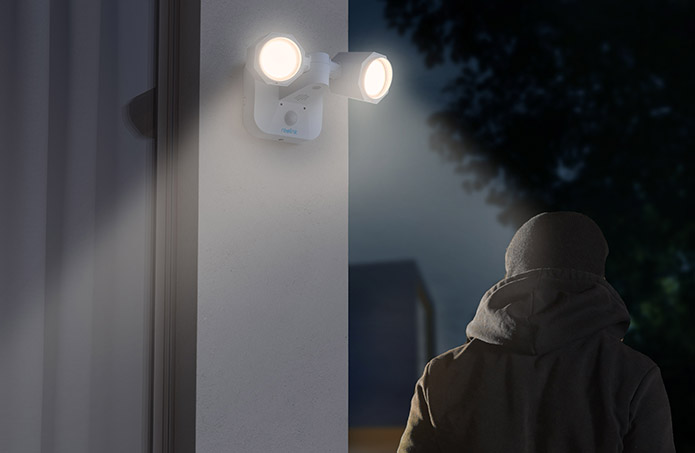

Powerfully Bright at Night

Reolink Floodlight is a motion-activated outdoor security floodlight of 2000 lumens and 4200K. The ultra-bright floodlight can illuminate a larger area such as your backyard and garage for greater safety at night. It saves more than 80% of electric bills compared to the traditional 175W halogen light.
With IP65 rating, Reolink Floodlight can withstand heavy rain, snow, storms, and other severe weather. Ideal for use in various places.

Reolink Floodlight is a motion-activated outdoor security floodlight of 2000 lumens and 4200K. The ultra-bright floodlight can illuminate a larger area such as your backyard and garage for greater safety at night. It saves more than 80% of electric bills compared to the traditional 175W halogen light.
With IP65 rating, Reolink Floodlight can withstand heavy rain, snow, storms, and other severe weather. Ideal for use in various places.

IP65 Waterproof

Three Lighting Modes

Equipped with an advanced light sensor, the powerful security floodlight has three lighting modes for your different needs.

Smart Night Mode (Default)

Reolink Floodlight will run in its default lighting mode if it has never been set up before. The floodlights stay off during the day, and only turn on when the PIR alarm is activated at night and then turn off when the alarm ends.

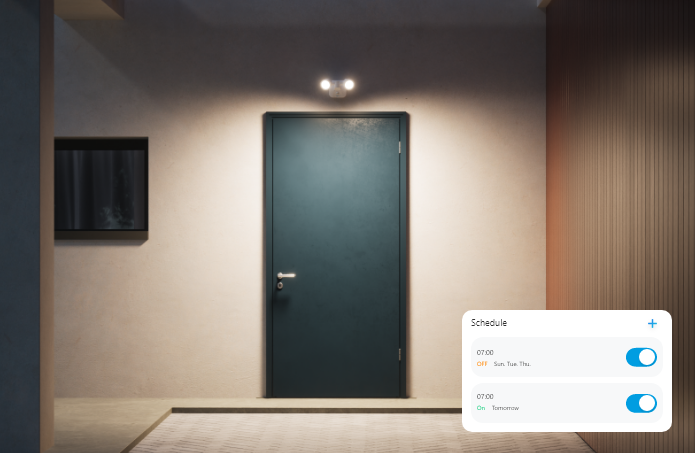

Scheduled Mode

You can set the time for the floodlights to turn on/off automatically with a customized routine.

Auto-On Mode

With its light sensor, the floodlight can sense lighting conditions, and will turn on automatically only when it's dark. In this mode, you can set a brighter light for when an alarm is triggered to deter suspicious people.

Works with Security Cameras

  • Reolink Floodlight can be linked to Reolink cameras. If the camera detects an event, its floodlights and built-in siren will be triggered.
  • You can schedule the time when the alarm will be triggered and adjust the linkage actions based on different events.
  • You can set alarms with your own voice for different scenarios.
  • Events that can trigger linkage actions include: sunrise and sunset (automatic switching with IR-CUT filter), person/vehicle detection, motion detection, pet detection (beta), and PIR detection.
Note: This feature is only supported by some Reolink cameras. And the specific functions supported depend on the camera.
PoE Version
WiFi Version

Different Charging Methods

Reolink Floodlight is available in PoE and WiFi versions with different charging methods. Compared to conventional floodlights, it can be powered more easily and more efficiently.

PoE

Power over Ethernet (PoE) technology allows the floodlight to transmit network signals and be charged simultaneously by connecting it to an NVR or PoE switch with only one network cable.

Note: You're recommended to connect the floodlight to an 802.3at (PoE+) compliant PoE switch or Reolink NVR. Otherwise, it might not work properly.

Power Cable

Reolink Floodlight can be charged via a power cable. Also, a separate network cable is required for network connection.

Power Cable

Reolink Floodlight can be charged via a power cable. You can use WiFi for network connection.

Easy Customization

You can easily customize key features of Reolink Floodlight to your preference for various needs.

  • Angle Manually, you can adjust the heads to any direction with an extension of up to 240° horizontally.
    Note: You can only manually adjust the angle.
  • Brightness
  • Volume

Comparison

What’s in the Box & Setup Guide (with Video) What's in the Box

*The data on the pages above are obtained under specific test conditions. Actual use may vary.
