RLK8-820D4-A

Security Kit in 4K UHD with Smart Person/Vehicle Detection

Person/Vehicle Detection
Power over Ethernet
8-Channel NVR
2TB Built-in HDD

Person/Vehicle Detection: Smarter 24/7 Protection

RLK8-820D4-A with person/vehicle/pet detection can discern people, vehicles, adn pets from other objects, ignoring trivial movements of leaves and bugs. No more false alarms and unnecessary notifications. Also, with 24/7 continuous recording & 4K UHD, this security camera offers you worryless and ceaseless protection.

Flawless Video in 4K Ultra HD

Home security jumps from 5MP to 4K Ultra HD – 1.6X clearer than Super HD and 4X clearer than 1080p HD. Details you see around home or store will be reproduced perfectly in live streaming and playback.

  • Audio recording
  • 87° viewing angle*

The video shared by Mike M., a Reolink customer.

Ultra-Clarity at Night

The 18pcs powerful infrared LEDs in each camera emit invisible lights that pierce the darkness up to 100 feet. Day and night, this security camera system protects your property. A peaceful night sleep can be easily enjoyed now.

  • 18 IR LEDs
  • 100ft night vision*

Easy Setup with PoE Technology

This 4K security camera system features PoE (Power over Ethernet) tech, with only one cable connecting each IP camera to the NVR for both power supply and video signal transmission. A real plug and play security system!

Easy PoE 4K AI-Powered Security Camera System 4K PoE Person Detection Vehicle Detection Security Camera

PoEカメラ
ネットワークケーブルのみが必要です

PoE防犯カメラ

非PoEカメラ
ネットワークケーブルと電源アダプタの両方が必要です

非PoE防犯カメラ

Continuous 24/7 Recording

With the 2TB HDD and the storage capacity of up to 12TB, the PoE video surveillance kit supports all cameras to record continuously at the same time. You will have all-day videos without missing a beat.

  • Built-in Seagate 2TB HDD
  • Up to 12TB

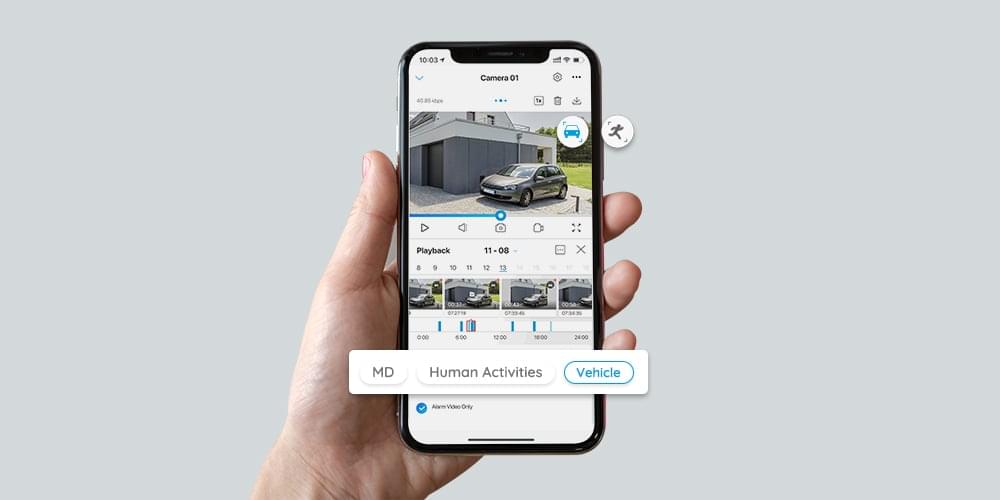

Access Your Camera, Anywhere and Anytime

Stay connected with your home or business on the go. See live streaming, replay key moments or check on motion alerts with just a few clicks on Reolink App or Client.

  • Motion Alerts Informs you when the cam spots the movement via push notifications, emails, or buzzer alarm in the NVR.
  • Multi-Cam Live Feed See the live feed of multiple cams on the same screen. Easier to have an overview of your property.
  • Playback Videos can be stored in the NVR or FTP server. With our intuitive App/Client, you can easily find, replay or download any footages you want.
  • Record Scheduling You can set each cam respectively to record continuously, or when the motion is detected, or on your time schedule.
  • Motion Zone Define a specific area and let the cam only detect activities within it, and trigger alerts that really matter.

Work with Various Reolink IP Cameras

This security camera system can be expanded up to 8-camera kit with Reolink IP cameras - bullet, dome or PTZ; 12MP, 8MP, 5MP, or 4MP – to cover every corner in your home, store or factory.

* For best compatibility, Reolink cameras are recommended.

  • 簡単に設置可能、4Kウルトラ超鮮明なビデオを提供

    PoE IPカメラ
  • デュアルバンドWiFi、スーパーHDワイヤレスセキュリティ監視を実現

    WiFi防犯カメラ

Ready for Anywhere, Inside & Outside

Feel free to put these 4K Ultra HD smart PoE cameras anywhere, outdoors or indoors. With IP67 waterproof rating, these cameras will never shrink back in front of the elements, like freezing rain, heavy snow, extreme cold and heat.

Feel free to put these 4K Ultra HD smart PoE cameras anywhere, outdoors or indoors. With IP67 waterproof rating, these cameras will never shrink back in front of the elements, like freezing rain, heavy snow, extreme cold and heat.

他の製品と比較する

同梱品一覧 同梱物とセットアップガイド(ビデオ付き) 同梱品一覧

注:キットのカメラは、NVRなしでは動作できません。

*上記ページのデータは、特定の試験条件で得られたものです。実際の使用状況とは異なる場合があります。

ハードウェア

ハードウェア

V2

ビデオ/オーディオ入力

IPビデオ入力

PoE IPカメラ8台

オーディオ入力

カメラにマイクを搭載

ビデオ/オーディオ出力

ビデオ出力

VGA、HDMI

画面解像度

• HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768

• VGA: 1920x1080, 1280x1024, 1280x720, 1024x768

オーディオ出力

1CH RCA

デコーディング

ライブビュー/再生解像度

4096x3072, 3840x2160, 2560x1920, 2560x1440, 2048x1536, 2304x1296, 1080p, 720p

ビデオフォーマット

H.265/H.264

同期再生

最大4チャンネル

ストーレジ

SATA

SATAインターフェイス×1 (2TB HDD×1を含む)

容量

最大12TB (各HDDの最大容量は6TB)

外付けHDD

HDD用eSATAインターフェース×1

外部インターフェース

USB インターフェース

2 x USB 2.0

ネットワーク・インターフェース

• LAN/WAN用RJ-45 10/100/1000 Mbps独立のイーサネットインターフェース1個

• IPカメラ用RJ-45 10/100 Mbps独立のPOEイーサネットインターフェース8個

PoE

ポートあたりの最大電力

25W

サポートされる規格

IEEE 802.3af/at

ネットワーク

ネットワークプロトコル

HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP

サポートされるブラウザ

Edge, Firefox, Chrome, Safari

サポートされるOS

PC: Windows、Mac OS; スマートフォン: iOS、Android

最大ユーザーアクセス

20ユーザー(1つの管理者アカウントと19のユーザーアカウント)、最大同時に12のビデオストリームをサポート(10のサブストリームと2のメインストリーム)

一般

電源

DC 48V ~ 53V

消費電力

<10W (HDD&PoEを除く)

作業環境

動作温度: -10°C~+45°C (14°F~113°F); 動作湿度: 10%~90%

サイズ

260(W) x 41(H) x 230(D)

重量(HDDを除く)

1.4kg

保証

限定保証

2年間限定保証 。サポートについては、 下記のリックを参照してください:https://support.reolink.com/hc/en-us/

キットのカメラは、NVRなしでは動作できません。

ビデオとオーディオ

イメージセンサー

1/2.49" CMOSセンサー

ビデオ解像度

デフォルト: 3840X2160 (8.0メガピクセル) 、25フレーム/秒

レンズ

f=4.0mm 固定焦点; F=2.0、IRカットフィルター付き

ビデオフォーマット

H.265

視野角

• 水平方向: 87°

• 垂直方向: 44°

デー&ナイト

IRカットフィルターによる自動切換え

ナイトビジョン

最大30m(100ft)まで (LED: 18個/14mil/850nm)

オーディオ

オーディオ録音

電源

PoE

IEEE 802.3af、48V動作

直流電源

DC 12.0V⎓1A, <12W

インタフェース

電源

DC電源ポート

システム

リセットボタン

イーサネット

10M/100Mbps RJ45 × 1

オーディオ

内蔵マイク

ソフトウェア機能

フレームレート

• メインストリーム: 2fps - 25fps (デフォルト: 25fps)

• サブストリーム: 4fps - 15fps (デフォルト: 10fps)

コードレート

• メインストリーム: 1024Kbps - 8192Kbps (デフォルト: 6144Kbps)

• サブストリーム: 64Kbps - 512Kbps (デフォルト: 256Kbps)

スマートアラーム

モーション検知・人体検知・車両検知・ペット検知(ベータ版)

録画モード

モーション検知録画 (デフォルト)・スケジュール録画・24時間365日持続録画

作業環境

温度

動作温度: -10°C ~ +55°C (14°F ~ 131°F)

湿度

動作湿度: 10% ~ 90%

防水性

IP66

サイズと重量

サイズ

Φ105*93mm

重量

467.5g

保証

限定保証

2年間限定保証 。サポートについては、 下記のリンクを参照してください:
https://support.reolink.com/hc/en-us/

ビデオ&オーディオ

イメージセンサー

1/2.8" CMOSセンサー

ビデオ解像度

3840 x 2160 (8.0 メガピクセル) 、20フレーム/秒

レンズ

f=4.0mm 固定焦点;F=2.0、IRカットフィルター付き

ビデオフォーマット

H.265

視野角

• 水平方向: 87°

• 垂直方向: 47°

デー&ナイト

IRカットフィルターによる自動切換え

ナイトビジョン

最大30m(100ft)まで (LED: 18個/14mil/850nm)

オーディオ

オーディオ録音

パワー

PoE

PoE IEEE 802.3af; 48V動作

直流電源

DC 12.0V ⎓ 1A; < 12W

インタフェース

電源

DC電源ポート

システム

リセットボタン

イーサネット

10M/100Mbps RJ45 × 1

オーディオ

内蔵マイク

ソフトウェア機能

フレームレート

• メインストリーム:2fps~20fps(デフォルト:20fps)

• サブストリーム:4fps~15fps(デフォルト:7fps)

コードレート

• メインストリーム:1024Kbps~ 8192Kbps(デフォルト:6144Kbps)

• サブストリーム:64Kbps~512Kbps(デフォルト:160Kbps)

スマートアラーム

モーション検知

逆光補正

サポート

ノイズ低減

3D DNR

作業環境

動作温度

-10°C~+55°C (14°F~131°F)

動作湿度

10% ~ 90%

防水性

IP66

サイズと重量

サイズ

Φ105*93mm

重量

385g

保証

限定保証

2年間限定保証 。サポートについては、 下記のリンクを参照してください:
https://support.reolink.com/hc/en-us/
